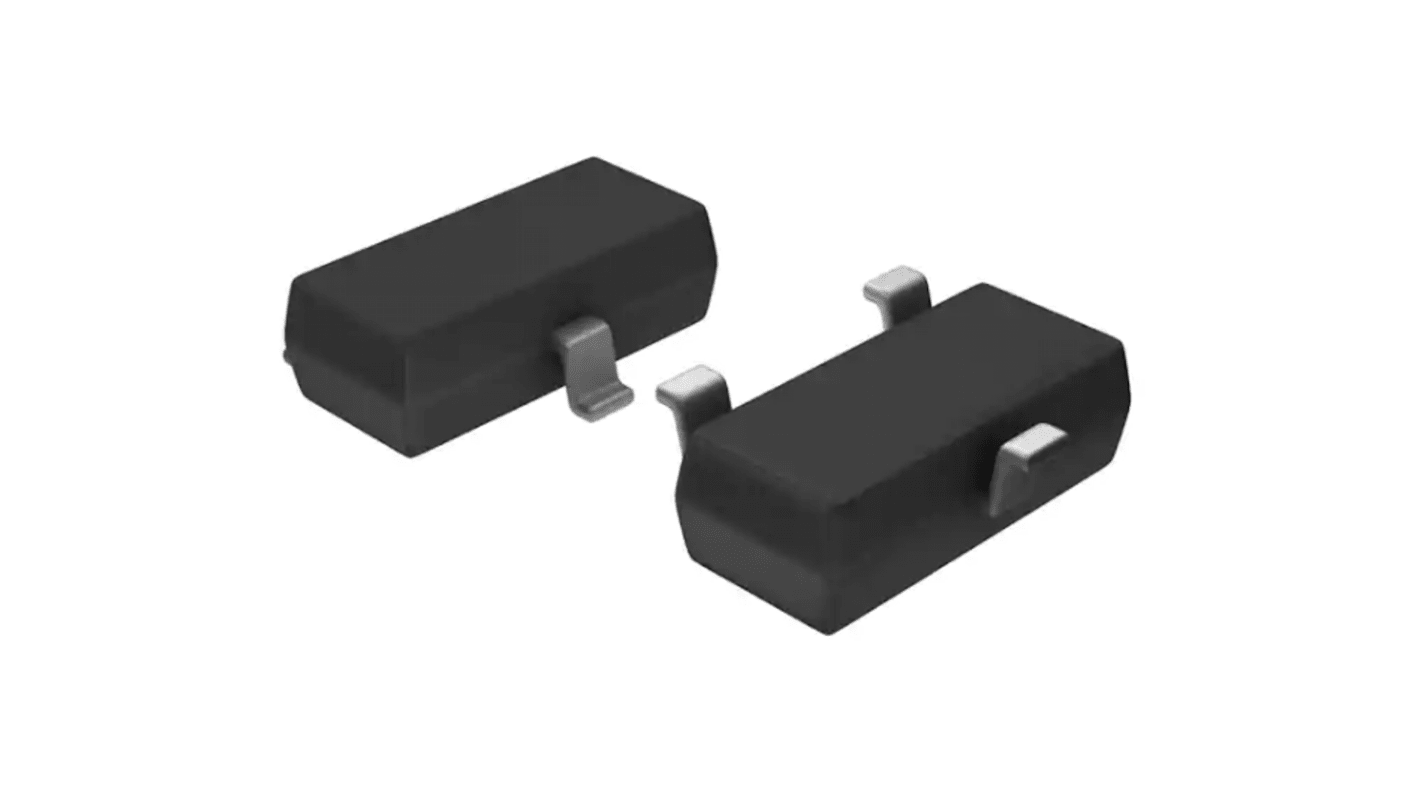

STMicroelectronics 40V 300mA, Dual Schottky Diode, 3-Pin SOT-23 BAT54SFILMY
- RS Stock No.:
- 189-4412
- Mfr. Part No.:
- BAT54SFILMY
- Brand:
- STMicroelectronics
Available to back order for despatch 09/04/2025
Added
Price Each (In a Pack of 50)
£0.206
(exc. VAT)
£0.247
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 200 | £0.206 | £10.30 |
| 250 - 450 | £0.196 | £9.80 |
| 500 - 1200 | £0.176 | £8.80 |
| 1250 - 2450 | £0.159 | £7.95 |
| 2500 + | £0.151 | £7.55 |
| *price indicative | ||
- RS Stock No.:
- 189-4412
- Mfr. Part No.:
- BAT54SFILMY
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
The BAT54 series use the 40 V Schottky barrier diodes packaged in SOT-23 and SOT-323. These devices are suitable for automotive applications.
Low conduction and reverse losses
Negligible switching losses
Low forward and reverse recovery times
Extremely fast switching
Surface mount device
Low capacitance diode
PPAP capable
Negligible switching losses
Low forward and reverse recovery times
Extremely fast switching
Surface mount device
Low capacitance diode
PPAP capable
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Maximum Continuous Forward Current | 300mA |
| Peak Reverse Repetitive Voltage | 40V |
| Diode Configuration | Series |
| Rectifier Type | Schottky Diode |
| Diode Type | Schottky |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 900mV |
| Number of Elements per Chip | 2 |
| Diode Technology | Schottky Barrier |
| Peak Reverse Recovery Time | 5ns |
