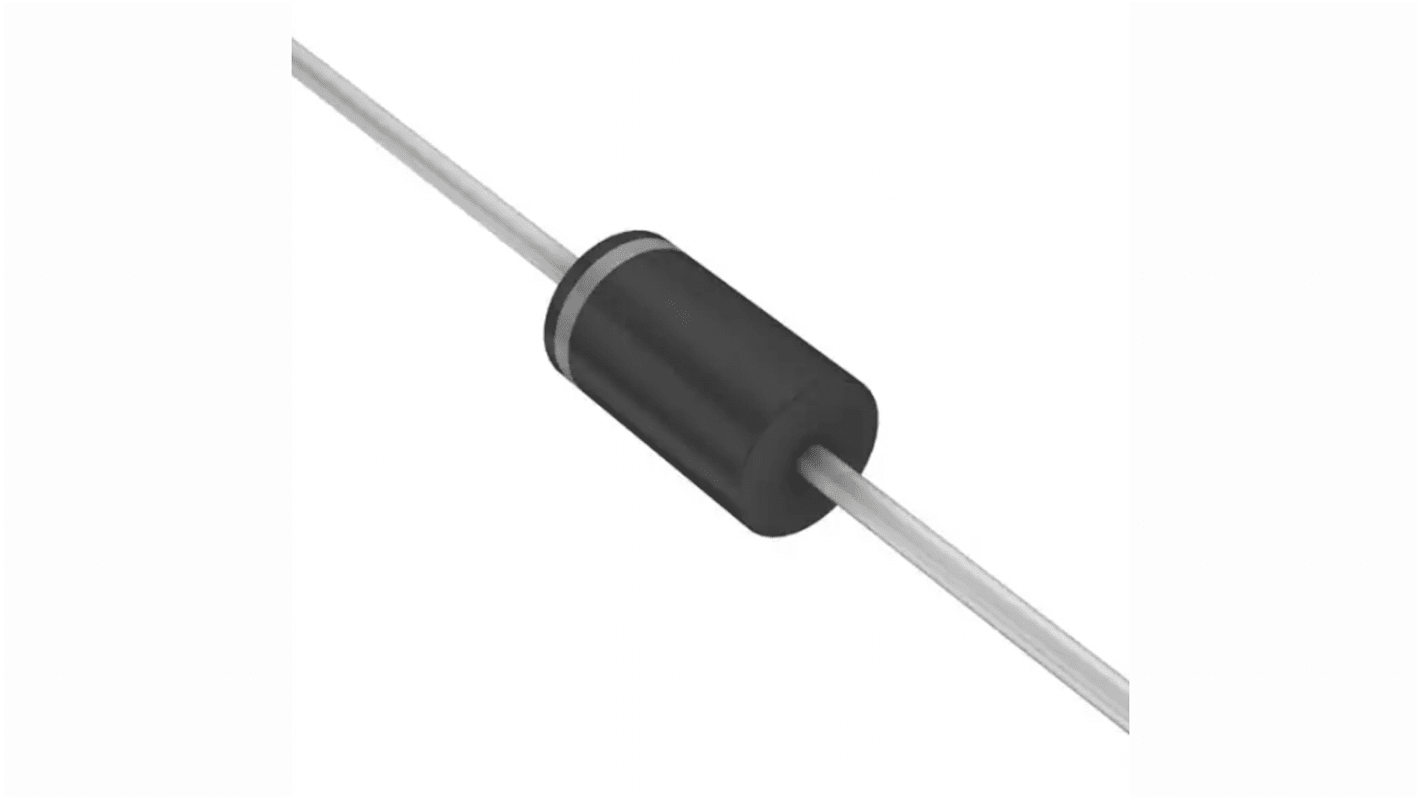

STMicroelectronics 600V 3A, Rectifier Diode, 2-Pin DO-201AD STTH3R06
- RS Stock No.:
- 189-4357
- Mfr. Part No.:
- STTH3R06
- Brand:
- STMicroelectronics
Subtotal (1 pack of 25 units)*
£6.60
(exc. VAT)
£7.925
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
25 + | £0.264 | £6.60 |
*price indicative
- RS Stock No.:
- 189-4357
- Mfr. Part No.:
- STTH3R06
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Through Hole | |
Package Type | DO-201AD | |
Maximum Continuous Forward Current | 3A | |
Peak Reverse Repetitive Voltage | 600V | |
Diode Configuration | Single | |
Rectifier Type | High Voltage | |
Diode Type | Rectifier | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 1.7V | |
Number of Elements per Chip | 1 | |
Peak Reverse Recovery Time | 30ns | |
Diameter | 5.3mm | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Through Hole | ||
Package Type DO-201AD | ||
Maximum Continuous Forward Current 3A | ||
Peak Reverse Repetitive Voltage 600V | ||
Diode Configuration Single | ||
Rectifier Type High Voltage | ||
Diode Type Rectifier | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 1.7V | ||
Number of Elements per Chip 1 | ||
Peak Reverse Recovery Time 30ns | ||
Diameter 5.3mm | ||
The STTH3R06, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, inverters and as a free wheeling diode.
Ultrafast switching
Low thermal resistance
Low forward voltage drop
Low leakage current (platinum doping)
Low thermal resistance
Low forward voltage drop
Low leakage current (platinum doping)
