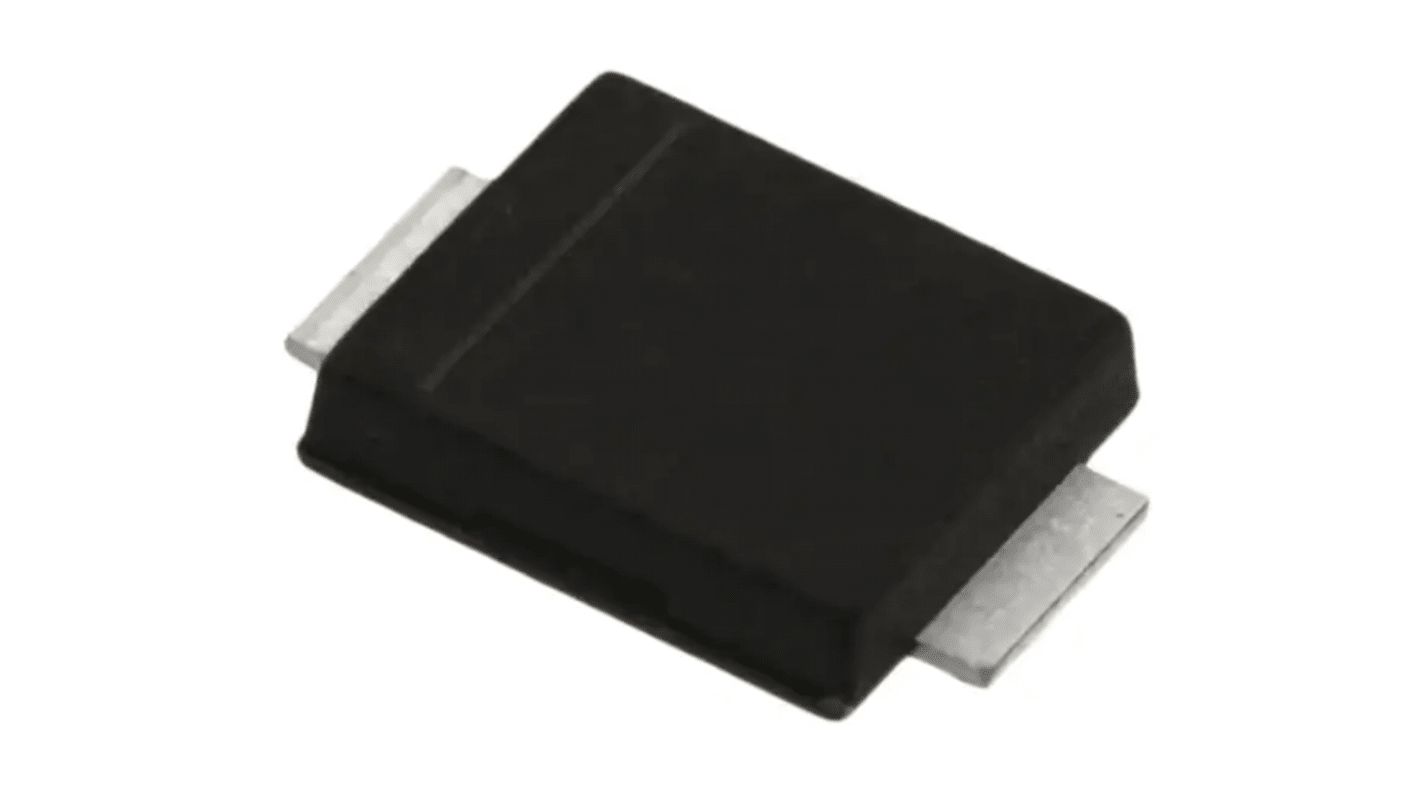

STMicroelectronics 200 V 4 A Diode Schottky 2-Pin SMB
- RS Stock No.:
- 189-3991
- Mfr. Part No.:
- STPS4S200UF
- Brand:
- STMicroelectronics
Subtotal (1 reel of 5000 units)*
£665.00
(exc. VAT)
£800.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.133 | £665.00 |
*price indicative
- RS Stock No.:
- 189-3991
- Mfr. Part No.:
- STPS4S200UF
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SMB | |
| Maximum Continuous Forward Current If | 4A | |
| Peak Reverse Repetitive Voltage Vrrm | 200V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 130A | |
| Maximum Forward Voltage Vf | 870mV | |
| Minimum Operating Temperature | -40°C | |
| Peak Reverse Current Ir | 2.5mA | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Width | 3.95 mm | |
| Length | 4.6mm | |
| Height | 1.1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SMB | ||
Maximum Continuous Forward Current If 4A | ||
Peak Reverse Repetitive Voltage Vrrm 200V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 130A | ||
Maximum Forward Voltage Vf 870mV | ||
Minimum Operating Temperature -40°C | ||
Peak Reverse Current Ir 2.5mA | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Width 3.95 mm | ||
Length 4.6mm | ||
Height 1.1mm | ||
Automotive Standard No | ||
This device is a 200 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in DPAK, SMC and SMBflat, this device is especially intended for use in low voltage, high frequency inverters, freewheeling and polarity protection. Also ideal for all LED lighting applications.
Negligible switching losses
High junction temperature capability
Very small conduction losses
Low leakage current
