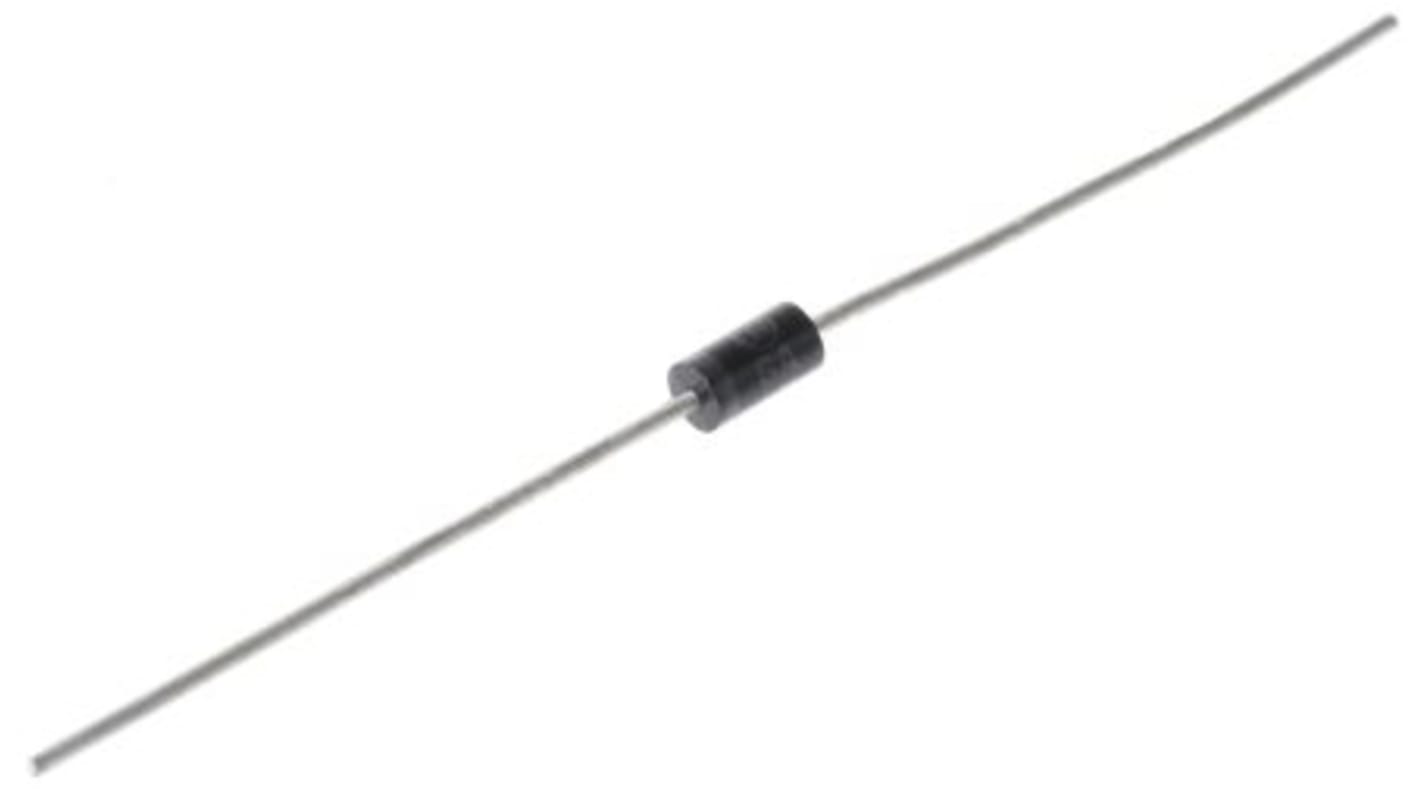

onsemi 60V 1A, Schottky Diode, 2-Pin DO-41 MBR160G
- RS Stock No.:
- 186-7481
- Mfr. Part No.:
- MBR160G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 bag of 1000 units)*
£104.00
(exc. VAT)
£125.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
1000 - 1000 | £0.104 | £104.00 |
2000 - 9000 | £0.092 | £92.00 |
10000 + | £0.091 | £91.00 |
*price indicative
- RS Stock No.:
- 186-7481
- Mfr. Part No.:
- MBR160G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Mounting Type | Through Hole | |
Package Type | DO-41 | |
Maximum Continuous Forward Current | 1A | |
Peak Reverse Repetitive Voltage | 60V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 2 | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky Barrier | |
Diameter | 2.7mm | |
Peak Non-Repetitive Forward Surge Current | 25A | |
Select all | ||
---|---|---|
Brand onsemi | ||
Mounting Type Through Hole | ||
Package Type DO-41 | ||
Maximum Continuous Forward Current 1A | ||
Peak Reverse Repetitive Voltage 60V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky Barrier | ||
Diameter 2.7mm | ||
Peak Non-Repetitive Forward Surge Current 25A | ||
ON Semiconductor Schottky Barrier Diodes
This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key.
Pb-Free
Designed for Optimal Automated Board Assembly
Stress protection guarding
Epoxy Moulded Case
Lightweight 11.7mg package
Designed for Optimal Automated Board Assembly
Stress protection guarding
Epoxy Moulded Case
Lightweight 11.7mg package
Standards
Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier¿s state-of-the-art geometry features epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low voltage, high frequency inverters, free wheeling diodes and polarity protection diodes.
Low Reverse Current
Low Stored Charge, Majority Carrier Conduction
Low Power Loss/High Efficiency
Highly Stable Oxide Passivated Junction
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 0.4 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead Surface Temperature for Soldering Purposes: 260 °C Max. for 10 Seconds
Shipped in plastic bags, 1000 per bag
Polarity: Cathode Indicated by Polarity Band
Marking: B150, B160
These are Pb-Free Devices
Low Stored Charge, Majority Carrier Conduction
Low Power Loss/High Efficiency
Highly Stable Oxide Passivated Junction
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 0.4 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead Surface Temperature for Soldering Purposes: 260 °C Max. for 10 Seconds
Shipped in plastic bags, 1000 per bag
Polarity: Cathode Indicated by Polarity Band
Marking: B150, B160
These are Pb-Free Devices
