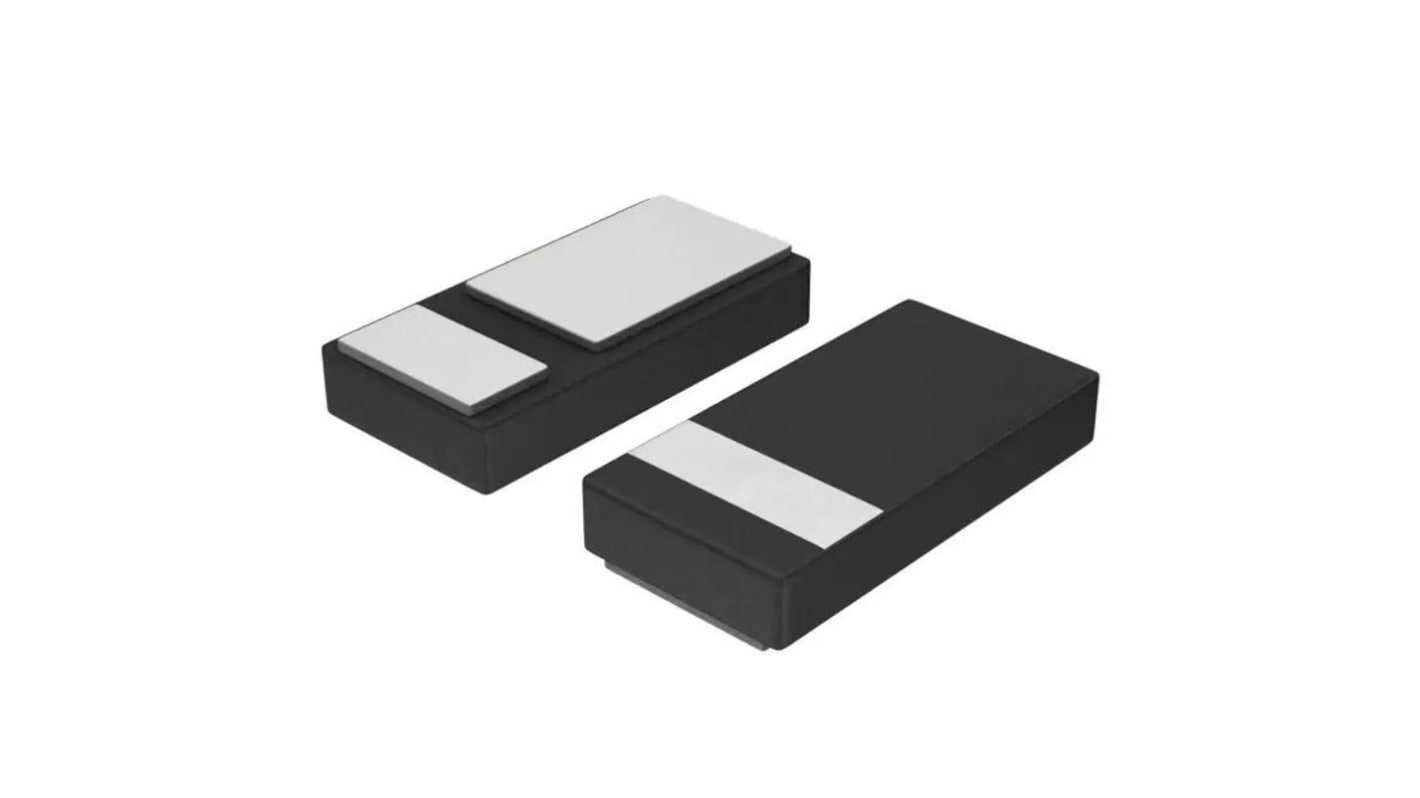

onsemi 30V 2A, Schottky Diode, 2-Pin DSN - 0603 NSR20F30NXT5G
- RS Stock No.:
- 184-1389
- Mfr. Part No.:
- NSR20F30NXT5G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 50 units)*
£16.35
(exc. VAT)
£19.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 - 450 | £0.327 | £16.35 |
500 - 950 | £0.282 | £14.10 |
1000 + | £0.244 | £12.20 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 5000)
£0.162
(exc. VAT)
£0.194
(inc. VAT)
- RS Stock No.:
- 184-1389
- Mfr. Part No.:
- NSR20F30NXT5G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Mounting Type | Surface Mount | |
Package Type | DSN - 0603 | |
Maximum Continuous Forward Current | 2A | |
Peak Reverse Repetitive Voltage | 30V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Diode | |
Diode Type | Schottky | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | -480mV | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky Barrier | |
Peak Non-Repetitive Forward Surge Current | 28A | |
Select all | ||
---|---|---|
Brand onsemi | ||
Mounting Type Surface Mount | ||
Package Type DSN - 0603 | ||
Maximum Continuous Forward Current 2A | ||
Peak Reverse Repetitive Voltage 30V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Diode | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop -480mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky Barrier | ||
Peak Non-Repetitive Forward Surge Current 28A | ||
The Schottky diode is optimized for low forward voltage drop and low leakage current and are offered in a Chip Scale Package (CSP) to reduce board space. The low thermal resistance enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements.
Very Low Forward Voltage Drop (VF)
Low Reverse Current (IR)
High ESD Ratings: HMB(3B), MM(C)
2.0 A of continuous forward current
Longer battery life
Applications:
LCD and Keypad Backlighting
Buck and Boost dc-dc converters
Reverse Voltage and Current Protection
Low Reverse Current (IR)
High ESD Ratings: HMB(3B), MM(C)
2.0 A of continuous forward current
Longer battery life
Applications:
LCD and Keypad Backlighting
Buck and Boost dc-dc converters
Reverse Voltage and Current Protection
