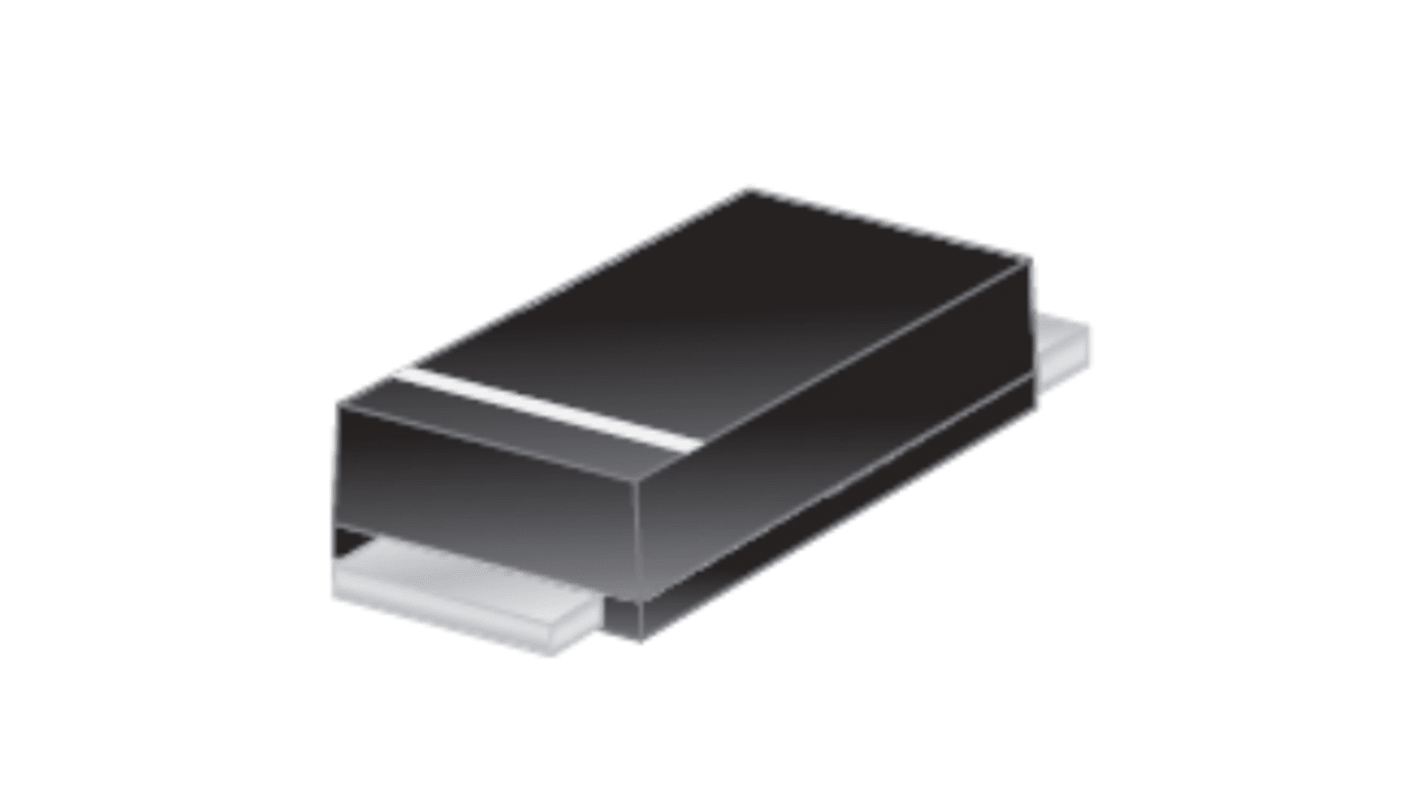

Diodes Inc 20V 1A, Schottky Diode, 2-Pin SMAF B120AF-13
- RS Stock No.:
- 182-6821
- Mfr. Part No.:
- B120AF-13
- Brand:
- DiodesZetex
4600 In stock - FREE next working day delivery available
Price Each (On a Reel of 10000)
£0.038
(exc. VAT)
£0.046
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 - 20000 | £0.038 | £380.00 |
| 30000 - 40000 | £0.035 | £350.00 |
| 50000 + | £0.034 | £340.00 |
*price indicative
- RS Stock No.:
- 182-6821
- Mfr. Part No.:
- B120AF-13
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
Product Details
The schottky rectifier providing low VF and excellent reverse leakage stability at high temperatures, this device is ideal for use in general rectification applications.
Reduced Low Forward Voltage Drop (VF), Better Efficiency and Cooler Operation
Reduced High-temperature Reverse Leakage, Increased Reliability against Thermal Runaway Failure in High Temperature Operation.
Lead-free finish
Halogen and Antimony Free. “Green” Device
Applications
Boost Diodes
Blocking Diodes
Recirculating Diodes
Reduced High-temperature Reverse Leakage, Increased Reliability against Thermal Runaway Failure in High Temperature Operation.
Lead-free finish
Halogen and Antimony Free. “Green” Device
Applications
Boost Diodes
Blocking Diodes
Recirculating Diodes
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SMAF |
| Maximum Continuous Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Rectifier |
| Diode Type | Schottky |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 500mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky Barrier |
| Peak Non-Repetitive Forward Surge Current | 30A |
