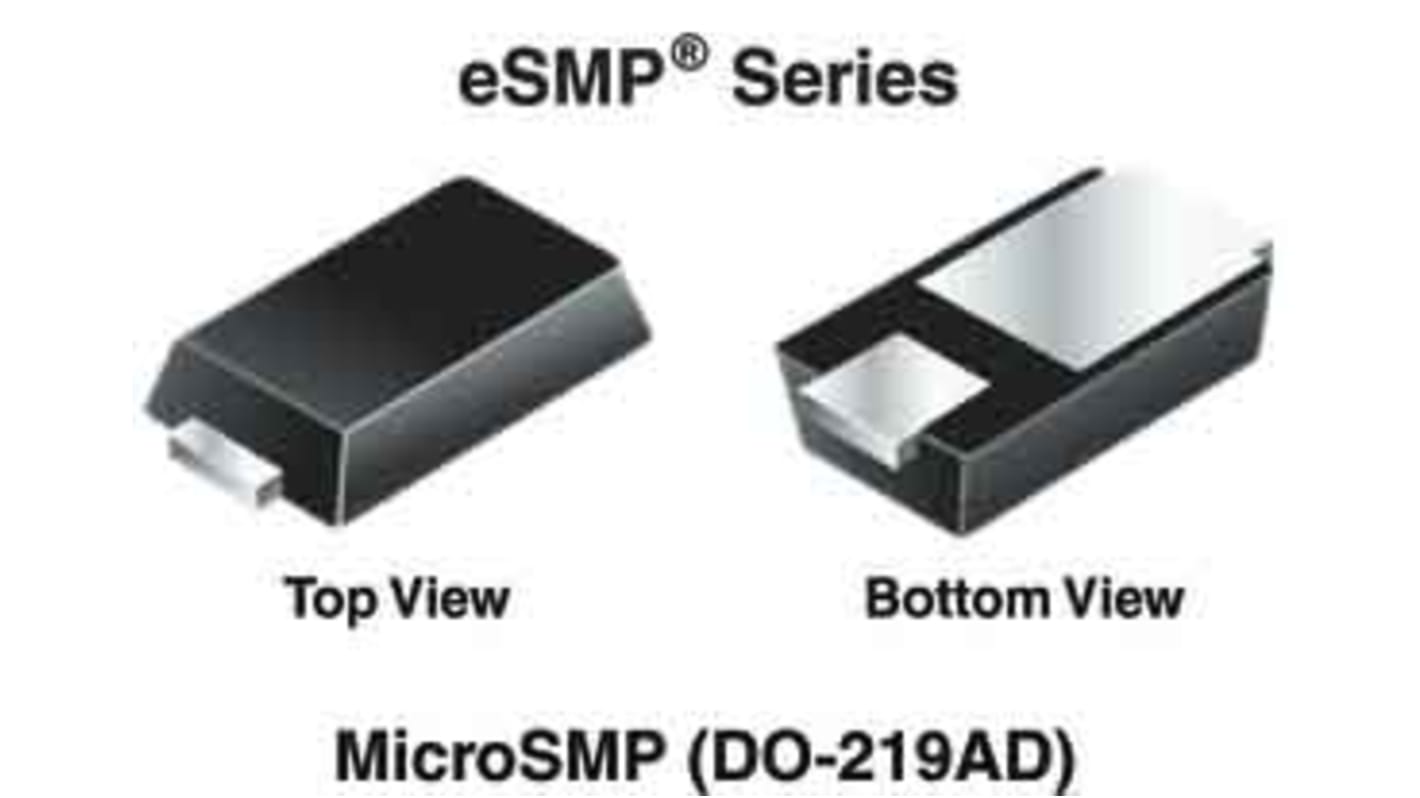

Vishay 20 V 1 A Diode Schottky 2-Pin DO-219AD MSS1P2L-M3/89A
- RS Stock No.:
- 180-7236
- Mfr. Part No.:
- MSS1P2L-M3/89A
- Brand:
- Vishay
Subtotal (1 pack of 50 units)*
£5.00
(exc. VAT)
£6.00
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £0.10 | £5.00 |
*price indicative
- RS Stock No.:
- 180-7236
- Mfr. Part No.:
- MSS1P2L-M3/89A
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | DO-219AD | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 20V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 500mV | |
| Peak Reverse Current Ir | 20mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Width | 1.4 mm | |
| Standards/Approvals | No | |
| Length | 2.3mm | |
| Height | 0.73mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type DO-219AD | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 20V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 500mV | ||
Peak Reverse Current Ir 20mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 25A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Width 1.4 mm | ||
Standards/Approvals No | ||
Length 2.3mm | ||
Height 0.73mm | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
Very low profile - typical height of 0.65 mm
Ideal for automated placement
Low forward voltage drop, low power losses
APPLICATIONS:
For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
