- RS Stock No.:
- 178-0423
- Mfr. Part No.:
- RFN20TB4SNZC9
- Brand:
- ROHM
Discontinued product
- RS Stock No.:
- 178-0423
- Mfr. Part No.:
- RFN20TB4SNZC9
- Brand:
- ROHM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

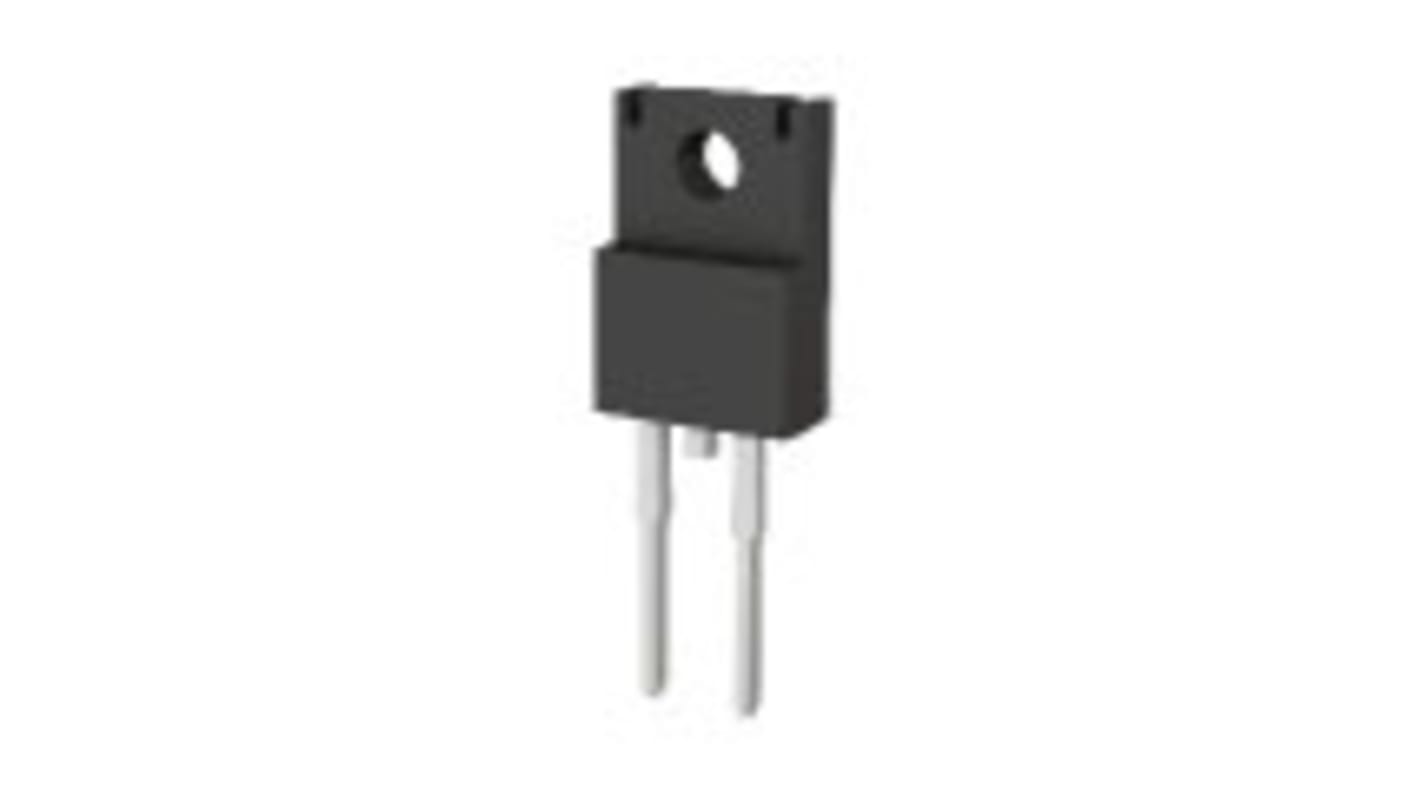

RFN20TB4SNZ is a Low VF fast recovery diode for general rectification.
Low switching loss
High current overload capacity
High current overload capacity
Specifications
Attribute | Value |
---|---|
Mounting Type | Through Hole |
Package Type | TO-220FN |
Maximum Continuous Forward Current | 20A |
Peak Reverse Repetitive Voltage | 430V |
Diode Configuration | Single |
Rectifier Type | Fast Recovery |
Diode Type | Silicon Junction |
Pin Count | 2 + Tab |
Number of Elements per Chip | 1 |
Diode Technology | Silicon Junction |
Peak Reverse Recovery Time | 30ns |
Peak Non-Repetitive Forward Surge Current | 100A |
