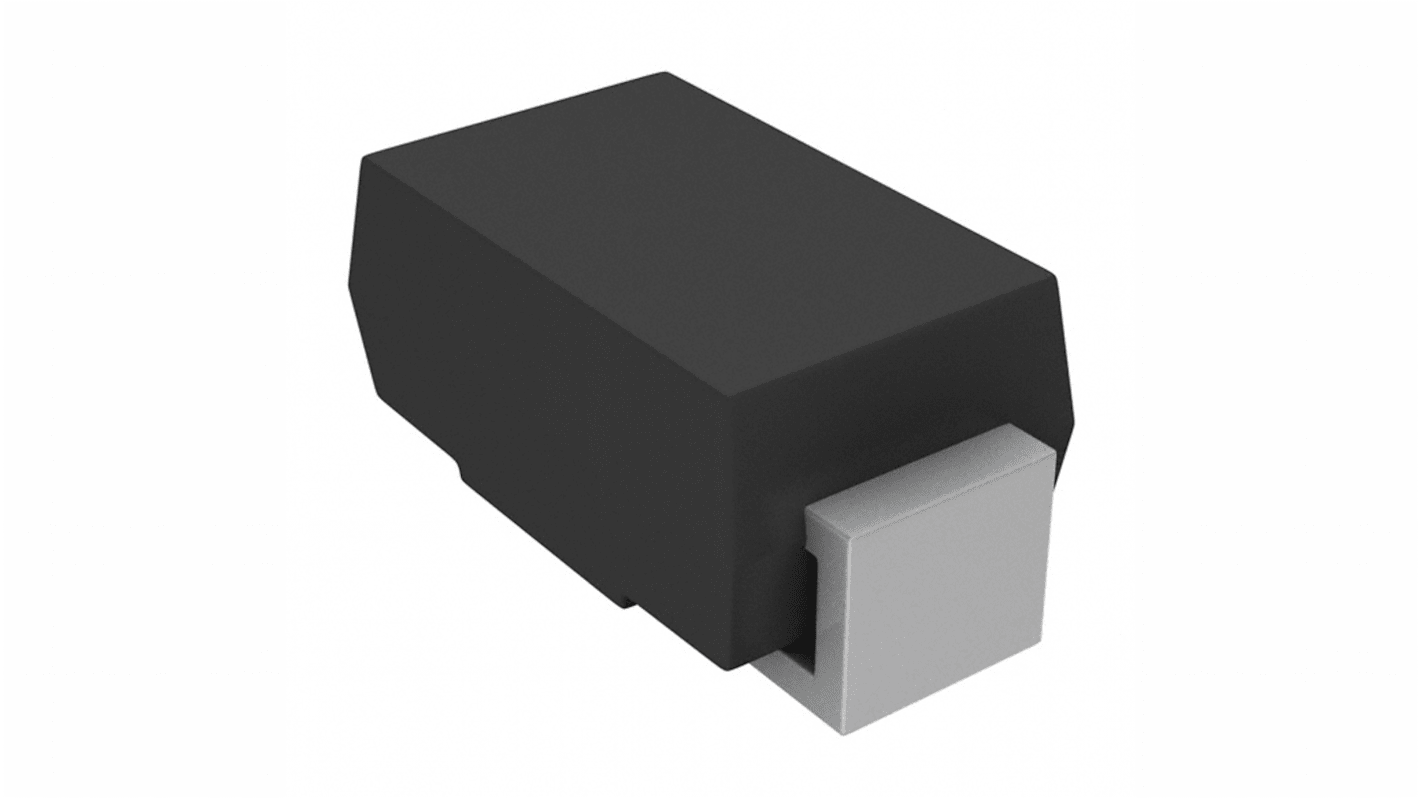

Vishay 20V 1A, Schottky Diode, 2-Pin DO-214AC SS12-E3/5AT

RS Stock No.:: 177-7392
Mfr. Part No.:: SS12-E3/5AT
Brand:: Vishay

Vishay 20V 1A, Schottky Diode, 2-Pin DO-214AC SS12-E3/5AT

1433 In stock - FREE next working day delivery available

Price Each (On a Reel of 7500)

£0.093

(exc. VAT)

£0.112

(inc. VAT)

Units	Per unit	Per Reel*
7500 +	£0.093	£697.50

*price indicative

RS Stock No.:: 177-7392
Mfr. Part No.:: SS12-E3/5AT
Brand:: Vishay

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Vishay SS12-SS16 SMD Schottky Barrier Rectifiers

The Vishay SS12-SS16 series of Schottky barrier rectifiers are low profile devices within an SMA (DO-214AC) package.

Features:
Over-voltage protection guard ring
Low forward voltage drop
Low power losses
High efficiency

What are they used for?
SS12-SS16 Schottky barrier rectifiers are designed for use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

What is their operating temperature range?
-65°C to +150°C

Versions Available:
SS12 - 20V
SS13 - 30V
SS14 - 40V
SS15 - 50V
SS16 - 60V

The Vishay SS12 series surface mount Schottky barrier rectifier are low profile devices within an SMA (DO-214AC) package and it is designed for use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

Ideal for automated placement
Guarding for overvoltage protection
High surge capability

Diodes and Rectifiers, Vishay Semiconductor

Specifications

Attribute	Value
Mounting Type	Surface Mount
Package Type	DO-214AC (SMA)
Maximum Continuous Forward Current	1A
Peak Reverse Repetitive Voltage	20V
Diode Configuration	Single
Rectifier Type	Schottky Rectifier
Diode Type	Schottky
Pin Count	2
Number of Elements per Chip	1
Diode Technology	Schottky Barrier
Peak Non-Repetitive Forward Surge Current	40A
