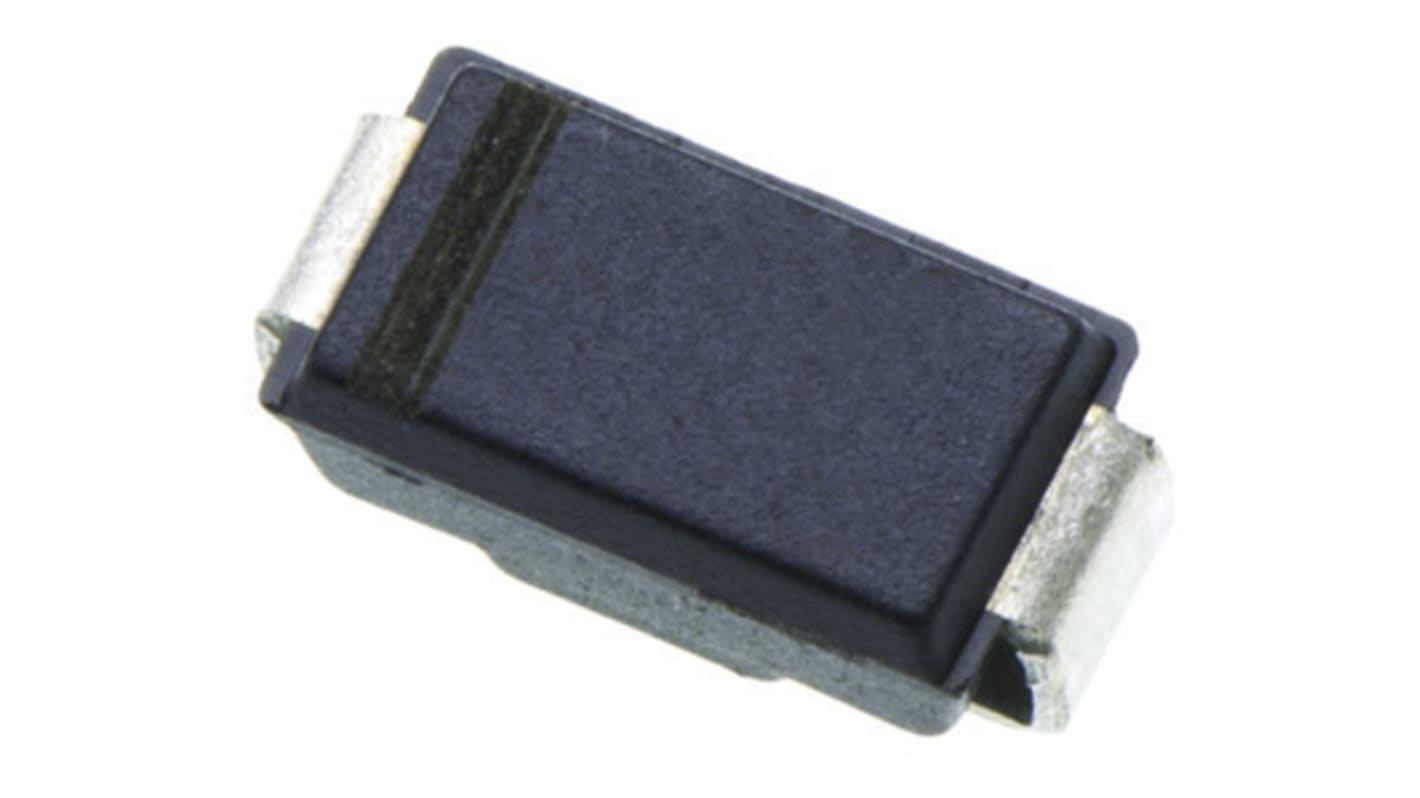

Bourns 40 V 3 A Diode Schottky 2-Pin DO-214AC

View this category

Subtotal (1 reel of 3000 units)*

£357.00

(exc. VAT)

£429.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.119£357.00

*price indicative

RS Stock No.:
172-3153
Mfr. Part No.:
CD214A-B340R
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Product Type

Diode

Mount Type

Surface

Package Type

DO-214AC

Maximum Continuous Forward Current If

3A

Peak Reverse Repetitive Voltage Vrrm

40V

Diode Configuration

Single

Series

CD214A-B3xR

Rectifier Type

Schottky

Pin Count

2

Minimum Operating Temperature

-55°C

Maximum Forward Voltage Vf

500mV

Peak Reverse Current Ir

0.2mA

Peak Non-Repetitive Forward Surge Current Ifsm

80A

Maximum Operating Temperature

125°C

Length

4.5mm

Width

2.2 mm

Standards/Approvals

No

Height

0.96mm

Automotive Standard

No

Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Schottky Rectifier Diodes for rectification applications, in a compact chip package compatible with DO-214AC (SMA) size format. The Schottky Rectifier Diodes offer a forward current of 1 A with a choice of repetitive peak reverse voltage of 20 V up to 100 V.

Features

Low profile

Low power loss, high efficiency

Applications

Switch Mode Power Supplies

Portable equipment batteries

High frequency rectification

DC/DC Converters

Telecommunications
