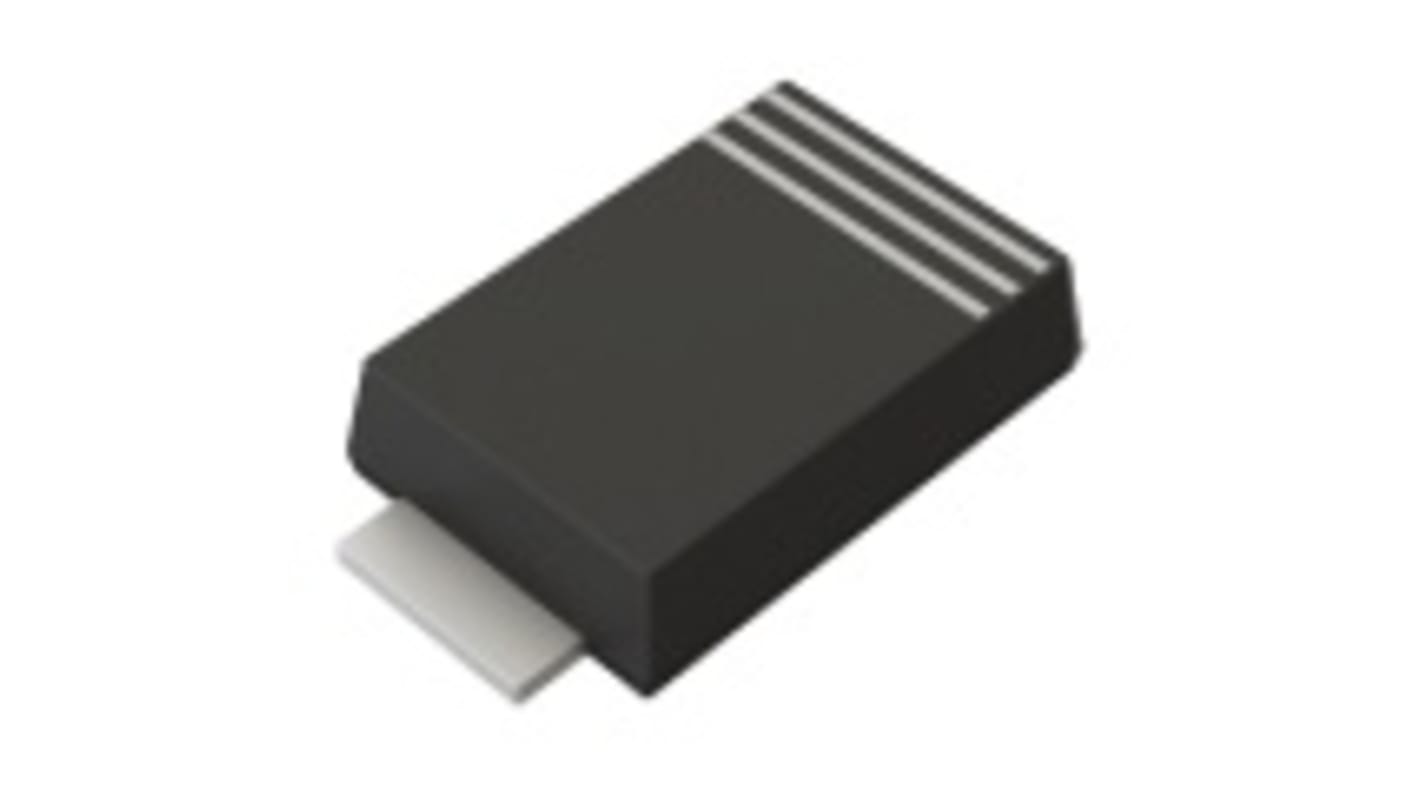

ROHM 60 V 3 A Diode Schottky 2-Pin SOD-128 RB055LAM-60TR
- RS Stock No.:
- 171-4415
- Mfr. Part No.:
- RB055LAM-60TR
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 50 units)*
£10.90
(exc. VAT)
£13.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.218 | £10.90 |
| 250 - 450 | £0.196 | £9.80 |
| 500 - 950 | £0.178 | £8.90 |
| 1000 - 1450 | £0.163 | £8.15 |
| 1500 + | £0.158 | £7.90 |
*price indicative
- RS Stock No.:
- 171-4415
- Mfr. Part No.:
- RB055LAM-60TR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | SOD-128 | |
| Maximum Continuous Forward Current If | 3A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Diode Configuration | Single | |
| Series | RB055LAM | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 680mV | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 70μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A | |
| Maximum Operating Temperature | 150°C | |
| Length | 3.9mm | |
| Width | 2.7 mm | |
| Standards/Approvals | No | |
| Height | 1.05mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type SOD-128 | ||
Maximum Continuous Forward Current If 3A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Diode Configuration Single | ||
Series RB055LAM | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 680mV | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 70μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 50A | ||
Maximum Operating Temperature 150°C | ||
Length 3.9mm | ||
Width 2.7 mm | ||
Standards/Approvals No | ||
Height 1.05mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
RB055LAM-60 is a schottky barrier diode with low VF, suitable for general rectification.
Small power mold type (PMDTM)
High reliability
Low VF
