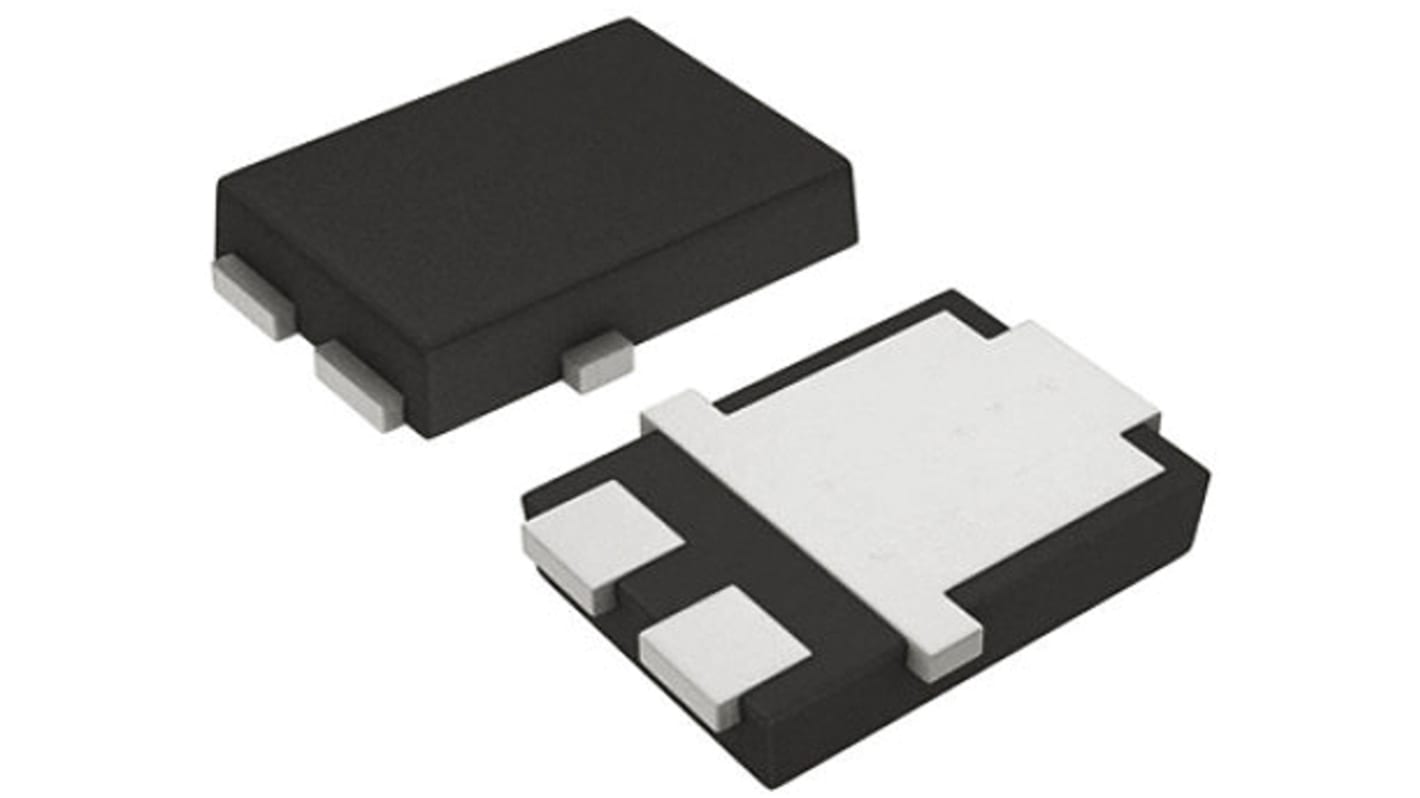

HY Electronic Corp 100V 10A, Schottky Diode, 3-Pin TO-277A S10P100
- RS Stock No.:
- 171-1440
- Mfr. Part No.:
- S10P100
- Brand:
- HY Electronic Corp
Discontinued
- RS Stock No.:
- 171-1440
- Mfr. Part No.:
- S10P100
- Brand:
- HY Electronic Corp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HY Electronic Corp | |
| Mounting Type | Surface Mount | |
| Package Type | TO-277A | |
| Maximum Continuous Forward Current | 10A | |
| Peak Reverse Repetitive Voltage | 100V | |
| Diode Configuration | Single | |
| Diode Type | Schottky | |
| Pin Count | 3 | |
| Maximum Forward Voltage Drop | 680mV | |
| Number of Elements per Chip | 1 | |
| Diode Technology | Schottky | |
| Peak Non-Repetitive Forward Surge Current | 180A | |
| Select all | ||
|---|---|---|
Brand HY Electronic Corp | ||
Mounting Type Surface Mount | ||
Package Type TO-277A | ||
Maximum Continuous Forward Current 10A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Configuration Single | ||
Diode Type Schottky | ||
Pin Count 3 | ||
Maximum Forward Voltage Drop 680mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky | ||
Peak Non-Repetitive Forward Surge Current 180A | ||
- COO (Country of Origin):
- CN
Schottky Barrier Rectifier Diode - S10/S15 Series
HY Electronic (Cayman) Limited S10/S15 schottky diode has a low forward voltage drop. They range from 45 V to 100 VRRM with a forward current of 10 A or 15 A. The surface mount schottky barrier rectifier is ideal for automated placements in its TO277A package. The diode has a low profile height and the leads comply with EU RoHS 2002/95 EC directives
Solder Terminals: MIL-STD-750
Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Diodes and Rectifiers, HY Electronic (Cayman) Limited
