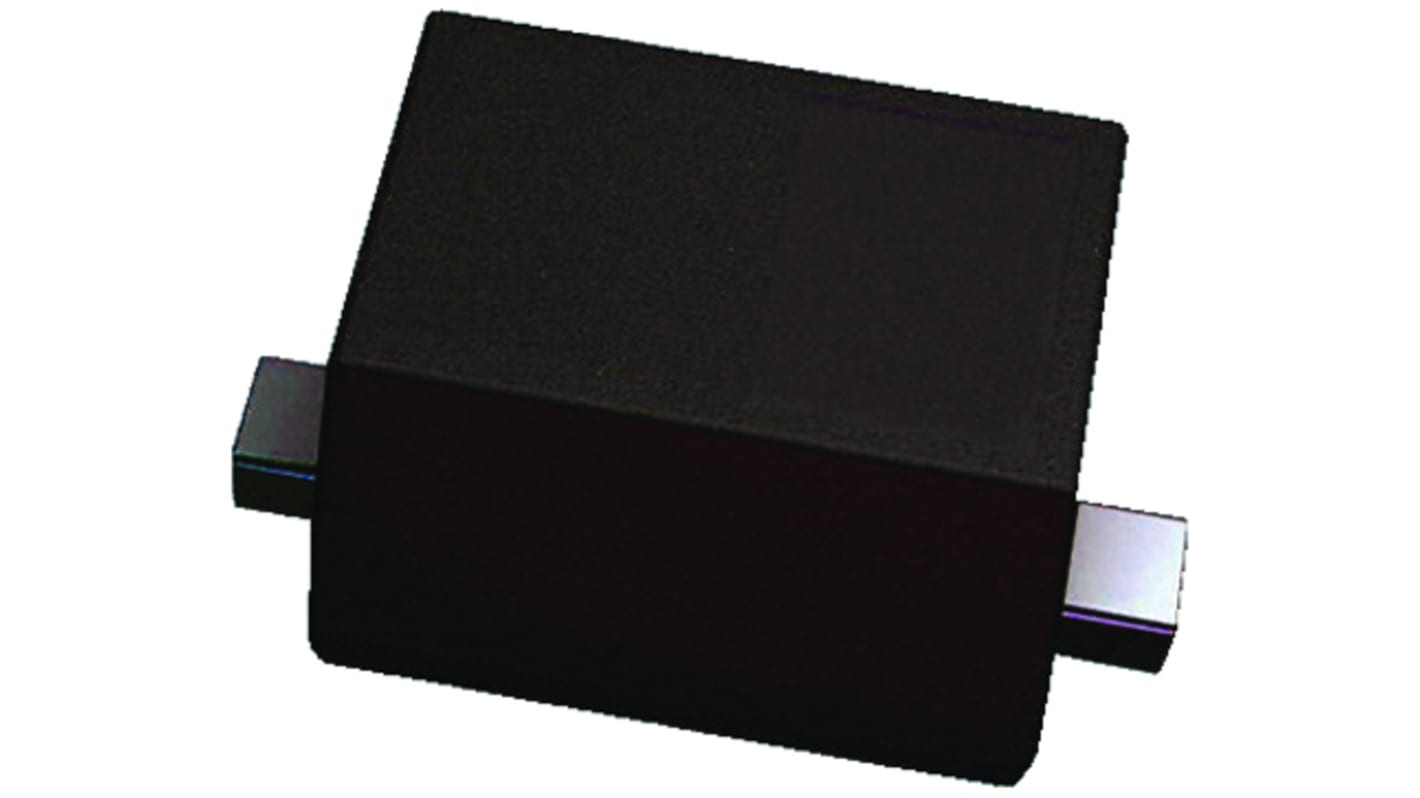

STMicroelectronics 70 V 70 mA Diode Schottky 2-Pin SOD-523

View this category
Bulk discount available

Subtotal (1 reel of 3000 units)*

£75.00

(exc. VAT)

£90.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 - 3000£0.025£75.00
6000 - 12000£0.023£69.00
15000 +£0.021£63.00

*price indicative

RS Stock No.:
165-5482
Mfr. Part No.:
BAS70KFILM
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Surface

Package Type

SOD-523

Maximum Continuous Forward Current If

70mA

Peak Reverse Repetitive Voltage Vrrm

70V

Series

BAS70

Diode Configuration

Single

Rectifier Type

Schottky

Pin Count

2

Maximum Forward Voltage Vf

1V

Peak Non-Repetitive Forward Surge Current Ifsm

1A

Peak Reverse Current Ir

10μA

Maximum Operating Temperature

150°C

Length

1.3mm

Height

0.7mm

Standards/Approvals

No

Width

0.9 mm

Automotive Standard

No

COO (Country of Origin):
CN

Schottky Barrier Diodes, up to 1A, STMicroelectronics


High power, efficiency and density.

Diodes and Rectifiers, STMicroelectronics
