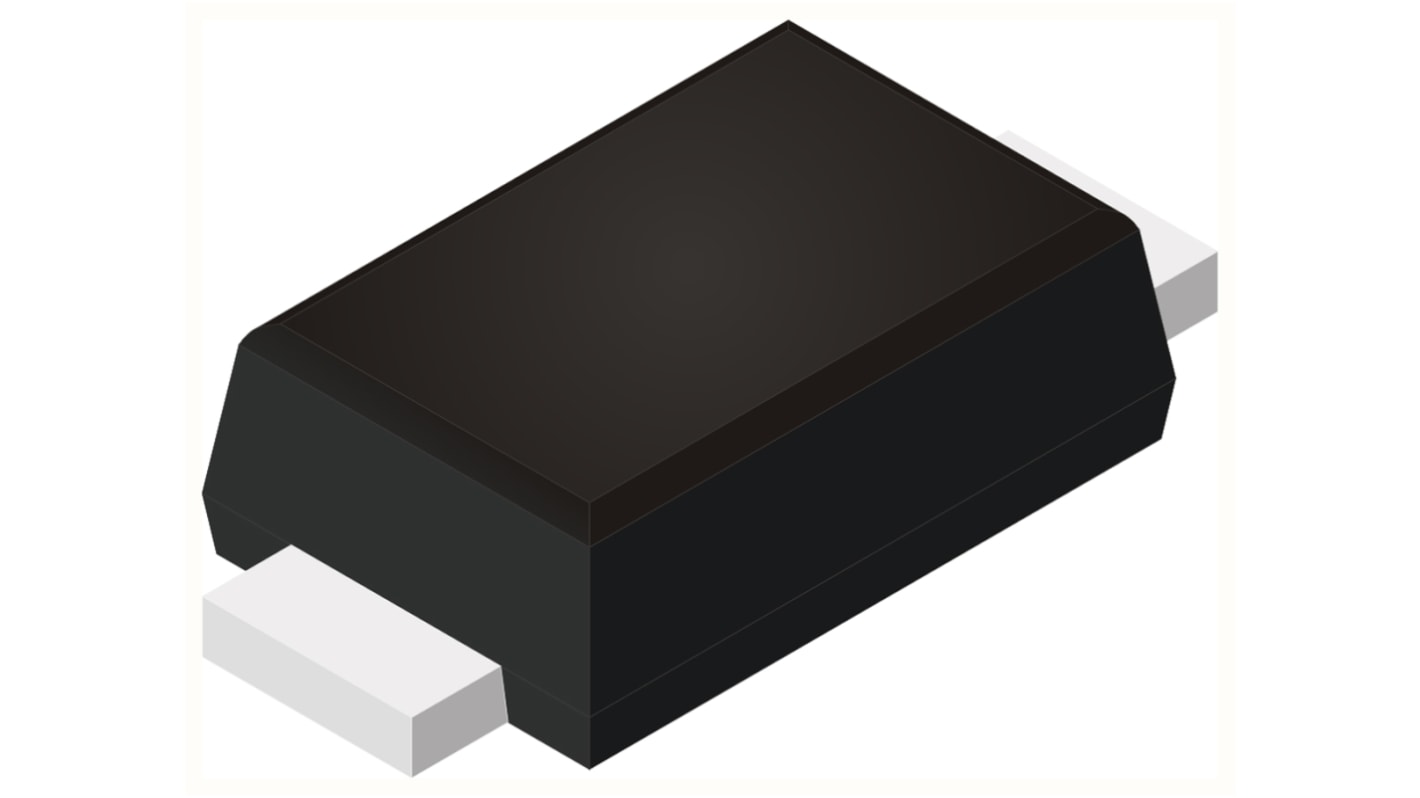

STMicroelectronics 40V 1A, Schottky Diode, 2-Pin SOD123Flat STPS1L40ZF
- RS Stock No.:
- 163-9826
- Mfr. Part No.:
- STPS1L40ZF
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 100 units)*
£12.00
(exc. VAT)
£14.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 - 400 | £0.12 | £12.00 |
500 - 900 | £0.089 | £8.90 |
1000 + | £0.069 | £6.90 |
*price indicative
- RS Stock No.:
- 163-9826
- Mfr. Part No.:
- STPS1L40ZF
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Surface Mount | |
Package Type | SOD123Flat | |
Maximum Continuous Forward Current | 1A | |
Peak Reverse Repetitive Voltage | 40V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 500mV | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky | |
Peak Non-Repetitive Forward Surge Current | 50A | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type SOD123Flat | ||
Maximum Continuous Forward Current 1A | ||
Peak Reverse Repetitive Voltage 40V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 500mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky | ||
Peak Non-Repetitive Forward Surge Current 50A | ||
STs range of low VF Schottky diodes features the lowest possible forward voltage drop (VF) and are dedicated to applications requiring the highest possible level of efficiency, and are available from 15 V up to 120 V. Typical applications include ORing diodes in server applications, rectification in notebook adaptors, or freewheeling in desktop or industrial SMPS
Single chip Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters. Packaged in SMA, SMB and SOD123Flat, this device is especially intended for surface mounting and used in low voltage, high frequency inverters, free-wheeling and polarity protection applications
Very small conduction losses
Negligible switching losses
Low forward voltage drop
Surface mount miniature packages
Negligible switching losses
Low forward voltage drop
Surface mount miniature packages
