- RS Stock No.:
- 152-7176
- Mfr. Part No.:
- PMEG030V030EPDZ
- Brand:
- Nexperia
Available to back order for despatch 20/05/2025
Added
Price Each (On a Reel of 1500)
£0.183
(exc. VAT)
£0.22
(inc. VAT)
Units | Per unit | Per Reel* |
1500 + | £0.183 | £274.50 |
*price indicative |
- RS Stock No.:
- 152-7176
- Mfr. Part No.:
- PMEG030V030EPDZ
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details

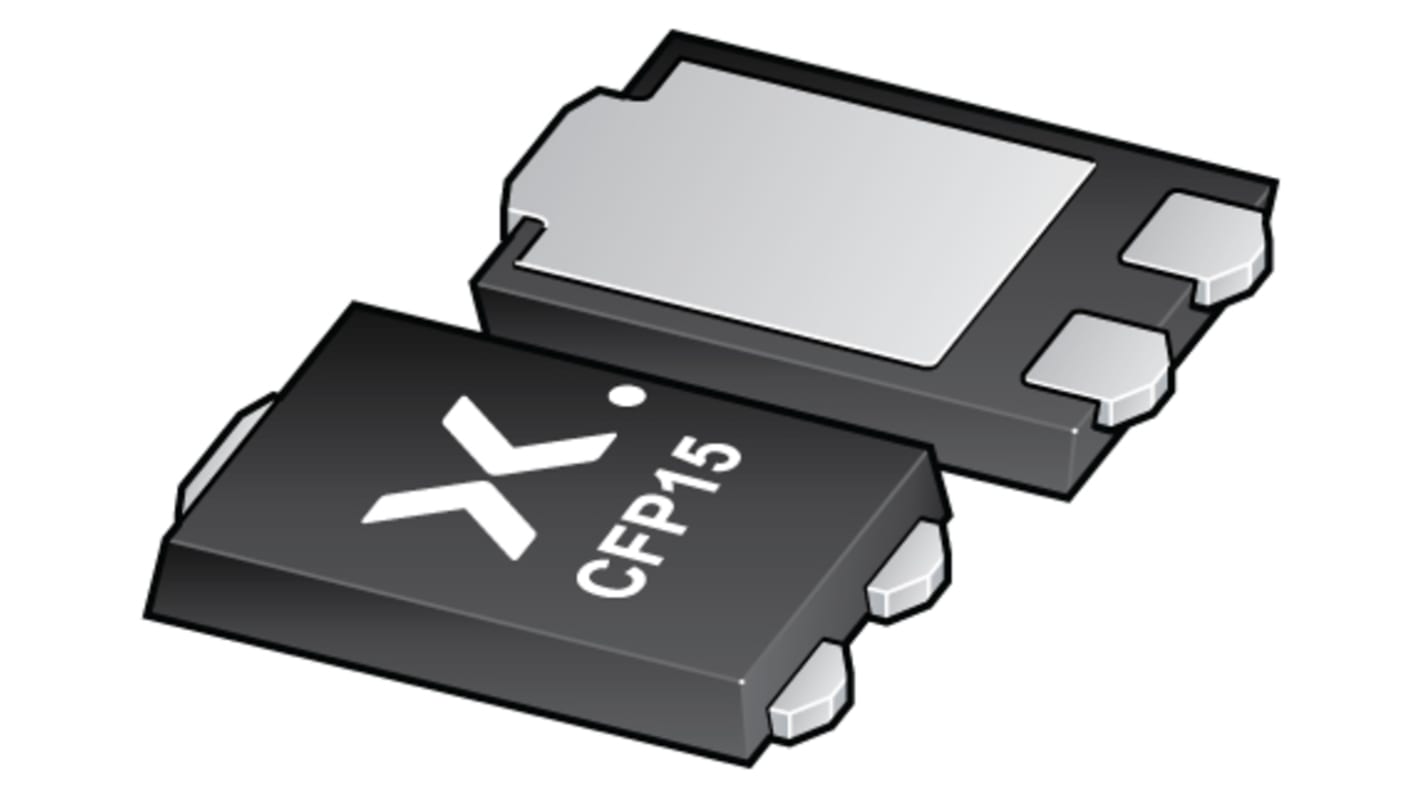

30 V, 3 A low VF MEGA Schottky barrier rectifier, Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a CFP15 (SOT1289) power and flat lead Surface-Mounted Device (SMD) plastic package.
Average forward current: IF(AV) ≤ 3 A
Reverse voltage: VR ≤ 30 V
Extremely low forward voltage
High power capability due to clip-bonding technology and heat sink
Small and thin SMD power plastic package, typical height 0.78 mm
AEC-Q101 qualified
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Freewheeling application
Reverse polarity protection
Low power consumption application
Reverse voltage: VR ≤ 30 V
Extremely low forward voltage
High power capability due to clip-bonding technology and heat sink
Small and thin SMD power plastic package, typical height 0.78 mm
AEC-Q101 qualified
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Freewheeling application
Reverse polarity protection
Low power consumption application
Specifications
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Package Type | SOD-123 |
Maximum Continuous Forward Current | 4.2A |
Peak Reverse Repetitive Voltage | 30V |
Diode Configuration | Common Cathode |
Rectifier Type | Schottky Rectifier |
Diode Type | Schottky |
Pin Count | 2 + Tab |
Number of Elements per Chip | 1 |
Diode Technology | Schottky |
Peak Reverse Recovery Time | 16ns |
Peak Non-Repetitive Forward Surge Current | 120A |
- RS Stock No.:
- 152-7176
- Mfr. Part No.:
- PMEG030V030EPDZ
- Brand:
- Nexperia
