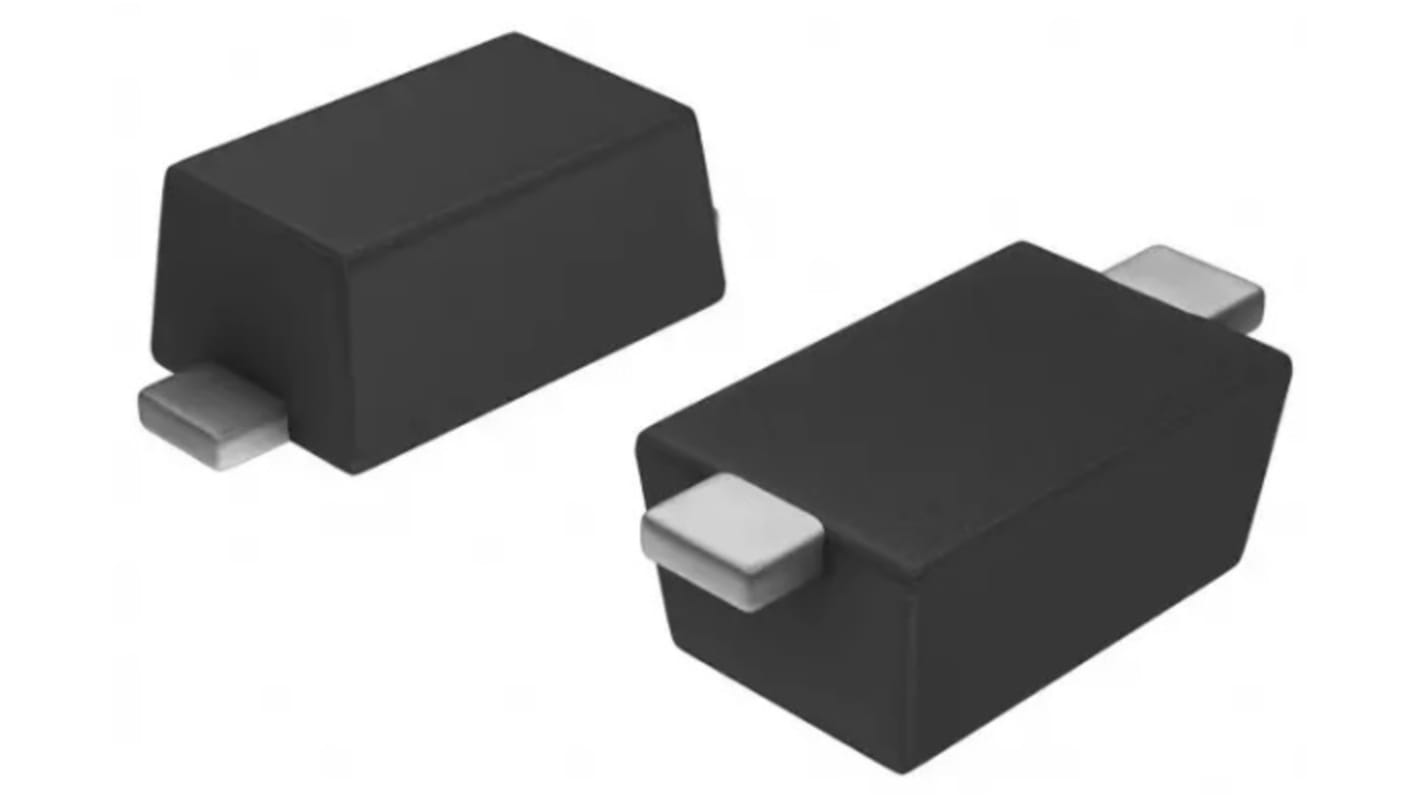

DiodesZetex 100 V 1 A Diode Schottky 2-Pin SOD-123 SDM1U100S1F-7
- RS Stock No.:
- 146-4799
- Mfr. Part No.:
- SDM1U100S1F-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 10 units)*
£0.99
(exc. VAT)
£1.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 2,820 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.099 | £0.99 |
| 100 - 490 | £0.063 | £0.63 |
| 500 - 990 | £0.05 | £0.50 |
| 1000 - 1990 | £0.037 | £0.37 |
| 2000 + | £0.036 | £0.36 |
*price indicative
- RS Stock No.:
- 146-4799
- Mfr. Part No.:
- SDM1U100S1F-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOD-123 | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Series | SDM1U100S1F | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 1mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A | |
| Maximum Forward Voltage Vf | 770mV | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | FBI | |
| Height | 1.15mm | |
| Width | 1.9 mm | |
| Length | 2.8mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOD-123 | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Series SDM1U100S1F | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 1mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 50A | ||
Maximum Forward Voltage Vf 770mV | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals FBI | ||
Height 1.15mm | ||
Width 1.9 mm | ||
Length 2.8mm | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- TW
The SDM1U100S1F is a single rectifier packaged in SOD123F, offering low VF, low power loss and high efficiency.
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Interlocking Clip Design for High Surge Current Capacity
Qualified to AEC-Q101 Standards
Lead-Free Finish, RoHS Compliant
Halogen and Antimony Free. “Green” Device
