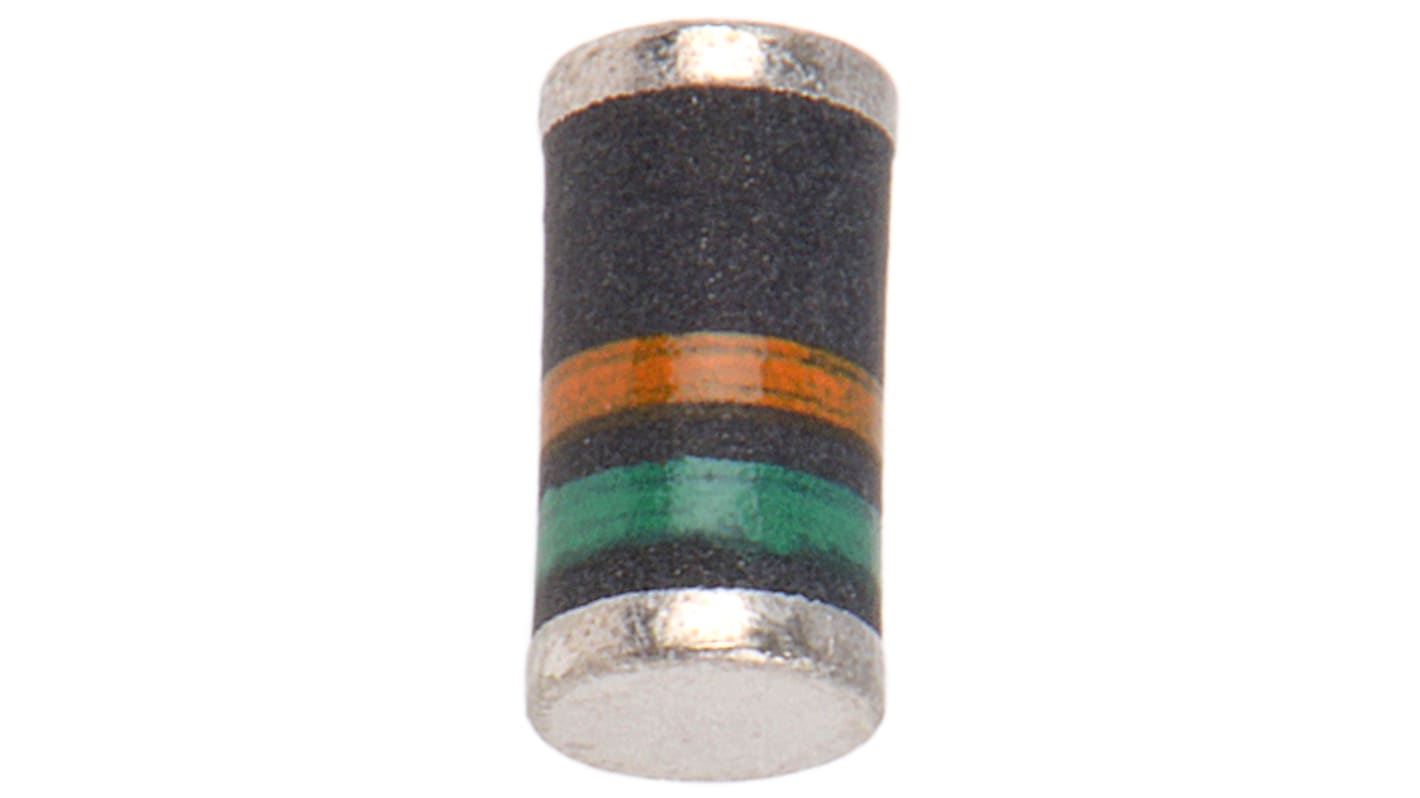

Vishay 200 V 1 A Diode Switching 2-Pin DO-213AB

View this category

Subtotal (1 reel of 1500 units)*

£174.00

(exc. VAT)

£208.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3,000 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1500 +£0.116£174.00

*price indicative

RS Stock No.:
145-2605
Mfr. Part No.:
BYM12-200-E3/96
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Mount Type

Surface

Product Type

Diode

Package Type

DO-213AB

Maximum Continuous Forward Current If

1A

Peak Reverse Repetitive Voltage Vrrm

200V

Diode Configuration

Single

Series

BYM12-xxx

Rectifier Type

Switching

Pin Count

2

Maximum Forward Voltage Vf

1V

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

30A

Peak Reverse Current Ir

5μA

Maximum Operating Temperature

175°C

Peak Reverse Recovery Time trr

50ns

Diameter

2.67 mm

Width

2.67 mm

Height

2.67mm

Length

5.2mm

Standards/Approvals

RoHS

Automotive Standard

No

COO (Country of Origin):
TW

Ultrafast Recovery Rectifiers 1A, Vishay Semiconductor


Vishay ultrafast recovery rectifiers have very fast reverse recovery times as low as 15ns and voltage levels as high as 1500V. Typical applications include very high frequency Switched Mode power supplies (SMPS), inverters, and freewheeling diodes.

Diodes and Rectifiers, Vishay Semiconductor
