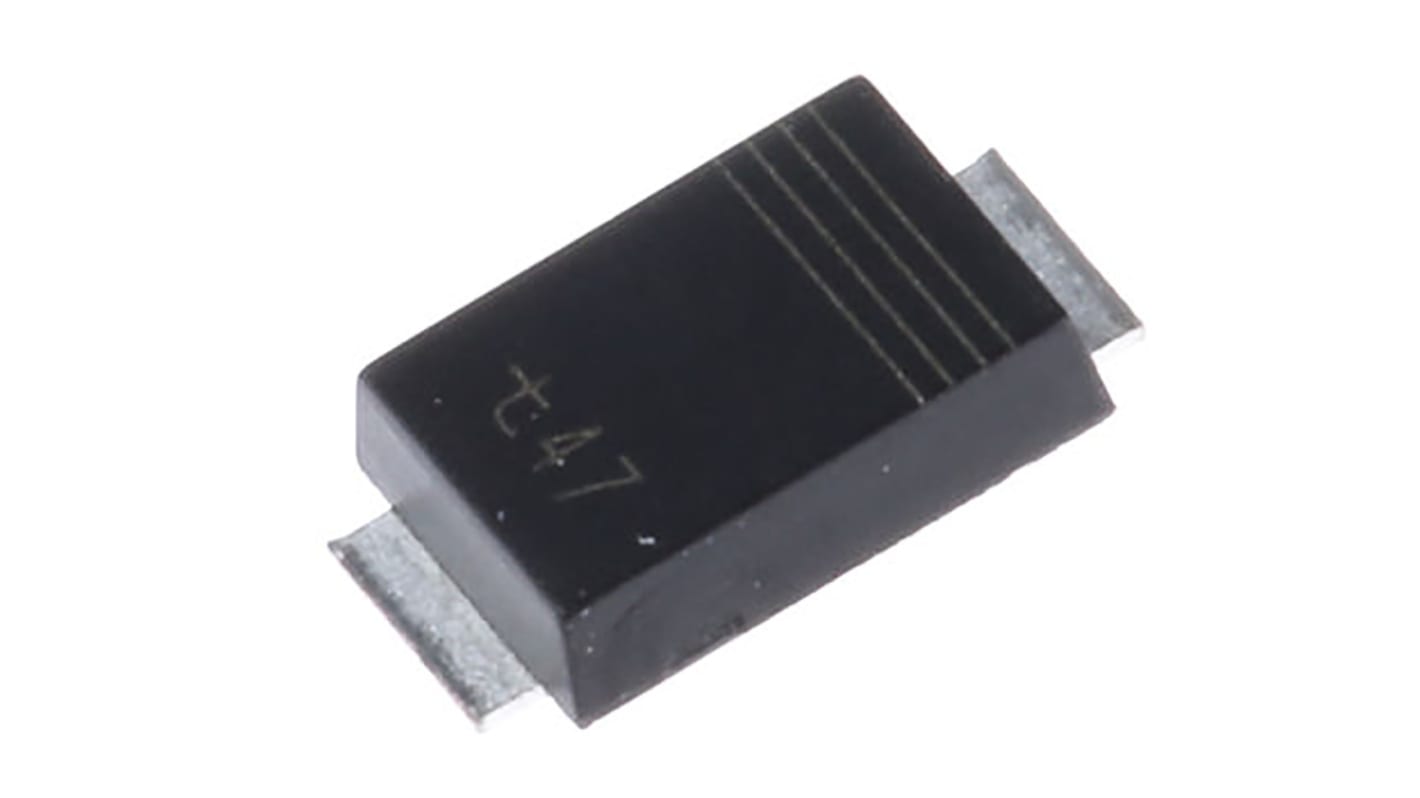

ROHM 100 V 500 mA Diode General Purpose 2-Pin TUMD2M RF05VAM1STR
- RS Stock No.:
- 124-6785
- Mfr. Part No.:
- RF05VAM1STR
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£10.50
(exc. VAT)
£12.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.105 | £10.50 |
| 500 - 900 | £0.10 | £10.00 |
| 1000 - 2400 | £0.07 | £7.00 |
| 2500 - 4900 | £0.067 | £6.70 |
| 5000 + | £0.047 | £4.70 |
*price indicative
- RS Stock No.:
- 124-6785
- Mfr. Part No.:
- RF05VAM1STR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | TUMD2M | |
| Maximum Continuous Forward Current If | 500mA | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | Single | |
| Rectifier Type | General Purpose | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 10μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 6A | |
| Maximum Forward Voltage Vf | 980mV | |
| Peak Reverse Recovery Time trr | 25ns | |
| Maximum Operating Temperature | 150°C | |
| Length | 2mm | |
| Height | 0.5mm | |
| Standards/Approvals | No | |
| Width | 1.4mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type TUMD2M | ||
Maximum Continuous Forward Current If 500mA | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration Single | ||
Rectifier Type General Purpose | ||
Pin Count 2 | ||
Peak Reverse Current Ir 10μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 6A | ||
Maximum Forward Voltage Vf 980mV | ||
Peak Reverse Recovery Time trr 25ns | ||
Maximum Operating Temperature 150°C | ||
Length 2mm | ||
Height 0.5mm | ||
Standards/Approvals No | ||
Width 1.4mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
Fast Recovery Diodes, ROHM
Diodes and Rectifiers, ROHM Semiconductor
