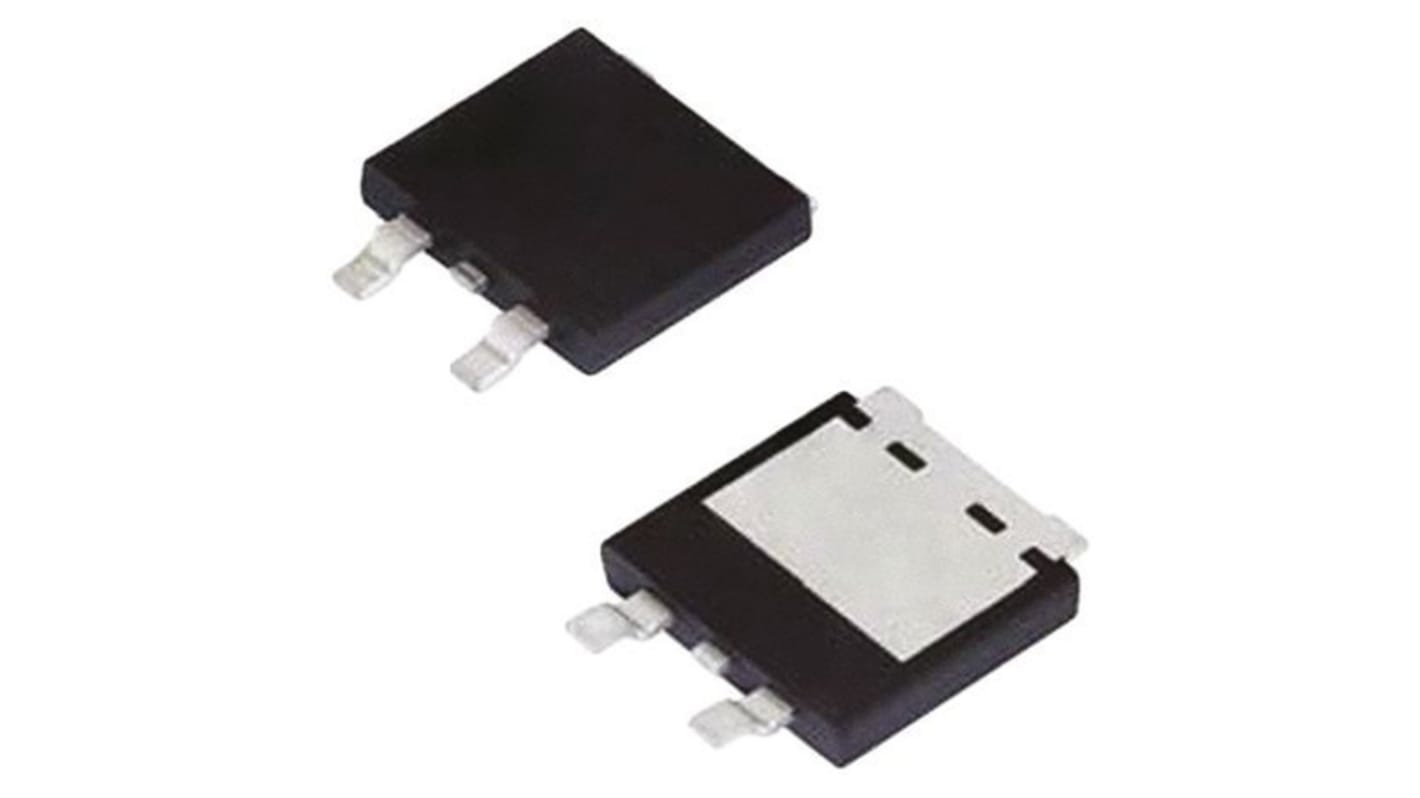

Vishay 120 V 35 A Diode Schottky 3-Pin DPAK
- RS Stock No.:
- 124-2247P
- Mfr. Part No.:
- V35PWM12HM3/I
- Brand:
- Vishay
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£48.60
(exc. VAT)
£58.30
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 50 - 245 | £0.972 |
| 250 - 495 | £0.92 |
| 500 - 1245 | £0.888 |
| 1250 + | £0.866 |
*price indicative
- RS Stock No.:
- 124-2247P
- Mfr. Part No.:
- V35PWM12HM3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | TO-252 | |
| Maximum Continuous Forward Current If | 35A | |
| Peak Reverse Repetitive Voltage Vrrm | 120V | |
| Series | V35X | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 1.05V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A | |
| Peak Reverse Current Ir | 40mA | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Height | 1.4mm | |
| Length | 6.32mm | |
| Automotive Standard | AEC-Q101 | |
