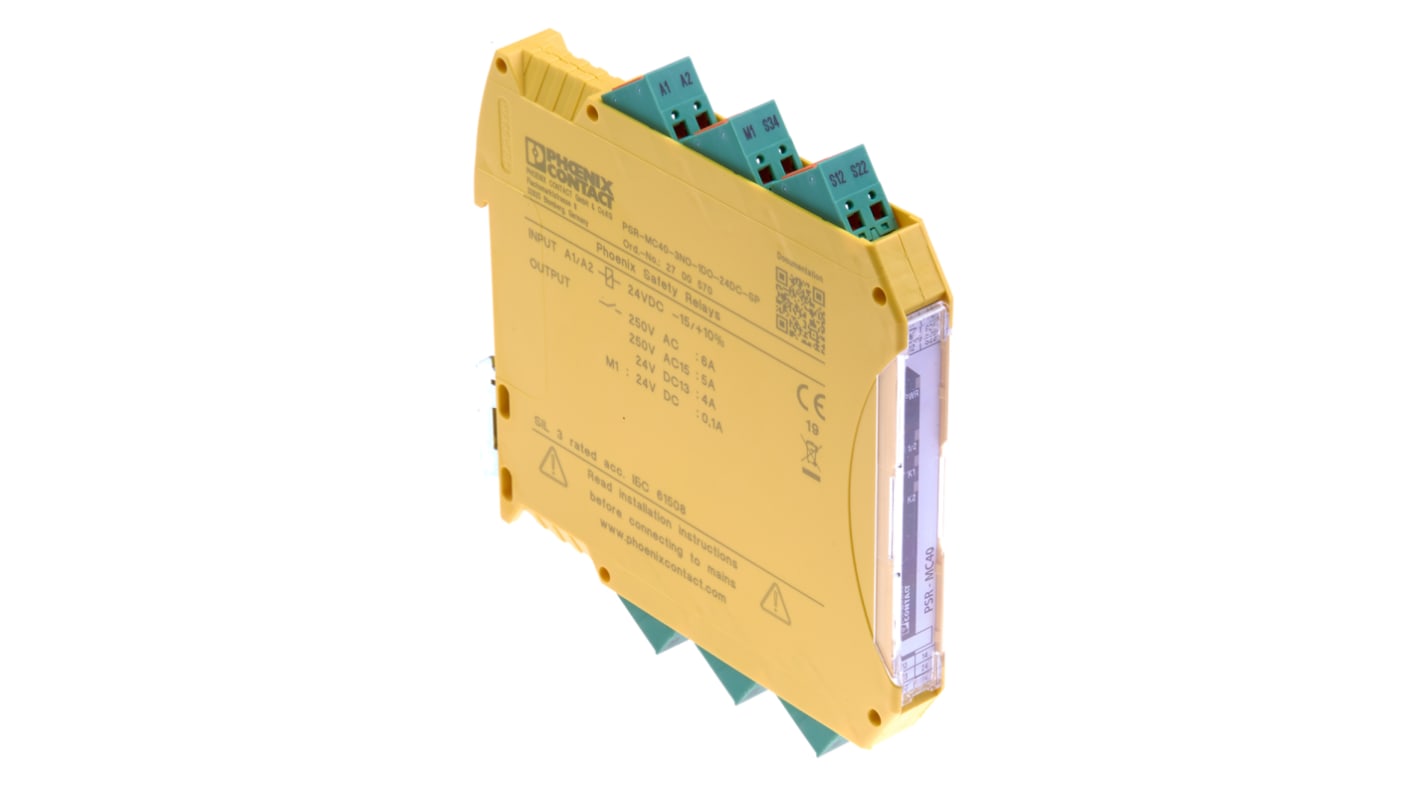

Phoenix Contact PSR-MC40-3NO-1DO-24DC-SP, 24V dc Safety Relay, 3 Safety Contacts, 3
- RS Stock No.:
- 893-7705
- Mfr. Part No.:
- 2700570
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£151.83
(exc. VAT)
£182.20
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £151.83 |
*price indicative
- RS Stock No.:
- 893-7705
- Mfr. Part No.:
- 2700570
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Safety Relay | |
| Safety Contacts | 3 | |
| Number of Auxiliary Contacts | 3 | |
| Mount Type | DIN Rail | |
| Reset Method | Automatic & Manual | |
| Power Consumption | 1.92W | |
| Series | PSR-MC40-3NO-1DO-24DC-SP | |
| Terminal Type | Cage Clamp | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | IEC 50156, EN 62061, EN ISO 13849-1, GL, IEC 61508/61511, ANSI / ISA-S71.04, EN 50205 | |
| Contact Current | 6A | |
| Maximum Operating Temperature | 55°C | |
| Height | 114.5mm | |
| Length | 117mm | |
| Width | 12.5mm | |
| Hazardous Area Certification | ATEX, IECEx | |
| Safety Category | ISO 13849, PLe | |
| Coil Voltage | 24V dc | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Safety Relay | ||
Safety Contacts 3 | ||
Number of Auxiliary Contacts 3 | ||
Mount Type DIN Rail | ||
Reset Method Automatic & Manual | ||
Power Consumption 1.92W | ||
Series PSR-MC40-3NO-1DO-24DC-SP | ||
Terminal Type Cage Clamp | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals IEC 50156, EN 62061, EN ISO 13849-1, GL, IEC 61508/61511, ANSI / ISA-S71.04, EN 50205 | ||
Contact Current 6A | ||
Maximum Operating Temperature 55°C | ||
Height 114.5mm | ||
Length 117mm | ||
Width 12.5mm | ||
Hazardous Area Certification ATEX, IECEx | ||
Safety Category ISO 13849, PLe | ||
Coil Voltage 24V dc | ||
Phoenix Contact Safety Relay, Pluggable, 3 Auxiliary Contacts - PSR-MC40-3NO-1DO-24DC-SP - 2700570
Minimise the risk of accidents and unplanned downtime in your industrial environment with this safety relay from Phoenix Contact. It's designed to monitor machinery and initiate a suitable response in the event of an emergency. The integrated force-guided contacts are made from corrosion-resistant silver tin oxide for durability. As this unit has a mechanical service life of 10,000,000 cycles, you can rely on it for the long haul.
A simple plug-in installation method makes set-up quick and tool-free. Once fitted, the relay is resistant to shock and vibration, which helps prevent false tripping. When a trip happens, it has a recovery time of less than 500ms to swiftly get your systems back on track. For versatility, you can reset this unit manually or automatically. Use a device like this to monitor safety devices including light curtains, transponders and solenoid switches.
Features & Benefits
• LED signals for clear status configuration
• IP20 rating indicates it's protected against objects over 12mm in size
• Broad operating temperature range between -40°C and +55°C for safe use in tough environments
• PBT housing is wear-resistant for added durability
• Cage clamp terminals for secure connection to electrical circuits
