Phoenix Contact Dual-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V dc, 3 Safety Contacts

The PSRmini safety relays from Phoenix Contact are the most narrow safety relay on the market to provide proven safety thanks to force-guided contacts. The Innovative relay technology offers maximum safety and high switching loads up to 6 A.
The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators.

• Compatible with all important signal transmitters and safety-relevant systems
• Screw and push-in spring connection
• Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available
• Up to 70% space saved
• Easy and quick diagnosis given means shorter downtime

EN ISO 13849-1, EN 62061, IEC 61508.

CE, UL, cULus, TUV.

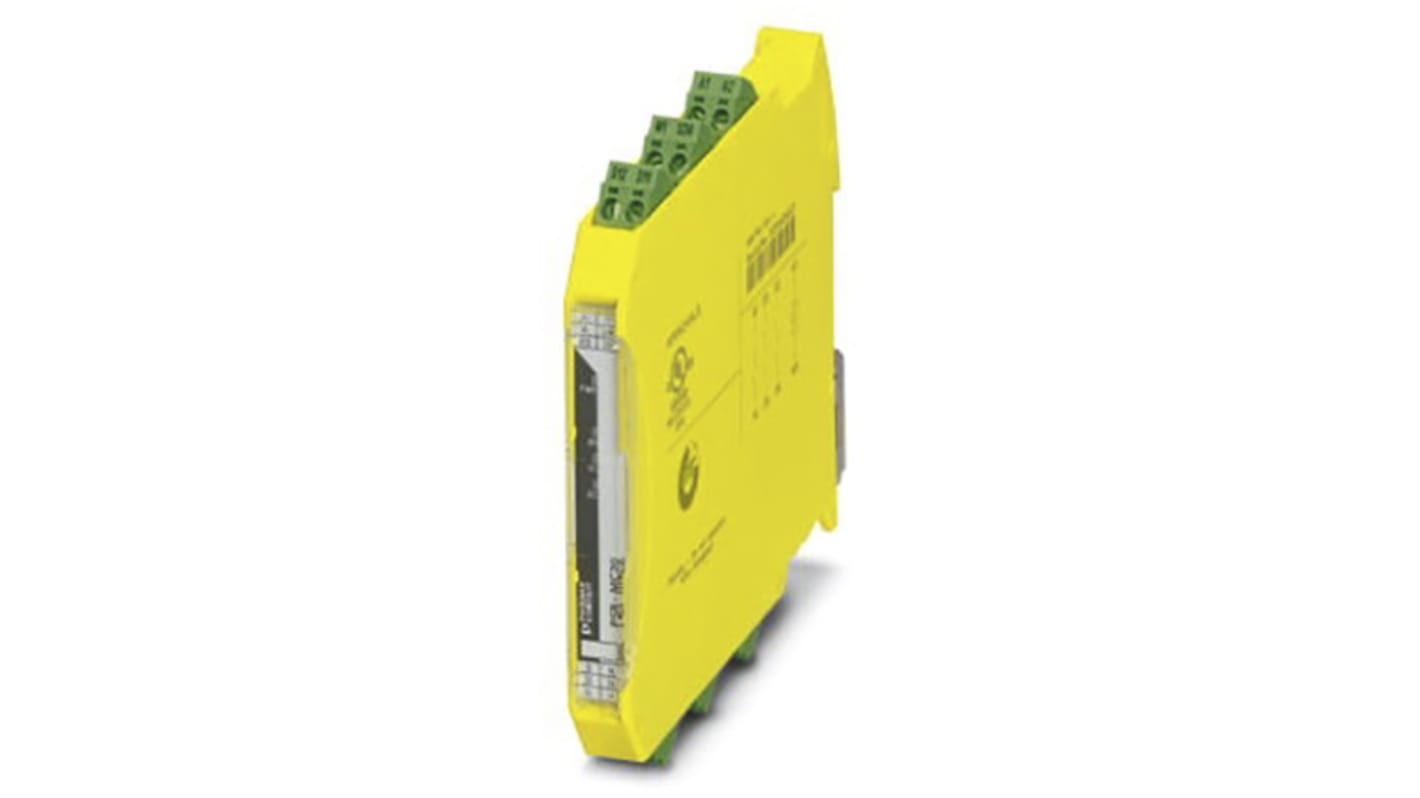

Phoenix Contact 2700540 highly compact PSRmini safety relay has a width of only 12.5 mm, screw connections, 1 digital signal output and 2 enabling current paths.
