Schmersal PROTECT SRB SRB 301MC 1 Auxiliary Contacts Safety Relay 24V ac/dc, Single/Dual-Channel 3 Safety Contacts
- RS Stock No.:
- 741-8650
- Mfr. Part No.:
- SRB 301MC-24V
- Brand:
- Schmersal
Subtotal (1 unit)*
£269.14
(exc. VAT)
£322.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £269.14 |
*price indicative
- RS Stock No.:
- 741-8650
- Mfr. Part No.:
- SRB 301MC-24V
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schmersal | |
Supply Voltage | 24V ac/dc | |
Number of Channels | 1, 2 | |
Safety Contacts | 3 | |
Function | Emergency Stop | |
Auxiliary Contacts | 1 | |
Reset Method | Automatic | |
Range | PROTECT SRB | |
Safety Category ISO 13849-1 | 4 | |
PL ISO 13849-1 | e | |
SIL IEC 61508 | 3 | |
Terminal Type | Screw | |
Series | SRB 301MC | |
Width | 22.5mm | |
Depth | 121mm | |
Length | 100mm | |
Performance Level | e | |
Select all | ||
---|---|---|
Brand Schmersal | ||
Supply Voltage 24V ac/dc | ||
Number of Channels 1, 2 | ||
Safety Contacts 3 | ||
Function Emergency Stop | ||
Auxiliary Contacts 1 | ||
Reset Method Automatic | ||
Range PROTECT SRB | ||
Safety Category ISO 13849-1 4 | ||
PL ISO 13849-1 e | ||
SIL IEC 61508 3 | ||
Terminal Type Screw | ||
Series SRB 301MC | ||
Width 22.5mm | ||
Depth 121mm | ||
Length 100mm | ||
Performance Level e | ||
- COO (Country of Origin):
- DE
PROTECT SRB301 Series Safety Relays
Introducing the PROTECT SRB301 series of Safety Relays. These are a perfect fit for signal evaluation, specifically the outputs of safety magnetic switches. They function well with such safety applications like Light beams/curtains, Safety mats or Safety switches/interlocks.
Approvals
BG, USA/CAN

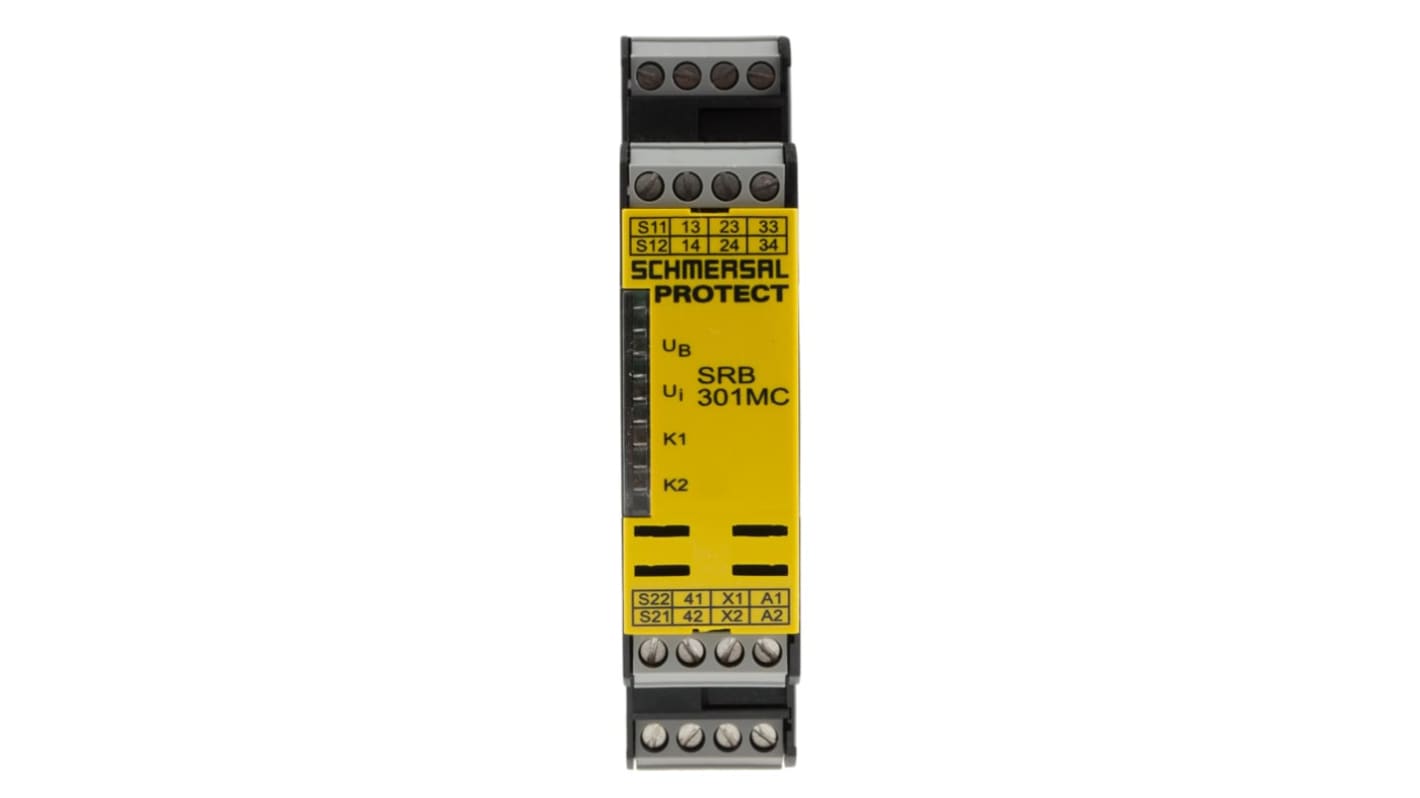

Schmersal PROTECT Safety Relay, 24 V AC/DC - SRB 301MC Series - SRB 301MC-24V
Use this safety relay from Schmersal for emergency stop applications. It's ideal for evaluating signals from magnetic safety switches and has high diagnostic capability. User-friendly LEDs (light-emitting diodes) help with troubleshooting by reporting operating states, such as the supply voltage and internal operating voltage. For enhanced safety, the configurable safety controller has an automatic internal electronic trip that doesn't need to be manually reset. Choose this relay to monitor light curtains as well as safety mats and switches.
Features and Benefits
• Clips onto a DIN rail for simple mounting
• Good resistance to vibration to withstand heavy-duty industrial use
• Strong glass-fibre reinforced thermoplastic housing for reliable durability
• Good resistance to vibration to withstand heavy-duty industrial use
• Strong glass-fibre reinforced thermoplastic housing for reliable durability
Application Information
• Packaging and processing industries
• Assembly handling
• Robotics
• Assembly handling
• Robotics
Will this safety relay interfere with the function of other electrical components?
This relay produces low levels of electromagnetic interference (EMI), meaning it won't interfere with the functioning of other devices.
How does a safety relay work?
Safety relays feature redundant dual-channel, cross-monitoring logic circuits. These circuits continuously check for and detect faults in the system's safety-circuit components and interconnection wiring.
