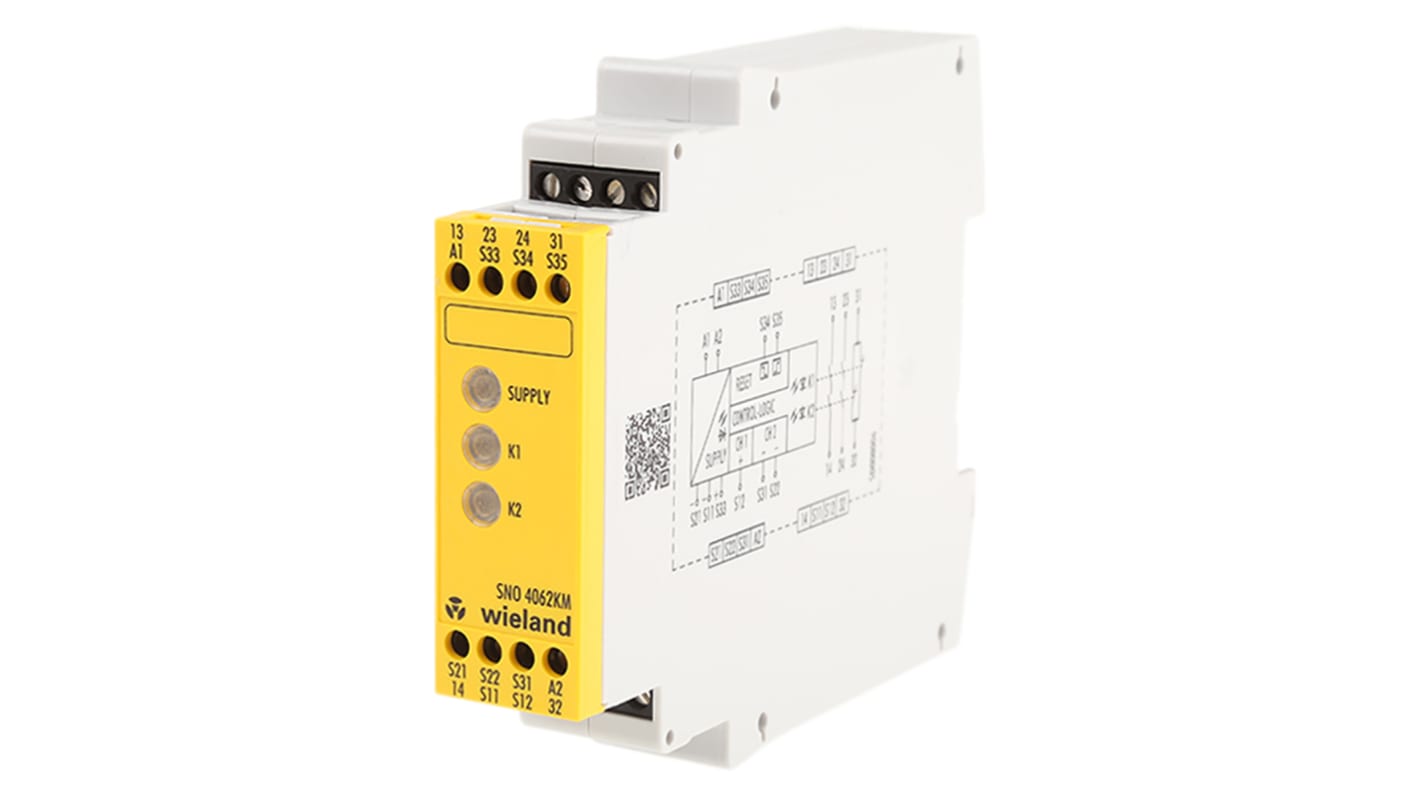

Wieland Dual-Channel Emergency Stop Safety Relay, 24V ac/dc, 2 Safety Contacts
- RS Stock No.:
- 321-9077
- Mfr. Part No.:
- SNO 4062KM-00C
- Brand:
- Wieland
Discontinued product
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 321-9077
- Mfr. Part No.:
- SNO 4062KM-00C
- Brand:
- Wieland
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
SNO 4062K Safety Relay, Dual Channel
LED indication for supply voltage and safety circuits
Automatic restart function available
Contact current rating: 6A
Conform to BS EN 60204 Part 1 1993; EN 954-1; IEC 204-1; VDE 0113
Dimensions (mm): H 96.5, W 22.5, L 114
Automatic restart function available
Contact current rating: 6A
Conform to BS EN 60204 Part 1 1993; EN 954-1; IEC 204-1; VDE 0113
Dimensions (mm): H 96.5, W 22.5, L 114
Note
Stock no. 321-9077 has input de-bouncing through "Monoflop" functionality and sensors for fast tactile applications. Incorporates soft reset functionality allowing the device to be reset locally upon encountering a short interrupt.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24V ac/dc |
| Number of Channels | 2 |
| Safety Contacts | 2 |
| Function | Emergency Stop |
| Auxiliary Contacts | 1 |
| Range | safeRELAY |
| Terminal Type | Screw |
| Series | SNO 4062 |
| Width | 22.5mm |
| Depth | 114mm |
| Safety Category | 4 |
| Performance Level | e |
| Length | 99mm |
