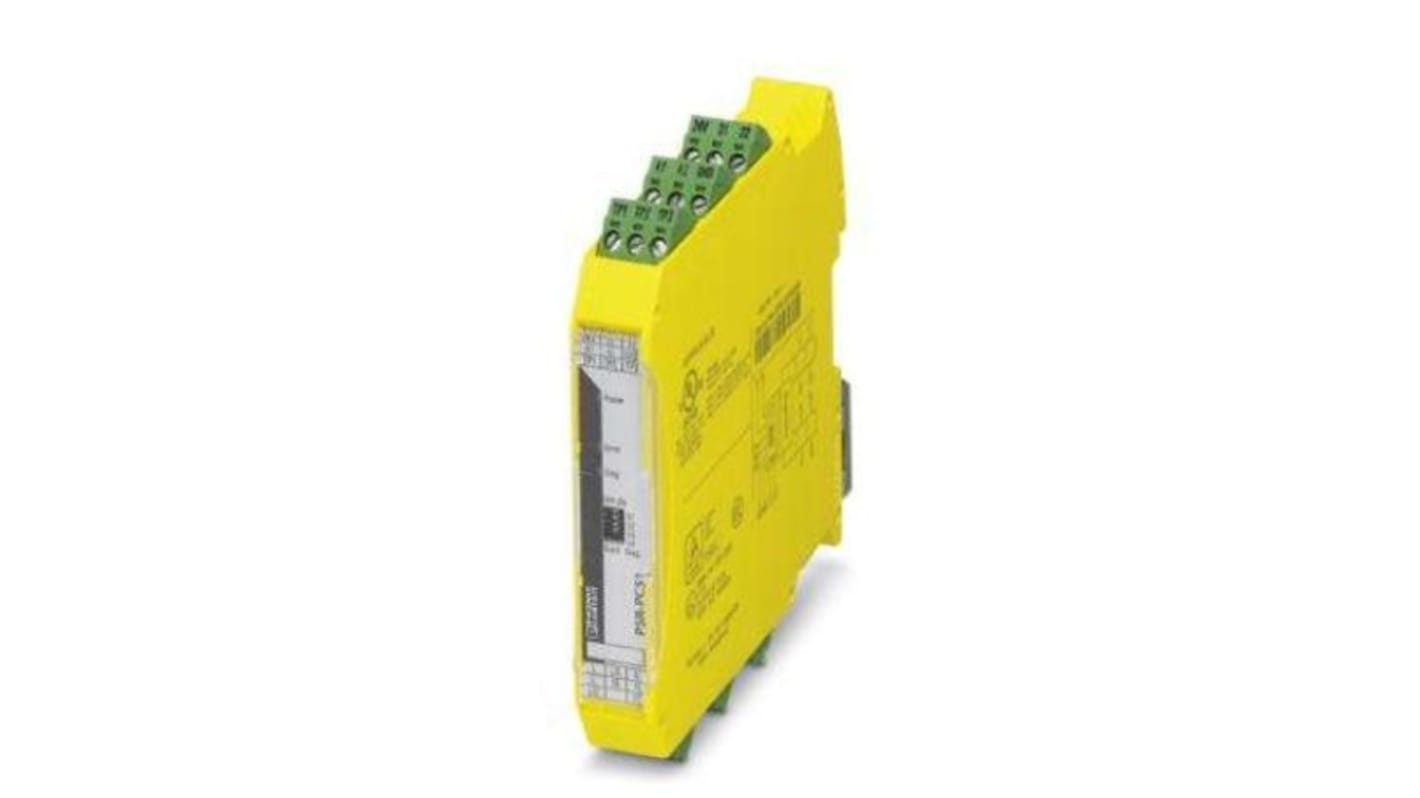

Phoenix Contact PSR-PC51, 24V dc Coupling Relay, 1 Safety Contacts
- RS Stock No.:
- 207-2689
- Mfr. Part No.:
- 2702522
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£371.50
(exc. VAT)
£445.80
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £371.50 |
*price indicative
- RS Stock No.:
- 207-2689
- Mfr. Part No.:
- 2702522
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Coupling Relay | |
| Safety Contacts | 1 | |
| Mount Type | DIN Rail | |
| Power Consumption | 2W | |
| Series | PSR-PC51 | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Standards/Approvals | DIN EN 50178 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 3A | |
| Switching DC Voltage | 125V dc | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 60°C | |
| Length | 114.5mm | |
| Height | 112.2mm | |
| Width | 17.5mm | |
| Safety Category | SIL 3 | |
| Hazardous Area Certification | No | |
| Coil Voltage | 24V dc | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Coupling Relay | ||
Safety Contacts 1 | ||
Mount Type DIN Rail | ||
Power Consumption 2W | ||
Series PSR-PC51 | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Standards/Approvals DIN EN 50178 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 3A | ||
Switching DC Voltage 125V dc | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 60°C | ||
Length 114.5mm | ||
Height 112.2mm | ||
Width 17.5mm | ||
Safety Category SIL 3 | ||
Hazardous Area Certification No | ||
Coil Voltage 24V dc | ||
- COO (Country of Origin):
- DE
The Phoenix Contact coupling relay is designed for electrical isolation and power adaptation for SIL 3 F&G applications. It has earth leakage monitoring.
Integrated DCS test pulse filter
Configurable Off and On state diagnostics
