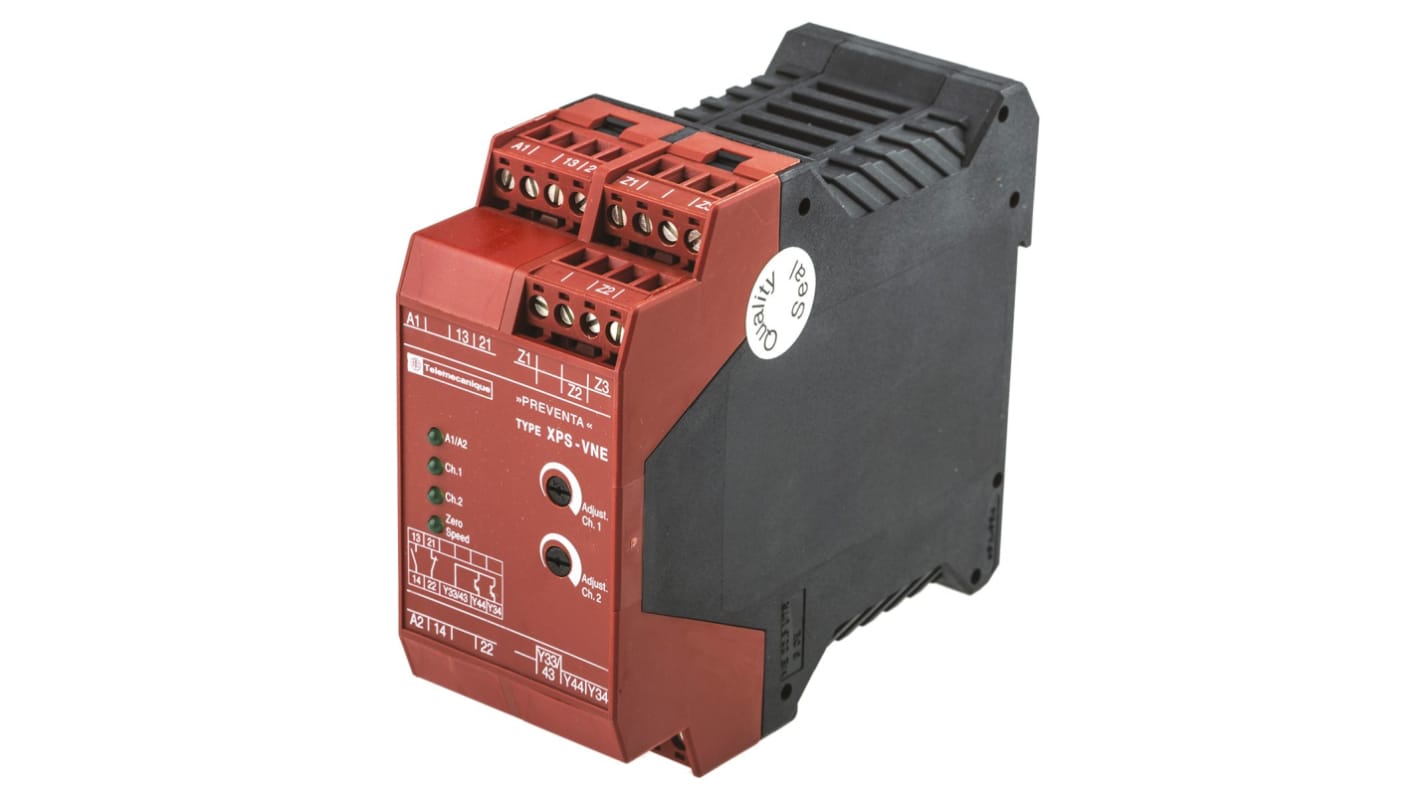

Schneider Electric Dual-Channel Speed/Standstill Monitoring Safety Relay, 24V dc, 2 Safety Contacts
- RS Stock No.:
- 464-485
- Mfr. Part No.:
- XPS VNE1142P
- Brand:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 464-485
- Mfr. Part No.:
- XPS VNE1142P
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Supply Voltage | 24V dc | |
Number of Channels | 2 | |
Safety Contacts | 2 | |
Function | Speed/Standstill Monitoring | |
Auxiliary Contacts | 2 | |
Range | Preventa | |
Terminal Type | Screw | |
Series | XPS VNE | |
Safety Category | 3 | |
Depth | 99mm | |
Width | 45mm | |
Length | 120mm | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Supply Voltage 24V dc | ||
Number of Channels 2 | ||
Safety Contacts 2 | ||
Function Speed/Standstill Monitoring | ||
Auxiliary Contacts 2 | ||
Range Preventa | ||
Terminal Type Screw | ||
Series XPS VNE | ||
Safety Category 3 | ||
Depth 99mm | ||
Width 45mm | ||
Length 120mm | ||
- COO (Country of Origin):
- ID
XPSVNE Schneider Electric Preventa Safety Relay Module Zero Speed Detection.
From Schneider Electric this is the XPSVNE Prevents safety relay module specifically for Zero speed detection. This relay module allows you to detect the stop condition of an electric motor and used for all types of AC and DC motor driven machinery. Application for the XPSVNE safety relay module include the unlock signal for electrically interlocked sliding, removable machine guards, controlling rotation direction signals (reversing motors) and engaging locking brakes when the motor stops.
2 Potentiometers are front face mounted providing you with adjustment of the switching threshold for each circuit input, in turn, allowing adjustment for different motors and applications.
XPSVNE Features.
- Zero speed detection.
- 4 LEDs.
- 2 solid state outputs.
- Captive screw clamp terminals.
- Terminal block removal.
- 2 Front facing potentiometers.
- 60 Hz Frequency motor supply.
- Cabling monitored.
Safety Levels.
- PL d/Category 3 conforming to EN/ISO 13849-1, SILCL 2 conforming to EN/IEC 62061.
Note
Standard module (stock no 464-485) is designed for frequencies up to 60Hz. For motors operating at a frequency higher than 60Hz producing a high frequency remnant voltage, stock no 464-489 should be used
Standards
UL, CSA, TUV.
