Pilz 774580 Expansion Module 24V dc, Single Channel 4 Safety Contacts
- RS Stock No.:
- 340-438
- Mfr. Part No.:
- 774580
- Brand:
- Pilz
Subtotal (1 unit)*
£162.08
(exc. VAT)
£194.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £162.08 |
*price indicative
- RS Stock No.:
- 340-438
- Mfr. Part No.:
- 774580
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Pilz | |
Supply Voltage | 24V dc | |
Number of Channels | 1 | |
Safety Contacts | 4 | |
Function | Expansion Module | |
Series | 774580 | |
Select all | ||
---|---|---|
Brand Pilz | ||
Supply Voltage 24V dc | ||
Number of Channels 1 | ||
Safety Contacts 4 | ||
Function Expansion Module | ||
Series 774580 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

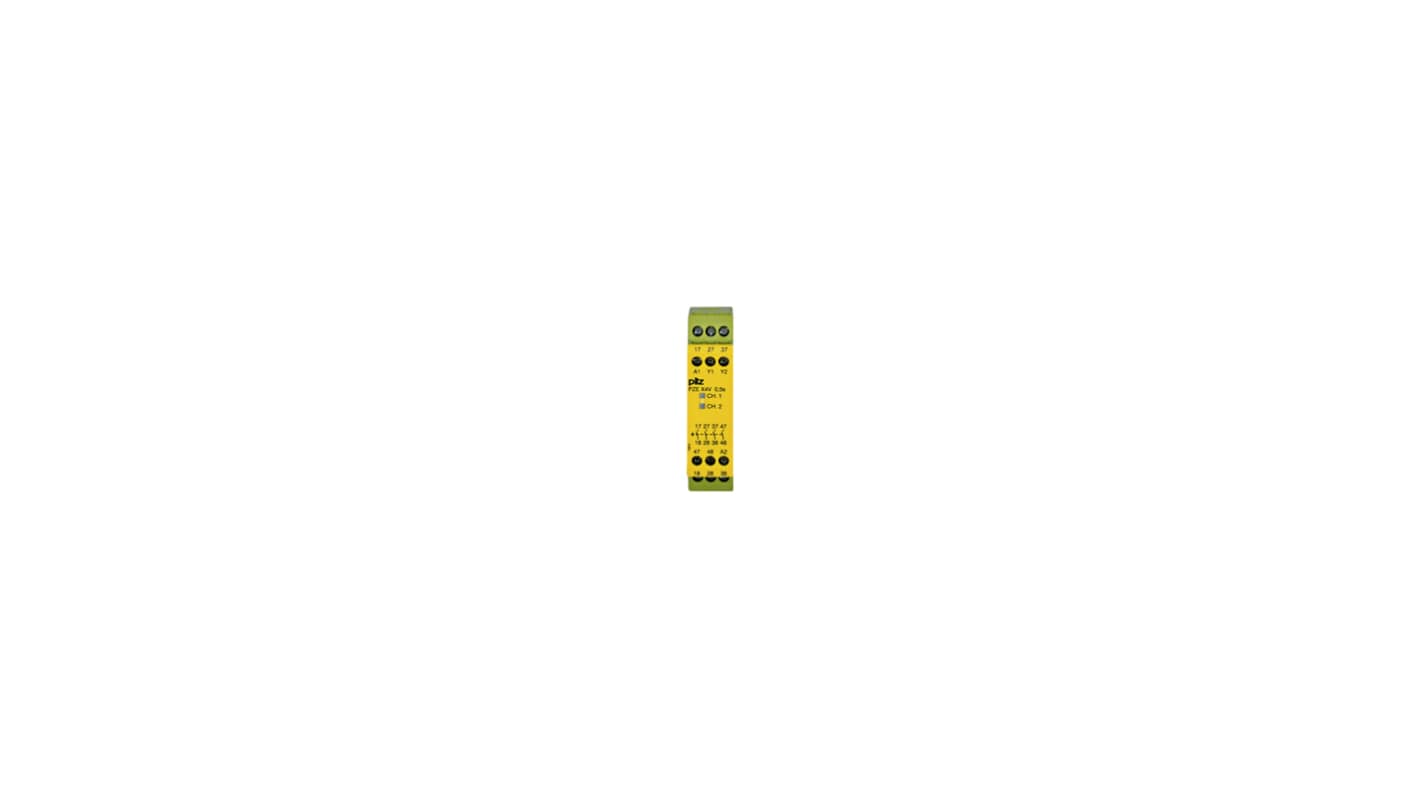

The Pilz Contact Expansion Module features 1-channel wiring and includes 4 normally open timed-delay (N/O t-d) outputs. It operates with a 24 V DC supply voltage (UB) and has a width of 22.5 mm. The module integrates screw terminals for secure and easy connections. This delay-on de-energization contact block is designed for contact expansion in conjunction with safety-related control components. The delay time is permanently set to 0.5 seconds, ensuring a controlled response in safety-critical applications.
CE and UKCA listed
AgCuNi is the relay contact material
RoHS compliant
AgCuNi is the relay contact material
RoHS compliant
