Phoenix Contact PSR-SPP-24DC/URML4/3X1/1X2/B Series Input/Output Module, 24 V
- RS Stock No.:
- 241-6096
- Mfr. Part No.:
- 2903584
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£147.52
(exc. VAT)
£177.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £147.52 |
*price indicative
- RS Stock No.:
- 241-6096
- Mfr. Part No.:
- 2903584
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | PSR-SPP-24DC/URML4/3X1/1X2/B | |
Type | Extension module | |
For Use With | OSSD Signals | |
Supply Voltage | 24 V | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series PSR-SPP-24DC/URML4/3X1/1X2/B | ||
Type Extension module | ||
For Use With OSSD Signals | ||
Supply Voltage 24 V | ||
- COO (Country of Origin):
- DE

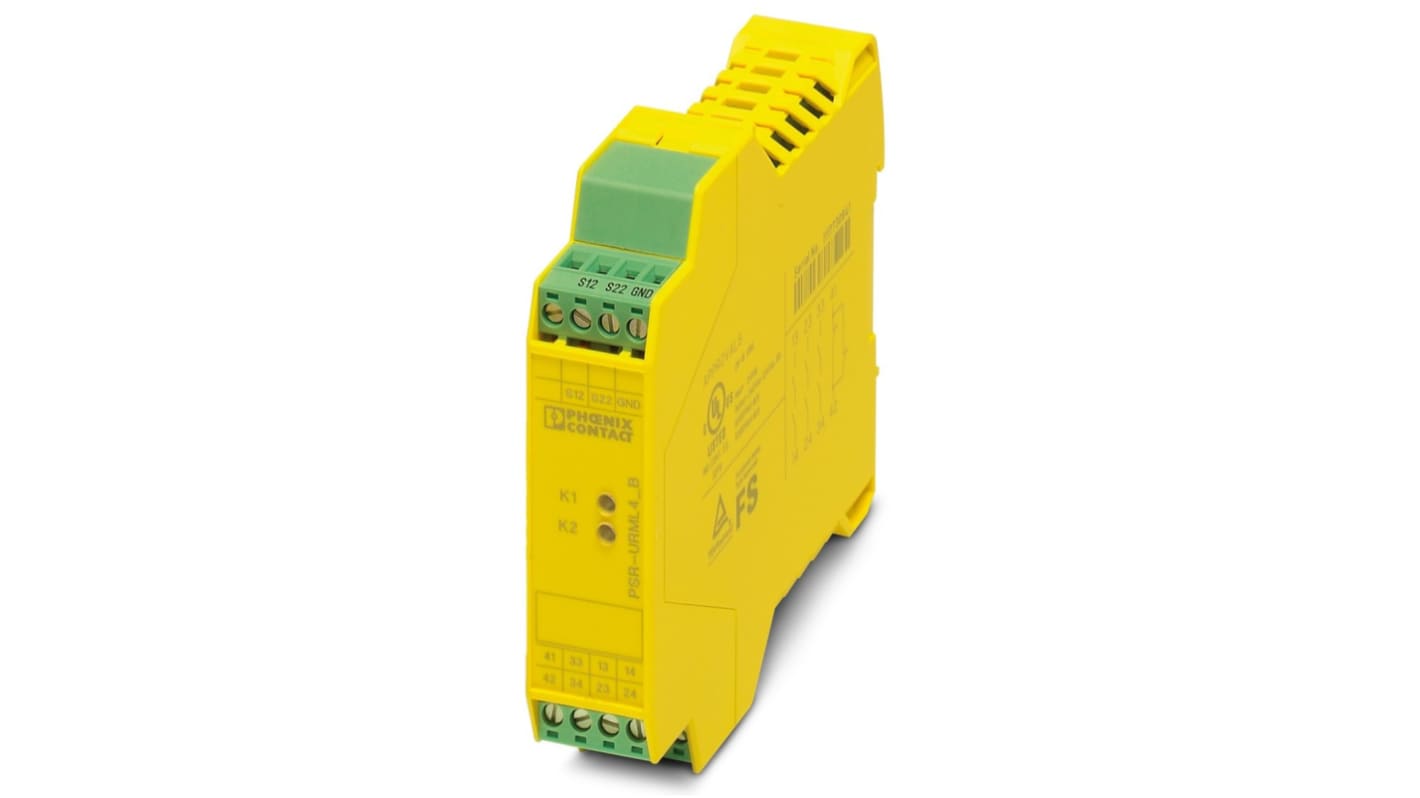

The Phoenix Contact's contact extension device is specifically designed for use in conjunction with electrosensitive protective equipment such as light grids. These systems generally have clocked OSSD signals which enable cross circuits in the cabling to be detected. The relay is resistant to the test pulses generated by the electrosensitive protective equipment receiver.
Mechanical service life approx. 107 cycles
nominal input voltage UN 24 V DC
Typical input current at UN 70 mA DC
Voltage at input/start and feedback circuit 24 V DC
Typical response time 25 ms
Typical release time 10 ms
Concurrence ∞
Recovery time 1 s
nominal input voltage UN 24 V DC
Typical input current at UN 70 mA DC
Voltage at input/start and feedback circuit 24 V DC
Typical response time 25 ms
Typical release time 10 ms
Concurrence ∞
Recovery time 1 s
