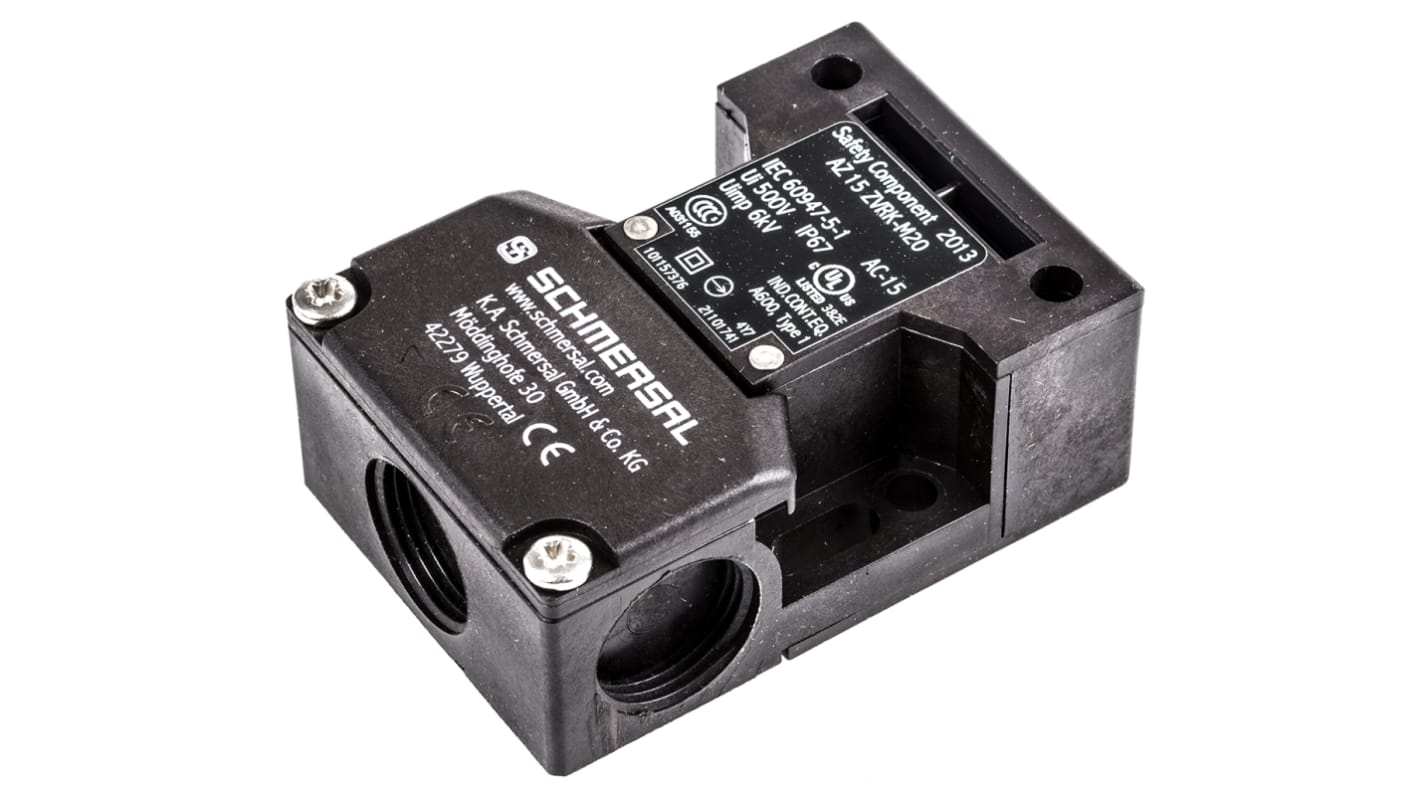

Schmersal AZ15 Safety Interlock Switch, 1NC, Keyed, Glass Fibre Reinforced Thermoplastic
- RS Stock No.:
- 625-0374
- Mfr. Part No.:
- AZ15ZVRK-M20
- Brand:
- Schmersal
Subtotal (1 unit)*
£42.79
(exc. VAT)
£51.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 45 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £42.79 |
*price indicative
- RS Stock No.:
- 625-0374
- Mfr. Part No.:
- AZ15ZVRK-M20
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schmersal | |
Lock Style | Keyed | |
Normal State Configuration | 1NC | |
Safety Contacts | NC | |
Maximum AC Voltage | 230V | |
Maximum DC Voltage | 24V | |
Connection Type | M20 | |
Housing Material | Glass Fibre Reinforced Thermoplastic | |
IP Rating | IP67 | |
Number of Head Directions | 3 | |
Series | AZ15 | |
Depth | 75mm | |
Length | 30mm | |
Width | 52mm | |
Maximum Operating Temperature | +80°C | |
Maximum Current | 4A | |
Minimum Operating Temperature | -30°C | |
Select all | ||
---|---|---|
Brand Schmersal | ||
Lock Style Keyed | ||
Normal State Configuration 1NC | ||
Safety Contacts NC | ||
Maximum AC Voltage 230V | ||
Maximum DC Voltage 24V | ||
Connection Type M20 | ||
Housing Material Glass Fibre Reinforced Thermoplastic | ||
IP Rating IP67 | ||
Number of Head Directions 3 | ||
Series AZ15 | ||
Depth 75mm | ||
Length 30mm | ||
Width 52mm | ||
Maximum Operating Temperature +80°C | ||
Maximum Current 4A | ||
Minimum Operating Temperature -30°C | ||

Schmersal Safety Interlock Switch, 1 NC, Key Lock - AZ15 Series - AZ15ZVRK-M20
Choose this high-performance interlock switch from Schmersal to prevent machine operation or start-up in an unsafe situation. It also stops doors or guards from being opened while robotic machinery is at work, reducing the risk of accidental injury to operators and improving overall worksite safety. The key-actuated unit has a strong and long-lasting thermoplastic housing that's fibre-glass-reinforced for high levels of resistance to corrosion and chemicals. This device has a compact design and will take up minimal space in your control panel.
Features and Benefits
• Compact size of 30 (L) x 52 (W) x 75 (H) mm
• High level of contact reliability when operating with low voltages and currents
• IP (ingress protection) rating of 67 means it's dust-tight and water-resistant
• Wide operating temperature range of -30°C to +80°C for harsh environments
• High level of contact reliability when operating with low voltages and currents
• IP (ingress protection) rating of 67 means it's dust-tight and water-resistant
• Wide operating temperature range of -30°C to +80°C for harsh environments
Application Information
• Mining and mineral processing
• Food handling
• Medical and pharmaceutical industries
• Food handling
• Medical and pharmaceutical industries
Is this interlock switch safe to use in hazardous environments?
The safety switch is housed in a self-extinguishing enclosure that won't ignite in the event of a fire. This makes it safe to use in locations where chemicals and gases may be present.
