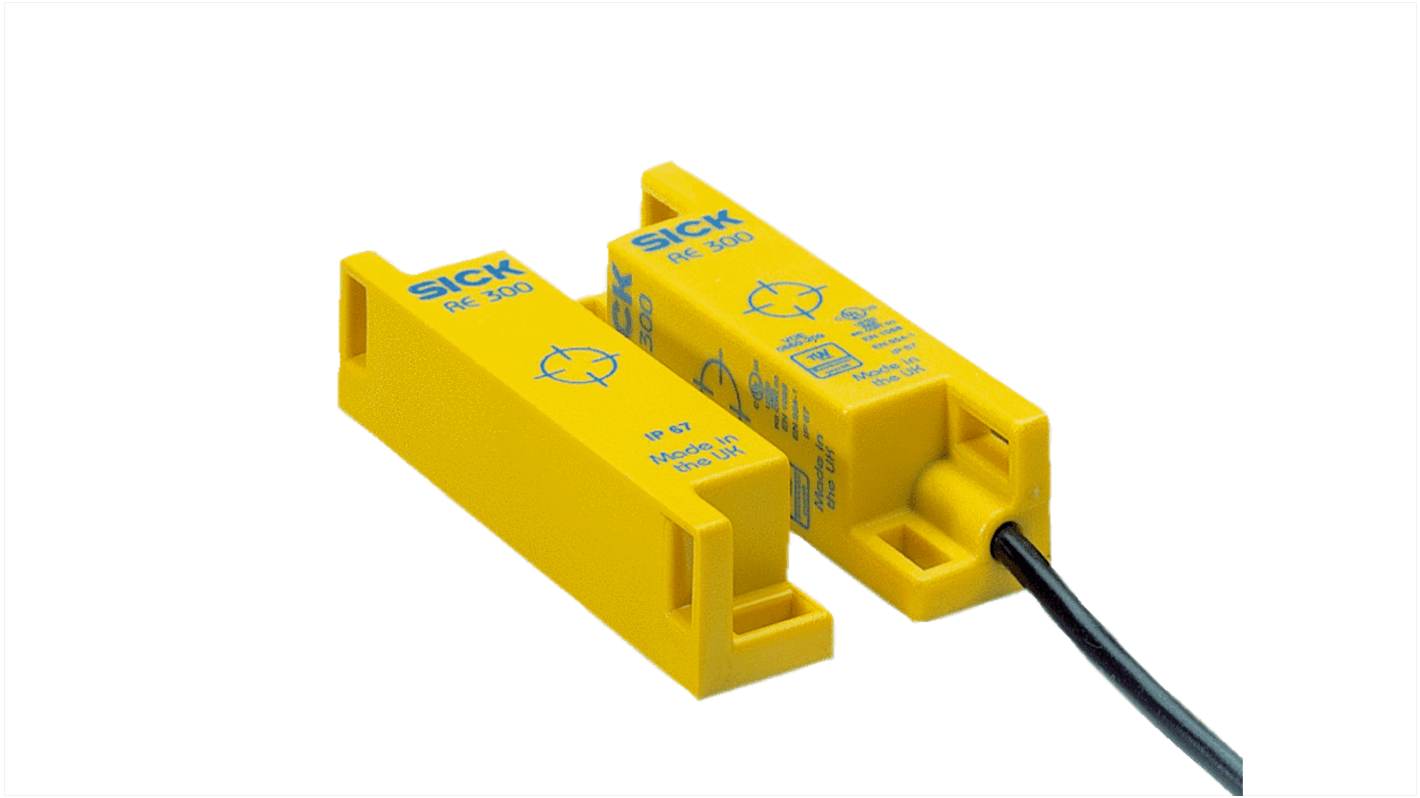

SICK RE300 Safety Interlock Switch, Magnet, ABS, Magnet
- RS Stock No.:
- 285-8983
- Distrelec Article No.:
- 301-25-395
- Mfr. Part No.:
- RE300-DA03P
- Brand:
- SICK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 285-8983
- Distrelec Article No.:
- 301-25-395
- Mfr. Part No.:
- RE300-DA03P
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Safety Interlock Switch | |
| Lock Style | Magnet | |
| Lock Type | Magnet | |
| Actuator Included | No | |
| Housing Material | ABS | |
| Series | RE300 | |
| Contact AC Voltage | 230V ac | |
| Switch Contact Current | 30mA | |
| Minimum Operating Temperature | -10°C | |
| Contact DC Voltage | 30V dc | |
| IP Rating | IP67 | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CE | |
| Length | 82mm | |
| Number of Head Directions | 5 | |
| Depth | 19mm | |
| Width | 19mm | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Safety Interlock Switch | ||
Lock Style Magnet | ||
Lock Type Magnet | ||
Actuator Included No | ||
Housing Material ABS | ||
Series RE300 | ||
Contact AC Voltage 230V ac | ||
Switch Contact Current 30mA | ||
Minimum Operating Temperature -10°C | ||
Contact DC Voltage 30V dc | ||
IP Rating IP67 | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CE | ||
Length 82mm | ||
Number of Head Directions 5 | ||
Depth 19mm | ||
Width 19mm | ||
Overview
The RE300 magnetic safety switches are equipped with complementary-switching normally open (NO)/normally closed (NC) contacts that use coded magnetic actuators. Magnetic safety switches can be used in areas where a high level of contamination occurs. The
Their operating principle enables greater tolerances, making them ideal for applications where precise guidance of guards is difficult.
At a glance
1 NO/1 NC contact
Response range of up to 5 mm
Up to performance level PL e / Cat. 4 (EN ISO 13849)
Direct connection to safe control solution possible
Sensors with connected cable
Your Benefit
Long service life due to durable and low-maintenance design
Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e and Cat. 4 (EN ISO 13849)
High level of machine availability due to high tol
Applications
