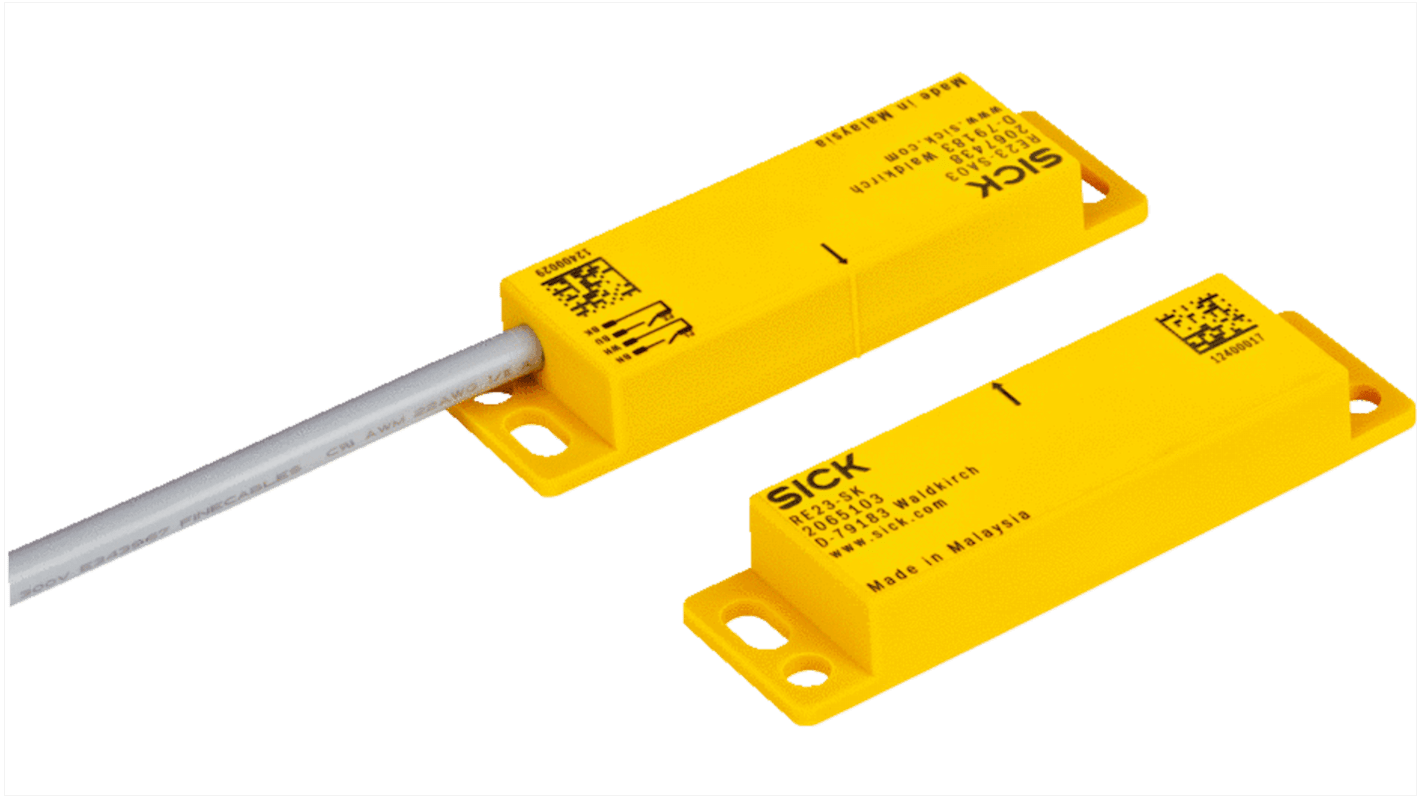

SICK RE23 Safety Interlock Switch, Magnet, ABS, Magnet

RS Stock No.:: 285-8975
Mfr. Part No.:: RE23-SA10
Brand:: SICK

Subtotal (1 unit)*

£65.92

(exc. VAT)

£79.10

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 29 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£65.92

*price indicative

RS Stock No.:: 285-8975
Mfr. Part No.:: RE23-SA10
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Lock Style	Magnet
	Product Type	Safety Interlock Switch
	Lock Type	Magnet
	Actuator Included	No
	Safety Contacts	2
	Housing Material	ABS
	Series	RE23
	Contact AC Voltage	230V ac
	Switch Contact Current	100mA
	IP Rating	IP67
	Minimum Operating Temperature	-30°C
	Contact DC Voltage	30V dc
	Maximum Operating Temperature	60°C
	Hazardous Area Certification	No
	Depth	13mm
	Number of Head Directions	3
	Width	25mm
	Standards/Approvals	CE
	Length	88mm

	Select all
	Brand SICK
	Lock Style Magnet
	Product Type Safety Interlock Switch
	Lock Type Magnet
	Actuator Included No
	Safety Contacts 2
	Housing Material ABS
	Series RE23
	Contact AC Voltage 230V ac
	Switch Contact Current 100mA
	IP Rating IP67
	Minimum Operating Temperature -30°C
	Contact DC Voltage 30V dc
	Maximum Operating Temperature 60°C
	Hazardous Area Certification No
	Depth 13mm
	Number of Head Directions 3
	Width 25mm
	Standards/Approvals CE
	Length 88mm

Datasheet - RE23-SA10

COO (Country of Origin):: MY

Overview

The RE2 magnetic safety switches are equipped with either complementary NC/NO contacts or equivalent N/O contacts which are addressed directly with coded magnetic actuators. Magnetic safety switches are used in areas where a high level of contamination oc

Their principle of operation enables greater tolerances, making them ideal for applications where precise guidance of the protective device is difficult.

At a glance

Response range of up to 9 mm

2 or 3 contacts

Up to performance level PL e / Cat. 4 (EN ISO 13849)

Sensors with plug connector or connected cable

LED status indicator (RE27)

Flexi Loop-compatible M12 plug connector (depending on variant)

Your Benefit

Long service life due to durable and low-maintenance design

Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e and Cat. 4 (EN ISO 13849)

High level of machine availability due to high tol

Applications

Monitoring of safety doors and removable guards

Applications requiring a high standard of hygiene

Applications where precise guidance of the safety door is not possible
