SICK i110 Safety Switch, Power, Fibreglass Reinforced Thermoplastic, Power to Release
- RS Stock No.:
- 285-1823
- Mfr. Part No.:
- i110-M0233
- Brand:
- SICK
Subtotal (1 unit)*
£255.11
(exc. VAT)
£306.13
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £255.11 |
*price indicative
- RS Stock No.:
- 285-1823
- Mfr. Part No.:
- i110-M0233
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Safety Switch | |
| Lock Style | Power | |
| Lock Type | Power to Release | |
| Actuator Included | No | |
| Safety Contacts | 2 NC | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Series | i110 | |
| Contact AC Voltage | 230V ac | |
| Contact DC Voltage | 24V dc | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP67 | |
| Switch Contact Current | 4A | |
| Maximum Operating Temperature | 55°C | |
| Hazardous Area Certification | No | |
| Number of Head Directions | 5 | |
| Depth | 40mm | |
| Standards/Approvals | CE | |
| Width | 42mm | |
| Length | 190mm | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Safety Switch | ||
Lock Style Power | ||
Lock Type Power to Release | ||
Actuator Included No | ||
Safety Contacts 2 NC | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Series i110 | ||
Contact AC Voltage 230V ac | ||
Contact DC Voltage 24V dc | ||
Minimum Operating Temperature -20°C | ||
IP Rating IP67 | ||
Switch Contact Current 4A | ||
Maximum Operating Temperature 55°C | ||
Hazardous Area Certification No | ||
Number of Head Directions 5 | ||
Depth 40mm | ||
Standards/Approvals CE | ||
Width 42mm | ||
Length 190mm | ||
Overview

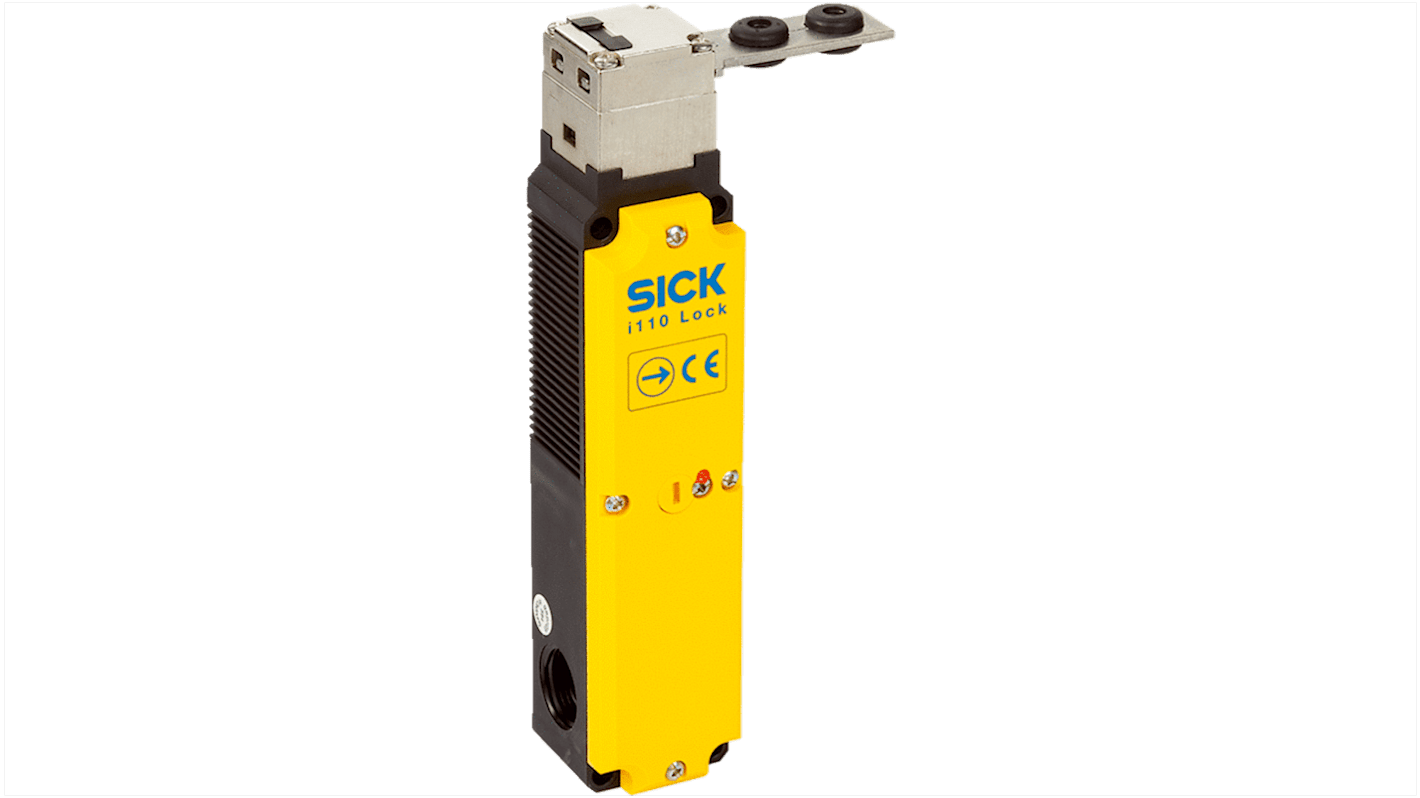

The i110 Lock safety locking device is used for keeping guards safely locked until a hazardous area can be entered. The locking device has a narrow housing made from plastic and a rugged metal actuator head.
This allows the i110 Lock safety switch to achieve the highest restraint forces in this product family.
At a glance
Narrow plastic housing
Metal actuator head
Rigid or mobile actuators
Available with M20 X 1.5 cable entry glands or Flexi Loop-compatible M12 plug connector (depending on variant)
Power to lock or power to release variants
Lock and door monitoring
Your Benefit
Small design simplifies installation and makes it easy to mount directly on the guard door frame
Flexible electrical connectivity due to three cable entry glands
Improved diagnostics due to additional contacts for door monitoring
Simple adjustment due to various actuators that are suitable for any door
Different switching elements offer the appropriate solution for electrical installation
Rugged metal housing provides increased machine reliability, even when the guard has a mechanical offset
Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort
Applications
Fields of applications
Safe monitoring of rotatable, laterally sliding or removable guards
Personal protection for over travel
Process protection for automated production systems
