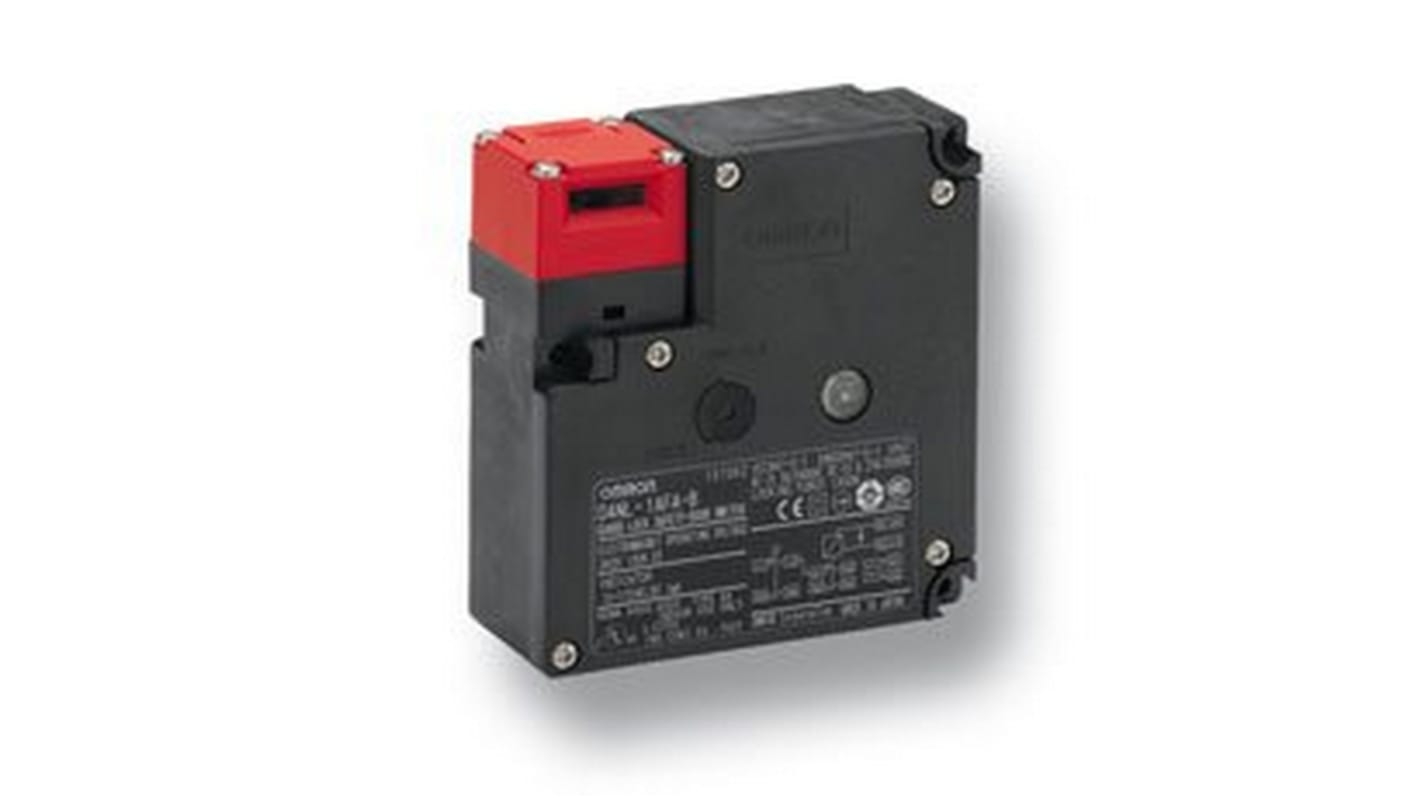

Omron D4NL Solenoid Interlock Switch, Key, Plastic
- RS Stock No.:
- 214-7546
- Distrelec Article No.:
- 301-36-821
- Mfr. Part No.:
- D4NL-2DFA-B4
- Brand:
- Omron
Subtotal (1 unit)*
£199.27
(exc. VAT)
£239.12
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £199.27 |
*price indicative
- RS Stock No.:
- 214-7546
- Distrelec Article No.:
- 301-36-821
- Mfr. Part No.:
- D4NL-2DFA-B4
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Solenoid Interlock Switch | |
| Lock Style | Key | |
| Actuator Included | No | |
| Safety Contacts | 2 NC | |
| Housing Material | Plastic | |
| Series | D4NL | |
| Switch Contact Current | 50mA | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -10°C | |
| Contact DC Voltage | 250V | |
| Contact AC Voltage | 110V ac | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 55°C | |
| Number of Head Directions | 4 | |
| Length | 95mm | |
| Standards/Approvals | CCC, CE, UL | |
| Width | 88.5mm | |
| Depth | 35.5mm | |
| Conduit Entry | G 1/2 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Solenoid Interlock Switch | ||
Lock Style Key | ||
Actuator Included No | ||
Safety Contacts 2 NC | ||
Housing Material Plastic | ||
Series D4NL | ||
Switch Contact Current 50mA | ||
IP Rating IP67 | ||
Minimum Operating Temperature -10°C | ||
Contact DC Voltage 250V | ||
Contact AC Voltage 110V ac | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 55°C | ||
Number of Head Directions 4 | ||
Length 95mm | ||
Standards/Approvals CCC, CE, UL | ||
Width 88.5mm | ||
Depth 35.5mm | ||
Conduit Entry G 1/2 | ||
Omron D4NL Series Solenoid Interlock Switch, 110V Contact AC Voltage, IP67 - D4NL-2DFA-B4
This solenoid interlock switch is a Compact safety device designed to monitor and control access to guarded machinery in industrial environments. It provides an electromechanical locking capability combined with safety monitoring to prevent unintended access during operation, functioning within common automation and electrical control systems where ingress protection and a keyed locking mechanism are required.
Features & Benefits
• IP67-rated enclosure for dust-tight and immersion protection
• Two normally closed safety contacts for circuit monitoring
• Operates on AC at 110V and on DC up to 250V for versatile supply use
• Plastic housing reduces weight and resists corrosion in damp areas
• Four selectable head orientations for flexible mounting arrangements
• Key-actuated lock for secure operator control and interlock functionality
• Two normally closed safety contacts for circuit monitoring
• Operates on AC at 110V and on DC up to 250V for versatile supply use
• Plastic housing reduces weight and resists corrosion in damp areas
• Four selectable head orientations for flexible mounting arrangements
• Key-actuated lock for secure operator control and interlock functionality
Applications
• Suitable for machine guard door locking in automated lines
• Used for access control on conveyor maintenance panels
• Ideal for safety circuits in assembly cell enclosures
• Can be used for electrical cabinet interlocking in production areas
• Used for access control on conveyor maintenance panels
• Ideal for safety circuits in assembly cell enclosures
• Can be used for electrical cabinet interlocking in production areas
What conduit provision does this device offer for cable routing?
It accepts a G1/2 conduit entry to integrate with standard conduit and gland systems.
What ambient temperature range can I install it in?
The unit is rated for operation from -10°C to 55°C to suit typical factory conditions.
How Compact is the unit for tight installations?
The design has a short overall length of 95mm for constrained mounting spaces.
What form of lock actuation does it use and how does that affect operation?
It employs a keyed lock style that requires the key to unlock the actuator, providing controlled manual release of the interlock.
Are there any hazardous-area approvals for this product?
It has no hazardous-area certification and should not be specified where such approvals are mandatory.
