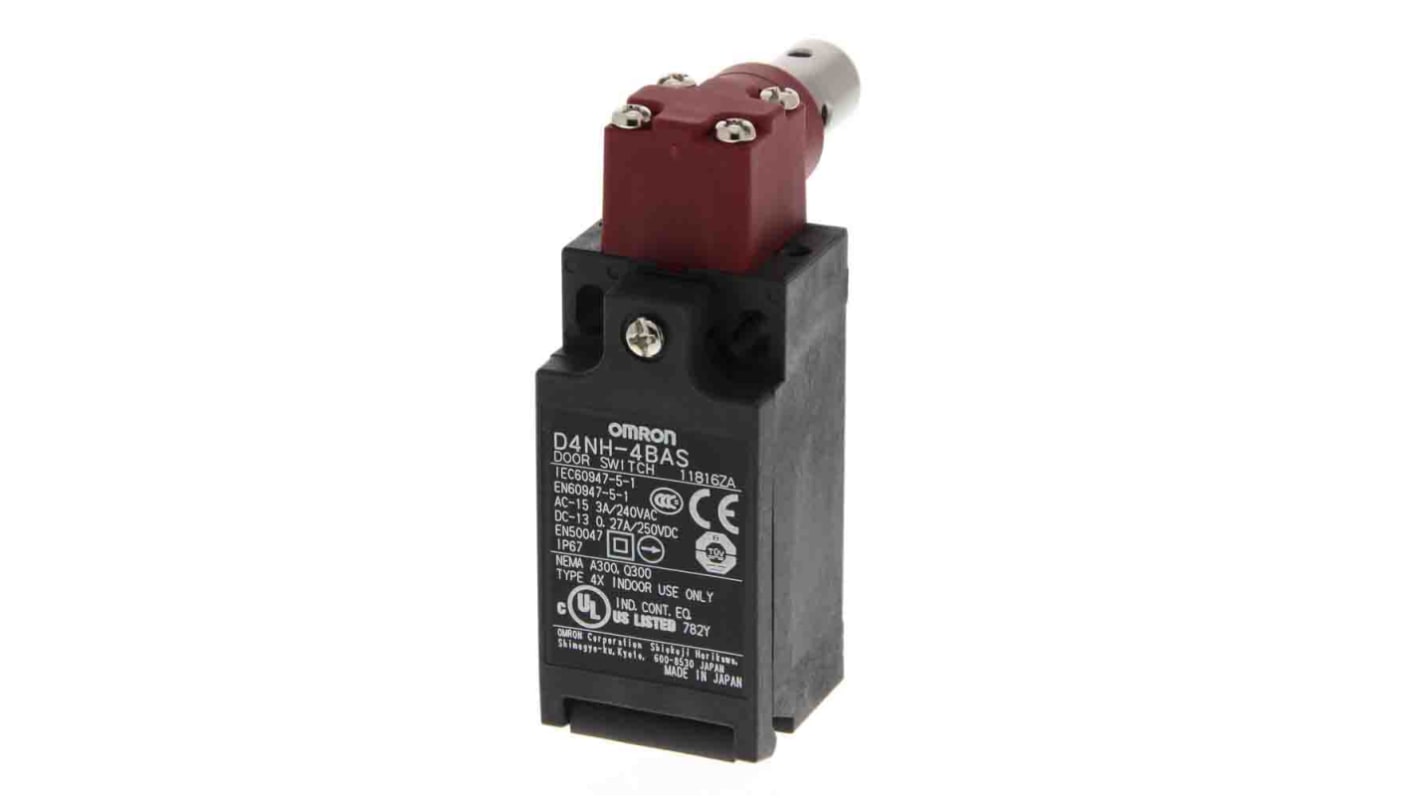

Omron D4NH Safety Rated Interlock Switch, Hinge Actuator Included, Plastic, Hinge

View all Safety Interlock Switches

Subtotal (1 unit)*

£53.23

(exc. VAT)

£63.88

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
  • Plus 14 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£53.23

*price indicative

RS Stock No.:
214-6728
Mfr. Part No.:
D4NH-4AAS
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Product Type

Safety Rated Interlock Switch

Lock Style

Hinge

Lock Type

Hinge

Actuator Included

Yes

Housing Material

Plastic

Series

D4NH

Contact AC Voltage

240V ac

Switch Contact Current

3A

IP Rating

IP67

Minimum Operating Temperature

-30°C

Contact DC Voltage

250V

Hazardous Area Certification

No

Maximum Operating Temperature

70°C

Depth

73mm

Number of Head Directions

4

Length

82.5mm

Standards/Approvals

CCC, UL, CE

Width

31mm

Conduit Entry

M20

Omron D4NH Series Safety Rated Interlock Switch, 240V AC Contact Voltage, IP67 - D4NH-4AAS


This safety-rated interlock switch is a Compact hinge-lock device intended to monitor guard doors and safety equipment in industrial automation and machinery settings. It operates as a safety interlock with an integral actuator and provides fail-safe separation of normally closed contacts during guard opening, making it suitable for machine safety circuits where direct opening operation is required.

Features & Benefits


• IP67 protection for immersion resistance and sealed environments
• 3A contact rating for switching standard control loads
• Operates at 240V AC and 250V DC for versatile supply use
• Four head mounting directions for flexible installation
• Plastic housing reduces weight and offers double-insulation protection
• Rated for operation from -30°C to 70°C for high-temperature use

Applications


• Suitable for guarding access panels on production machinery
• Ideal for safety circuits in packaging and assembly lines
• used with interlocked doors on electrical cabinets and enclosures
• Can be used for safety monitoring of robotic cell barriers
• Suitable for retrofit where M20 conduit connection is required

What type of conduit connection does it use for wiring?


The switch accepts an M20 conduit entry enabling use of M-style cable glands and European-style conduit fittings.

How does the internal contact mechanism behave under contamination?


The NC contacts incorporate a direct opening mechanism that forces separation even if metal deposition occurs, maintaining safe circuit interruption.

What are the expected mechanical and electrical lifespans?


Mechanical endurance is specified at a minimum of 1,000,000 operations and electrical endurance up to 500,000 operations for a resistive 3A load at 250VAC.

Can the head orientation be altered on site?


Yes, the head can be remounted in four orientations by removing the head screws to suit installation requirements.
