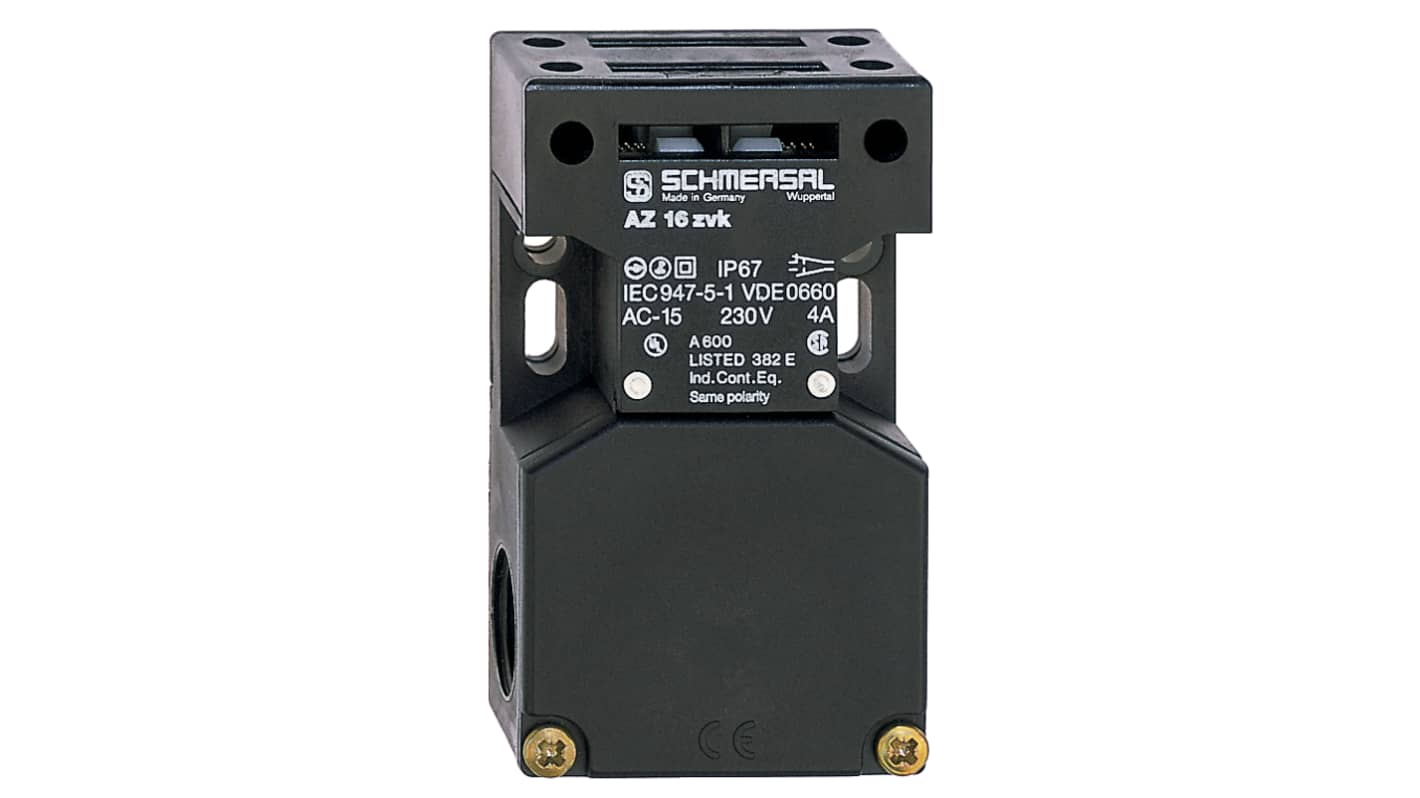

Schmersal AZ16 Safety Switch, Actuator Actuator Included, Fibreglass Reinforced Thermoplastic

View all Safety Interlock Switches

Subtotal (1 unit)*

£86.88

(exc. VAT)

£104.26

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 7 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£86.88

*price indicative

RS Stock No.:
335-922
Mfr. Part No.:
AZ 16-03ZVK-M20
Brand:
Schmersal
Find similar products by selecting one or more attributes.
Select all

Brand

Schmersal

Product Type

Safety Switch

Lock Style

Actuator

Actuator Included

Yes

Safety Contacts

3 NC

Housing Material

Fibreglass Reinforced Thermoplastic

Series

AZ16

Contact DC Voltage

24V dc

Minimum Operating Temperature

30°C

Number of Auxiliary Contacts

1

Contact AC Voltage

230V ac

Hazardous Area Certification

No

Maximum Operating Temperature

80°C

Depth

90mm

Length

3mm

Standards/Approvals

EN ISO 13849-1, EN IEC 60947-5-1, EN ISO 14119, cULus, CCC

Width

52mm

RoHS Status: Exempt

COO (Country of Origin):
DE
The Schmersal Safety switches with a separate actuator feature a thermoplastic enclosure and are double-insulated for enhanced safety. They have dimensions of 52 mm x 90 mm x 30 mm and come with universal coding. Designed for long life.

High level of contact reliability with low voltages and currents

Insensitive to soiling

Slotted holes for adjustment, circular holes for location
