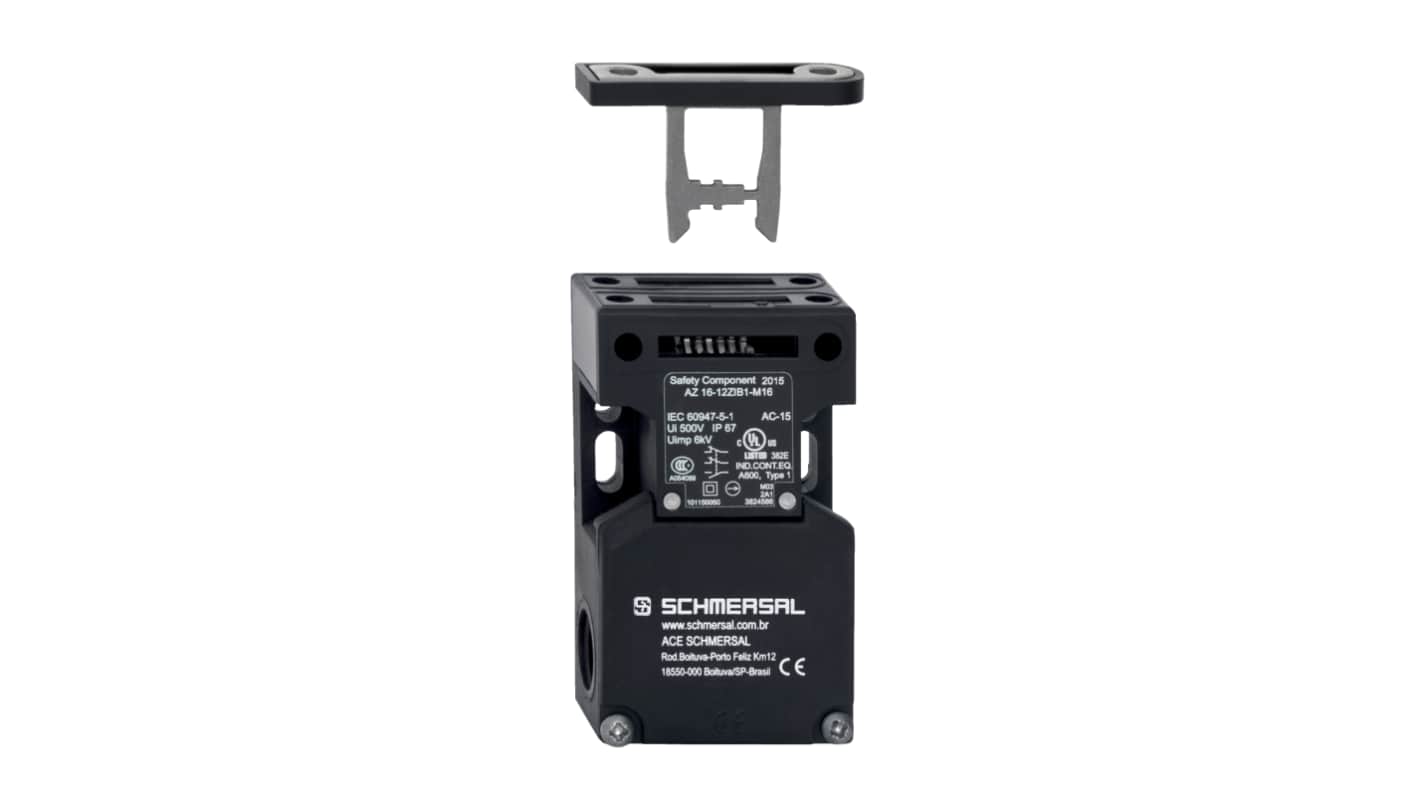

Schmersal AZ16 Safety Switch, Actuator Actuator Included, Fibreglass Reinforced Thermoplastic

RS Stock No.:: 335-706
Mfr. Part No.:: AZ 16-12ZI-B6R-M16
Brand:: Schmersal

Schmersal AZ16 Safety Switch, Actuator Actuator Included, Fibreglass Reinforced Thermoplastic

Subtotal (1 unit)*

£101.46

(exc. VAT)

£121.75

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

9 unit(s) shipping from 16 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£101.46

*price indicative

RS Stock No.:: 335-706
Mfr. Part No.:: AZ 16-12ZI-B6R-M16
Brand:: Schmersal

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schmersal
	Lock Style	Actuator
	Product Type	Safety Switch
	Actuator Included	Yes
	Safety Contacts	2 NC, NO
	Housing Material	Fibreglass Reinforced Thermoplastic
	Series	AZ16
	Minimum Operating Temperature	-30°C
	Contact AC Voltage	230V ac
	Contact DC Voltage	24V dc
	IP Rating	IP67
	Number of Auxiliary Contacts	1
	Hazardous Area Certification	No
	Maximum Operating Temperature	80°C
	Standards/Approvals	CCC, cULus, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
	Width	52mm
	Length	30mm
	Depth	90mm
	Conduit Entry	3 x (M16 x 1.5)

	Select all
	Brand Schmersal
	Lock Style Actuator
	Product Type Safety Switch
	Actuator Included Yes
	Safety Contacts 2 NC, NO
	Housing Material Fibreglass Reinforced Thermoplastic
	Series AZ16
	Minimum Operating Temperature -30°C
	Contact AC Voltage 230V ac
	Contact DC Voltage 24V dc
	IP Rating IP67
	Number of Auxiliary Contacts 1
	Hazardous Area Certification No
	Maximum Operating Temperature 80°C
	Standards/Approvals CCC, cULus, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
	Width 52mm
	Length 30mm
	Depth 90mm
	Conduit Entry 3 x (M16 x 1.5)

Datasheet - AZ 16-12ZI-B6R-M16

RoHS Status: Exempt

COO (Country of Origin):: DE

Schmersal AZ16 Series Safety Switch, IP67, Fibreglass Reinforced Thermoplastic Housing - AZ 16-12ZI-B6R-M16

This safety switch provides a compact, rugged interlock solution for industrial guarding and access control, designed to interrupt hazardous machine operation when actuated. It is suited to environments where moisture resistance and standardised safety performance are required, offering auxiliary signalling and a pre-fitted actuator for immediate installation.

Features and Benefits:

• IP67-rated enclosure protects internal contacts from dust and immersion
• Fibreglass-reinforced thermoplastic housing reduces corrosion risks
• Two NC and one NO contact configuration supports safety circuits
• Auxiliary contact offers an additional signalling output
• Accepts three M16x1.5 conduit entries for secure cabling
• Rated for 230Vac and 24Vdc operation to match common supplies

Applications

• Suitable for guarding on automated production lines
• Used with access doors requiring safety interlock switching
• Ideal for wet or washdown manufacturing environments
• Can be used for machine isolation in assembly cells
• Used for retrofitting existing safety control systems

What temperature range can it operate within?

It functions between -30°C and 80°C.

Is it certified for recognised safety standards?

It meets EN IEC 60947-5-1, EN ISO 13849-1 and EN ISO 14119 and holds CCC and cULus approvals.

How is the electrical connection configured?

Wiring is routed through three M16x1.5 conduit entries with dedicated safety and auxiliary contacts.

Does the unit include the actuator and how is it secured?

An actuator is supplied with the unit and is designed for actuator-style locking engagement.

Is this suitable for classified hazardous-area installations?

It is not certified for hazardous-area use and should not be applied where such certification is required.
