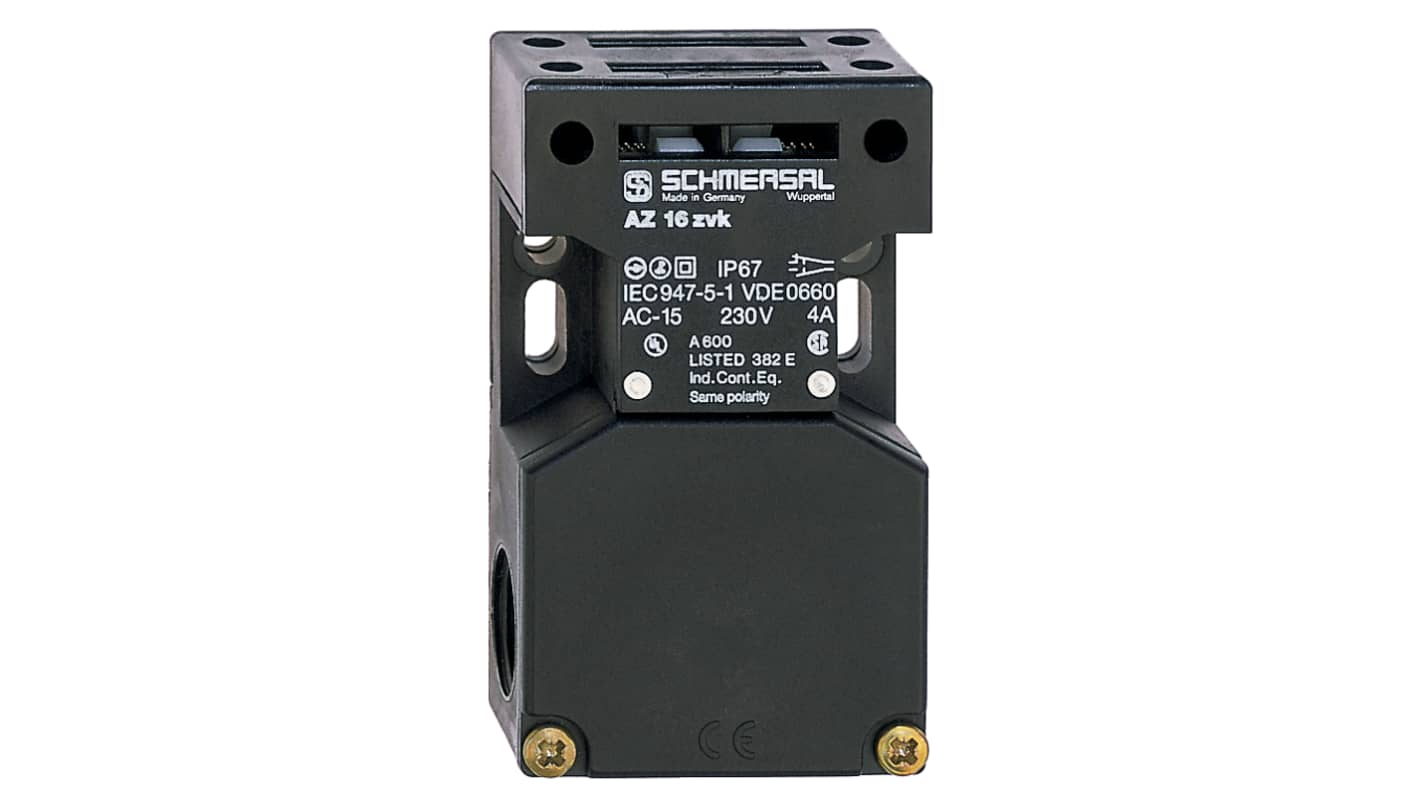

Schmersal AZ16 Safety Switch, Actuator, Fibreglass Reinforced Thermoplastic

RS Stock No.:: 335-686
Mfr. Part No.:: AZ16-02ZVK-M16
Brand:: Schmersal

Schmersal AZ16 Safety Switch, Actuator, Fibreglass Reinforced Thermoplastic

Subtotal (1 unit)*

£51.53

(exc. VAT)

£61.84

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

10 unit(s) shipping from 02 October 2026
Plus 36 unit(s) shipping from 16 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£51.53

*price indicative

RS Stock No.:: 335-686
Mfr. Part No.:: AZ16-02ZVK-M16
Brand:: Schmersal

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schmersal
	Lock Style	Actuator
	Product Type	Safety Switch
	Actuator Included	No
	Safety Contacts	2
	Housing Material	Fibreglass Reinforced Thermoplastic
	Series	AZ16
	IP Rating	IP67
	Minimum Operating Temperature	-30°C
	Contact AC Voltage	230V ac
	Contact DC Voltage	24V dc
	Number of Auxiliary Contacts	1
	Hazardous Area Certification	No
	Maximum Operating Temperature	80°C
	Depth	90mm
	Width	52mm
	Number of Head Directions	3
	Standards/Approvals	CCC, EN ISO 14119, EN ISO 13849-1, EN IEC 60947-5-1, cULus
	Length	30mm
	Conduit Entry	3 x (M16 x 1.5)

	Select all
	Brand Schmersal
	Lock Style Actuator
	Product Type Safety Switch
	Actuator Included No
	Safety Contacts 2
	Housing Material Fibreglass Reinforced Thermoplastic
	Series AZ16
	IP Rating IP67
	Minimum Operating Temperature -30°C
	Contact AC Voltage 230V ac
	Contact DC Voltage 24V dc
	Number of Auxiliary Contacts 1
	Hazardous Area Certification No
	Maximum Operating Temperature 80°C
	Depth 90mm
	Width 52mm
	Number of Head Directions 3
	Standards/Approvals CCC, EN ISO 14119, EN ISO 13849-1, EN IEC 60947-5-1, cULus
	Length 30mm
	Conduit Entry 3 x (M16 x 1.5)

Datasheet - AZ16-02ZVK-M16

RoHS Status: Exempt

COO (Country of Origin):: DE

Schmersal AZ16 Series Safety Switch, IP67, 30mm Length - AZ16-02ZVK-M16

This safety switch is a Compact interlock device designed to monitor access points and interrupt circuits in industrial environments. It operates across a wide temperature range and is constructed for use where ingress protection and constrained installation space are important.

Features and Benefits:

• IP67 enclosure prevents dust ingress and withstands temporary immersion
• Fibreglass reinforced thermoplastic housing reduces weight and resists corrosion
• Two safety contacts provide reliable circuit interruption capability
• One auxiliary contact enables integration with control circuitry
• Conduit entry with three M16x1.5 ports simplifies cable routing
• Operates between -30°C and 80°C for varied ambient conditions

Applications

• Suitable for safeguarding machine guards and access doors
• Used with conveyor shutdown systems requiring contact monitoring
• Ideal for environments needing sealed enclosures and washdown protection
• Can be used for integrating into control panels with auxiliary feedback
• Used for systems where Compact interlock devices are required

What electrical voltages can the main contacts handle?

The safety contacts are rated for switching at 230 V ac.

Is there a low-voltage option for control circuits?

An auxiliary contact is provided for 24 V dc control or signalling.

How many head orientations are available for mounting flexibility?

The device offers three head directions to assist installation alignment.

What certification standards govern the device's safety aspects?

It conforms to EN ISO 14119, EN ISO 13849-1, and EN IEC 60947-5-1 among listed approvals.

Does the unit carry any North American recognition?

It holds cULus recognition for applicable safety requirements.
