Siemens 3SE5 Series Safety Enabling Switch, 5 Position, 1 NO/2 NC, IP67, IP65
- RS Stock No.:
- 153-080
- Mfr. Part No.:
- 3SE5322-0SJ22
- Brand:
- Siemens
Subtotal (1 unit)*
£337.35
(exc. VAT)
£404.82
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £337.35 |
*price indicative
- RS Stock No.:
- 153-080
- Mfr. Part No.:
- 3SE5322-0SJ22
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Series | 3SE5 | |
| Product Type | Safety Enabling Switch | |
| Contact Configuration | 1 NO/2 NC | |
| Number of Positions | 5 | |
| IP Rating | IP67, IP65 | |
| Terminal Type | Screw | |
| Housing Material | Plastic | |
| Minimum Operating Temperature | -25°C | |
| Switch Contact Current | 10A | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 115V ac | |
| Hazardous Area Certification | No | |
| Standards/Approvals | CE, CCC, UKCA, EN 50047, IEC 60068-2-27, cULus EAC | |
| Mechanical Life | 1000000Operations | |
| Reset Type | Spring | |
| Length | 185mm | |
| Width | 54mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Series 3SE5 | ||
Product Type Safety Enabling Switch | ||
Contact Configuration 1 NO/2 NC | ||
Number of Positions 5 | ||
IP Rating IP67, IP65 | ||
Terminal Type Screw | ||
Housing Material Plastic | ||
Minimum Operating Temperature -25°C | ||
Switch Contact Current 10A | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 115V ac | ||
Hazardous Area Certification No | ||
Standards/Approvals CE, CCC, UKCA, EN 50047, IEC 60068-2-27, cULus EAC | ||
Mechanical Life 1000000Operations | ||
Reset Type Spring | ||
Length 185mm | ||
Width 54mm | ||
- COO (Country of Origin):
- DE

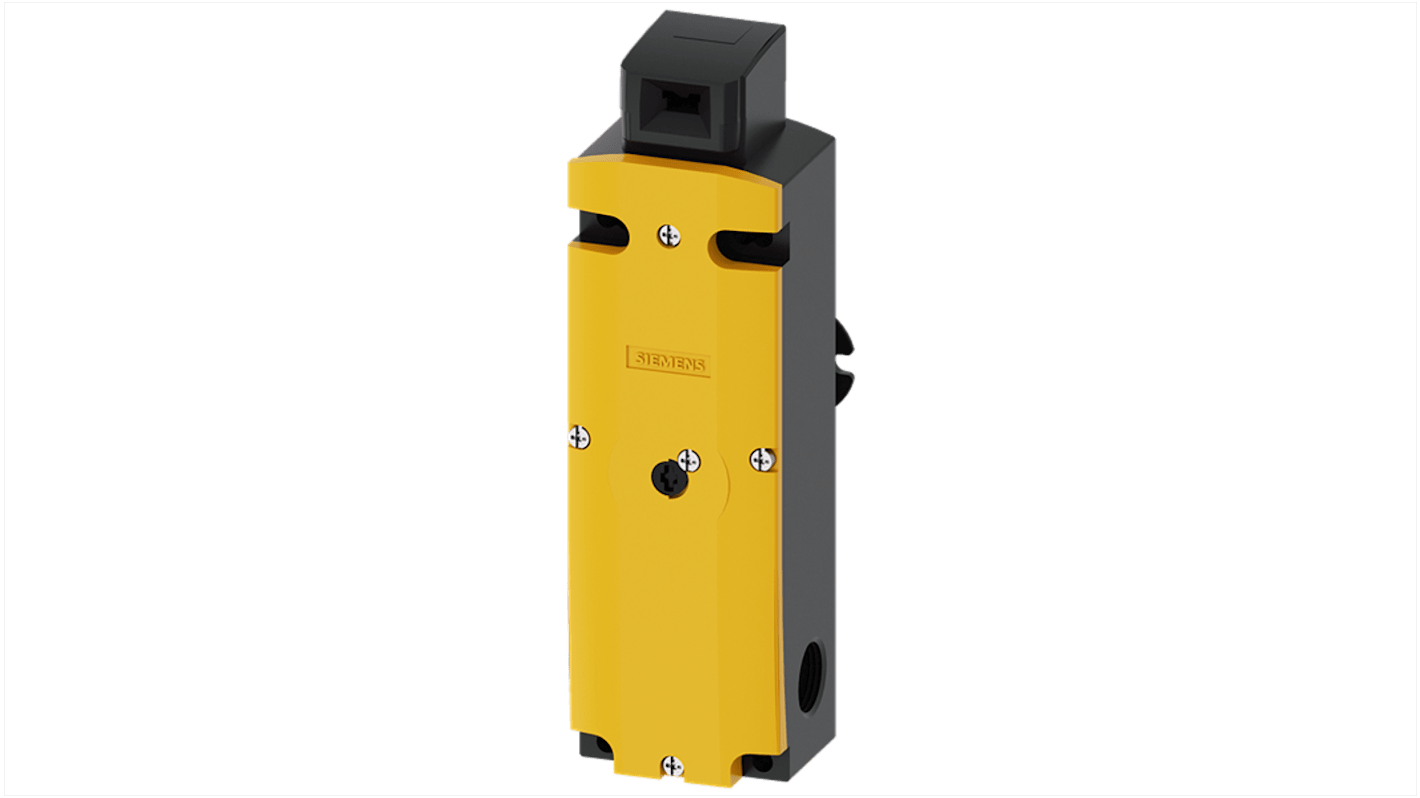

The Siemens safety position switch with tumbler is engineered to provide a reliable safety solution for industrial applications. This device boasts a robust design that accommodates five approaches, ensuring versatility in various setups. With a locking force of 1300 N and a spring-lock mechanism, it guarantees a secure operation. The inclusion of an emergency release function further enhances its reliability, enabling swift response in critical situations. Crafted from durable plastic, the switch is built to withstand challenging environmental conditions, operating effectively within a temperature range of -25°C to +60°C. Designed with user safety in mind, this switch is an ideal choice for applications requiring stringent safety measures.
Secure locking mechanism with spring-actuated lock
Five directions of approach for adaptability
Emergency release options for quick access
Durable materials withstand harsh environments
High mechanical service life reduces maintenance needs
