RS PRO PT100 RTD Sensor 6 mm Dia, 200 mm Long, 4 Wire, Class B 450 °C Max IP67

View all RTD Sensors
Bulk discount available

Subtotal (1 unit)*

£74.88

(exc. VAT)

£89.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 72 unit(s) shipping from 09 March 2026
  • Plus 12 unit(s) shipping from 09 March 2026
  • Plus 100 unit(s) shipping from 24 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 5£74.88
6 - 11£71.14
12 +£67.39

*price indicative

RS Stock No.:
285-633
Distrelec Article No.:
303-90-940
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Sensor Type

PT100

Product Type

RTD Sensor

Probe Length

200mm

Probe Diameter

6 mm

Minimum Temperature Sensed

-50°C

Maximum Temperature Sensed

450°C

Termination Type

Probe

Cable Length

1.5mm

Probe Material

Stainless Steel

Cable Entry Size

M20

Number of Wires

4

Hazardous Area Certification

IP67

Accuracy

Class B

COO (Country of Origin):
GB

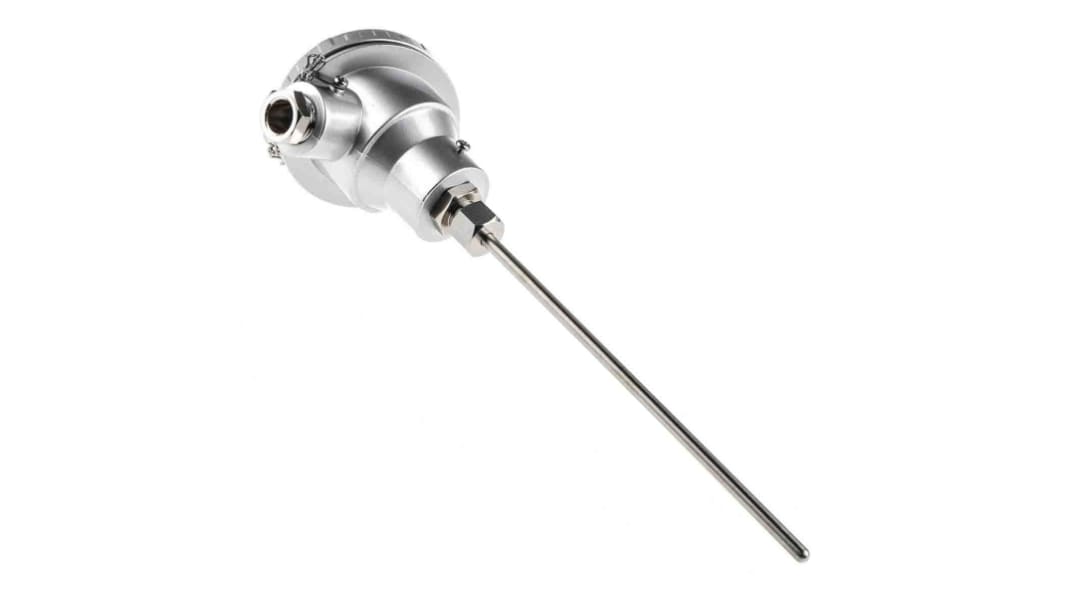

Heavy duty Pt100 probe with terminal head

Class B, 4 wire connection

Available in probe lengths between 150mm & 600mm

6.0mm diameter in 316 stainless steel

With or without 1/2"BSP parallel process connection

Aluminium alloy weatherproof connection head

Sensor temperature rating -50°C to +450°C

RS PRO PRT PT100 Probe with Terminal Head


From RS PRO, comes a range of high-quality PRT (Platinum resistance thermometer) PT100 probes with a terminal head. Manufactured with an aluminium alloy weatherproof connection head these heavy-duty PRT probes are an excellent solution for temperature measurement.

Features and benefits:


  • A wide operating temperature range: -100 °C to +450°C

  • 6mm probe diameter

  • IP67 rating which provides protection from total dust ingress and immersion between 15cm and 1 meter in depth.

  • Conforms to IEC751 standards

  • Class B, 4 wire connection

    • Applications


    These PRT probes have a variety of application use such as;

  • Heating

  • Air conditioning

  • Stoves and grills

  • Food processing

  • Energy

    • What's included?


  • All weather terminal head

  • M20 cable gland

    • Why choose RS PRO?


    RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

    PT100 Probes with Industrial Terminal Heads


    Supplied with

    All weather terminal head and M20 cable gland.
