RS PRO PT100 RTD Sensor, 6mm Dia, 200mm Long, 4 Wire, Class B +450°C Max
- RS Stock No.:
- 872-2733
- Brand:
- RS PRO
6 In stock - FREE next working day delivery available
3 available from Europe for delivery within 2 working day(s).
Price Each
£76.34
(exc. VAT)
£91.61
(inc. VAT)
Units | Per unit |
---|---|
1 - 5 | £76.34 |
6 - 11 | £72.52 |
12 + | £68.70 |
- RS Stock No.:
- 872-2733
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

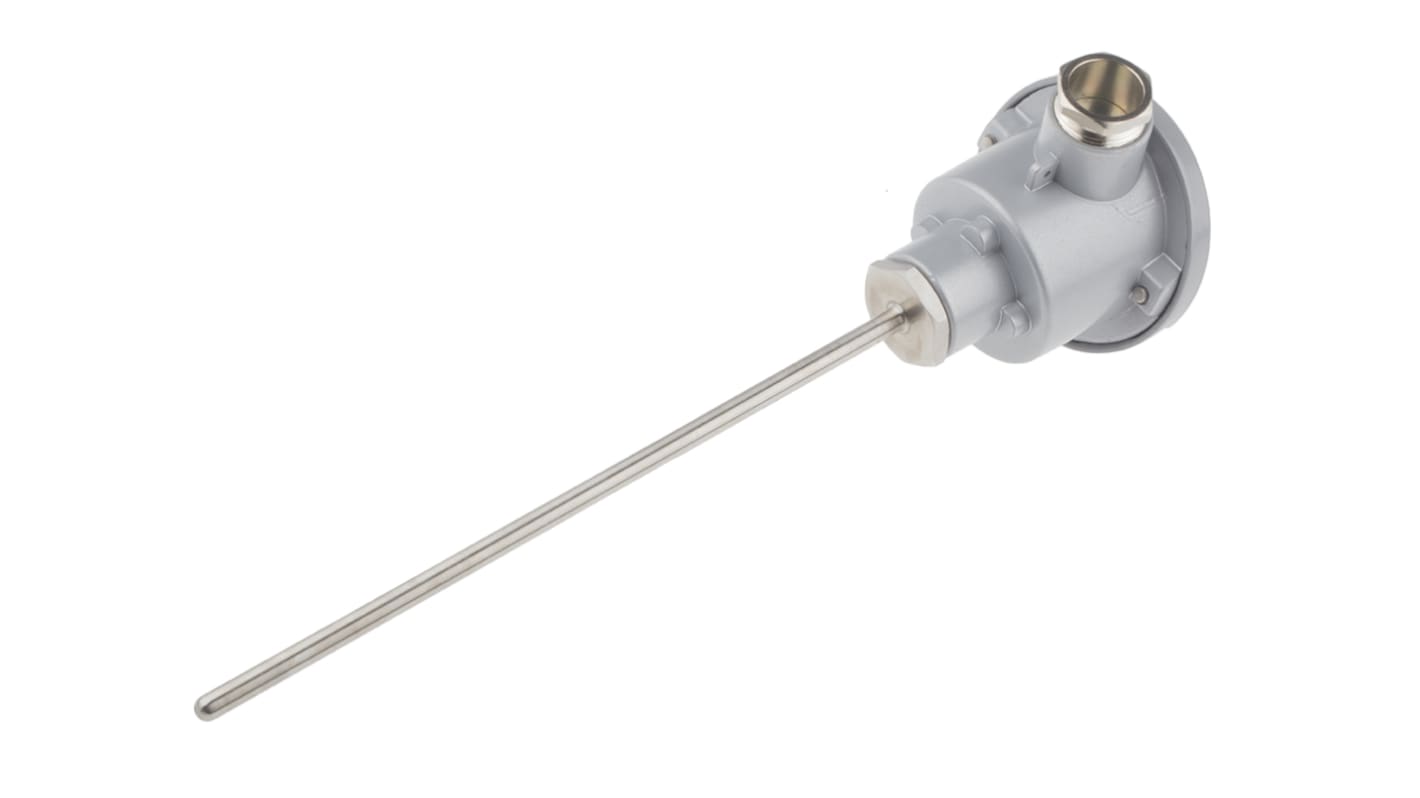

PRT with DIN B Head
Pt100 4 wire class B resistance thermometer with DIN B head.
Various probe available lengths
6mm diameter in 316 stainless steel
Stainless steel plug
Sensor temperature rating -100ºC to +450 ºC
Conforms to IEC 751
6mm diameter in 316 stainless steel
Stainless steel plug
Sensor temperature rating -100ºC to +450 ºC
Conforms to IEC 751
Various probe available lengths
6mm diameter in 316 stainless steel
Stainless steel plug
Sensor temperature rating -50 °C to +450°C
Conforms to IEC 751
6mm diameter in 316 stainless steel
Stainless steel plug
Sensor temperature rating -50 °C to +450°C
Conforms to IEC 751
PT100 Probes with Industrial Terminal Heads
Specifications
Attribute | Value |
---|---|
Sensor Type | PT100 |
Probe Length | 200mm |
Probe Diameter | 6mm |
Minimum Temperature Sensed | -50°C |
Maximum Temperature Sensed | +450°C |
Termination Type | Connection Head |
Probe Material | Stainless Steel |
Number Of Wires | 4 |
Accuracy | Class B |
