RS PRO PT100 RTD Sensor, 6mm Dia, 300mm Long, 4 Wire, Probe, Class B +450°C Max
- RS Stock No.:
- 872-2727
- Distrelec Article No.:
- 304-03-598
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£85.09
(exc. VAT)
£102.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 5 | £85.09 |
6 - 11 | £80.83 |
12 + | £76.58 |
*price indicative
- RS Stock No.:
- 872-2727
- Distrelec Article No.:
- 304-03-598
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Sensor Type | PT100 | |
Probe Length | 300mm | |
Probe Diameter | 6mm | |
Minimum Temperature Sensed | -50°C | |
Maximum Temperature Sensed | +450°C | |
Termination Type | Compact KNS Head | |
Probe Material | Stainless Steel | |
Process Connection | Probe | |
Cable Entry Size | M16 | |
Number Of Wires | 4 | |
Accuracy | Class B | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Sensor Type PT100 | ||
Probe Length 300mm | ||
Probe Diameter 6mm | ||
Minimum Temperature Sensed -50°C | ||
Maximum Temperature Sensed +450°C | ||
Termination Type Compact KNS Head | ||
Probe Material Stainless Steel | ||
Process Connection Probe | ||
Cable Entry Size M16 | ||
Number Of Wires 4 | ||
Accuracy Class B | ||
- COO (Country of Origin):
- GB

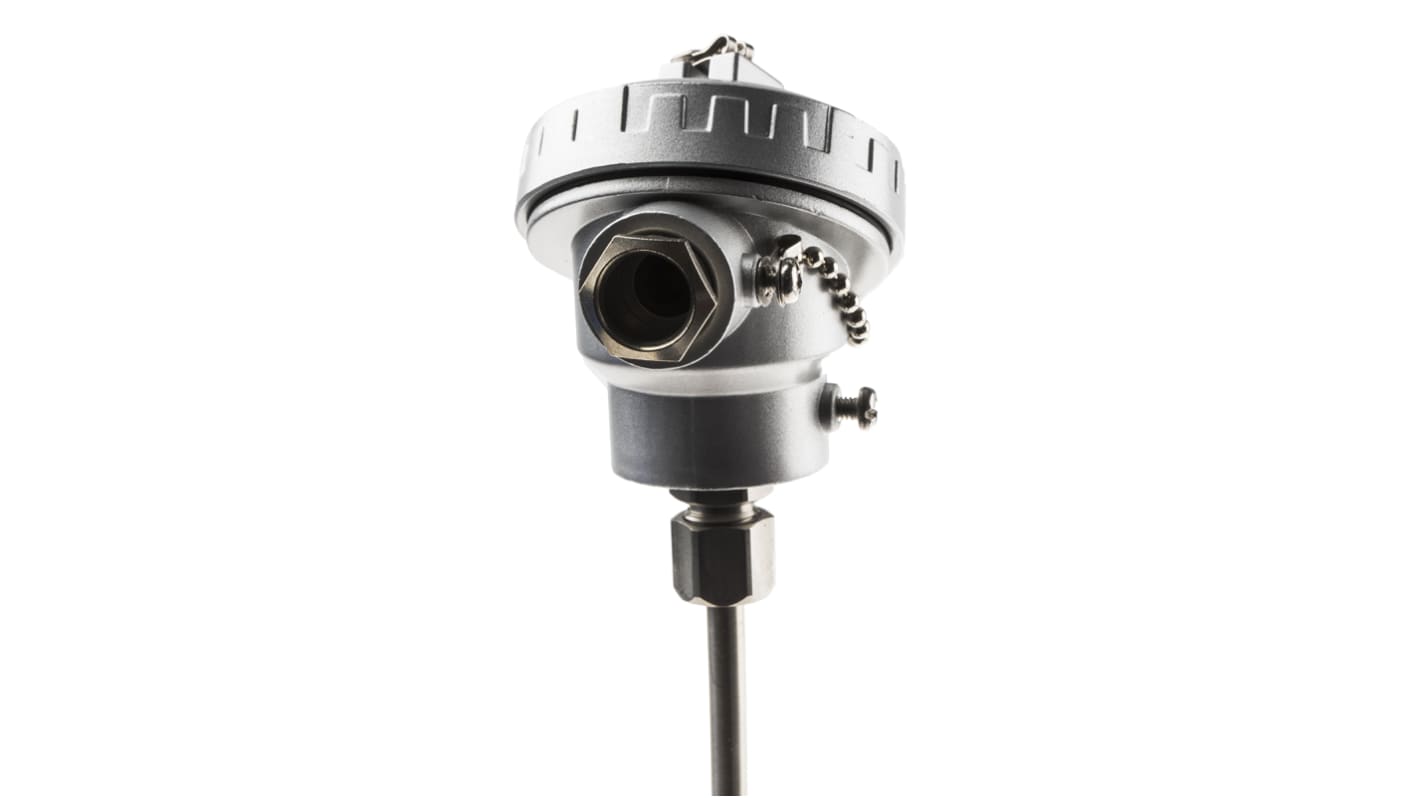

RS PRO PT100 PRT with compact KNS head
From RS PRO, comes a range of high-quality PRT (Platinum resistance thermometer) PT100 probes with compact KNS heads. Manufactured with an aluminium alloy weatherproof connection head and 316 stainless steel construction, these class B probes are an excellent solution for temperature measurement.
Features and benefits:
- A wide operating temperature range: -100 °C to +450°C
- 6mm probe diameter
- IP67 rating which provides protection from total dust ingress and immersion between 15cm and 1 meter in depth.
- 4 wire connection
- Meets IEC751 standards
Applications
These PRT probes have a variety of application use such as;
- Heating
- Air conditioning
- Stoves and grills
- Food processing
- Energy
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
A wide operating temperature range from -50 °C to +450°C
6mm probe diameter
IP67 rating which provides protection from total dust ingress and immersion between 15cm and 1 meter in depth.
4 wire connection
Meets IEC751 standards
6mm probe diameter
IP67 rating which provides protection from total dust ingress and immersion between 15cm and 1 meter in depth.
4 wire connection
Meets IEC751 standards
PT100 Probes with Industrial Terminal Heads
