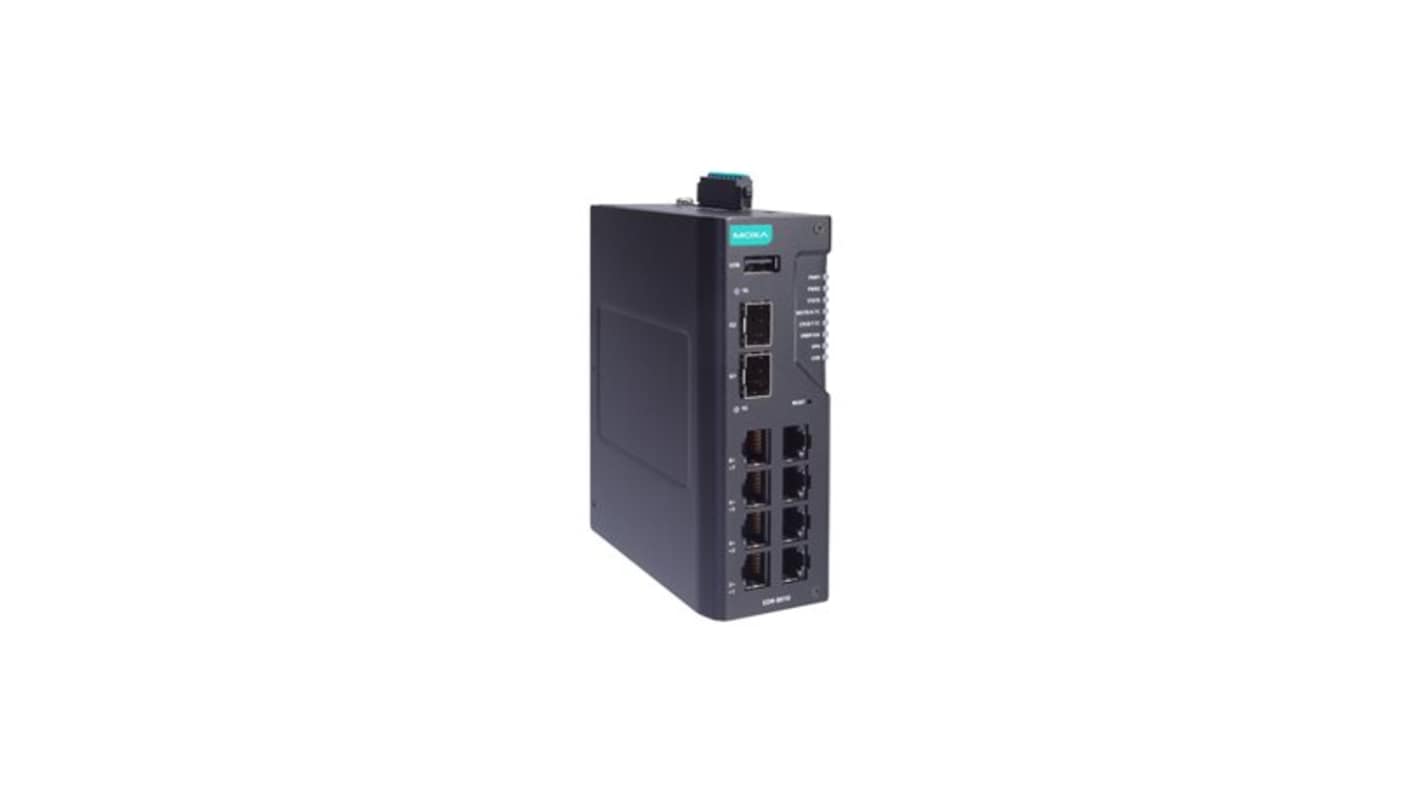

MOXA EDR-8010-2GSFP-T EDR-8010-2GSFP-T, 10 Port Removable Terminal Block
- RS Stock No.:
- 288-983
- Mfr. Part No.:
- EDR-8010-2GSFP-T
- Brand:
- MOXA
Subtotal (1 unit)*
£1,231.88
(exc. VAT)
£1,478.26
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 29 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,231.88 |
*price indicative
- RS Stock No.:
- 288-983
- Mfr. Part No.:
- EDR-8010-2GSFP-T
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Product Type | Router | |
| Transmission Speed | 2000Mbps | |
| Connection Type | Removable Terminal Block | |
| Mount Type | Wall, DIN Rail | |
| Number of Ports | 10 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Depth | 105mm | |
| Weight | 520g | |
| Width | 45 mm | |
| Series | EDR-8010-2GSFP-T | |
| Standards/Approvals | IEC 61850-3 Edition 2.0, IECEX, IEC 60068-2-32, IEC 61000-4-6, ATEX, IEC 61000-4-8, EN 50121-4, IEC 62368-1, IEC 61000-4-5, IEC 60945, IEC 61000-4-4, UL 62368-1, IEC 61000-4-3, IEC 60068-2-27, IEC 61000-4-2, Ex, NEMA, DNV, DNV IEC 61162-460, IEC 60068-2-6 | |
| Height | 135mm | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Product Type Router | ||
Transmission Speed 2000Mbps | ||
Connection Type Removable Terminal Block | ||
Mount Type Wall, DIN Rail | ||
Number of Ports 10 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Depth 105mm | ||
Weight 520g | ||
Width 45 mm | ||
Series EDR-8010-2GSFP-T | ||
Standards/Approvals IEC 61850-3 Edition 2.0, IECEX, IEC 60068-2-32, IEC 61000-4-6, ATEX, IEC 61000-4-8, EN 50121-4, IEC 62368-1, IEC 61000-4-5, IEC 60945, IEC 61000-4-4, UL 62368-1, IEC 61000-4-3, IEC 60068-2-27, IEC 61000-4-2, Ex, NEMA, DNV, DNV IEC 61162-460, IEC 60068-2-6 | ||
Height 135mm | ||
- COO (Country of Origin):
- TW
The Moxa Europe Industrial secure router offers 8 FE copper ports and 2 GbE SFP ports, providing robust firewall/NAT protection. It features an IP40 rating for protection against dust and solid objects, with DIN-rail and wall mounting options for flexible installation.
Wide operating temperature range
Designed for industrial and harsh environments
Easy installation and maintenance
