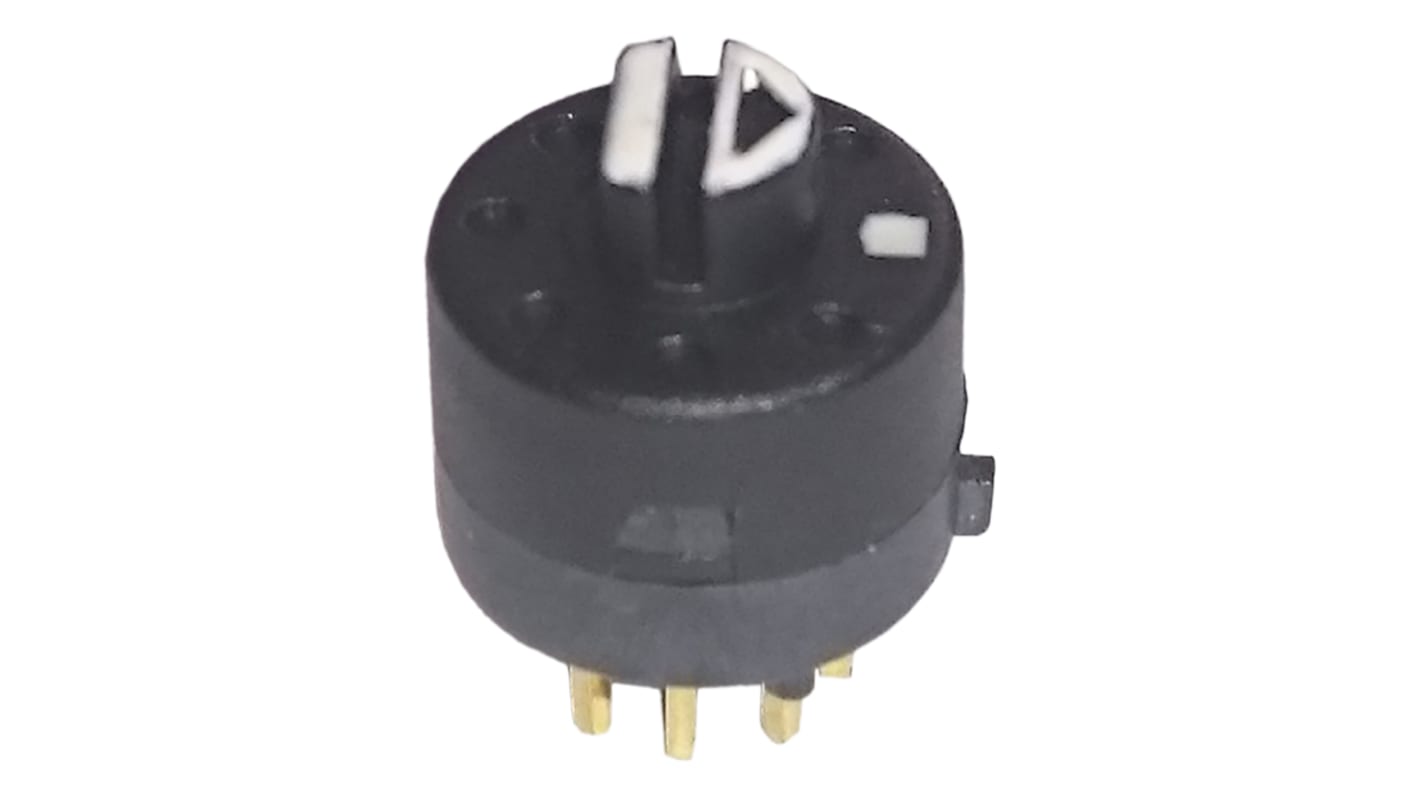

Lorlin, 5 Position SP5T Rotary Switch, 500 mA, PCB Pin
- RS Stock No.:
- 899-8536
- Mfr. Part No.:
- MTS-11-50
- Brand:
- Lorlin
Subtotal (1 unit)*
£5.30
(exc. VAT)
£6.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.30 |
*price indicative
- RS Stock No.:
- 899-8536
- Mfr. Part No.:
- MTS-11-50
- Brand:
- Lorlin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lorlin | |
| Contact Configuration | SP5T | |
| Contact Current Rating | 500 mA | |
| Number of Switch Positions | 5 | |
| Number of Contacts | 8 | |
| Voltage Rating | 24V ac/dc | |
| Diameter | 9.2mm | |
| Dimensions | 9.2 (Dia.) x 6.47mm | |
| Mounting Type | PCB | |
| Mounting Hole Size | 0.76mm | |
| Terminal Type | PCB Pin | |
| Case Material | Glass Filled Polyester PBT | |
| Contact Material | Gold Plated Brass | |
| Height | 6.47mm | |
| Minimum Operating Temperature | -30°C | |
| Actuator Colour | Black | |
| Contact Type | Shorting | |
| Mechanical Life | >5000Cycles | |
| Maximum Operating Temperature | +65°C | |
| Angle of Throw | 180° | |
Select all | ||
|---|---|---|
Brand Lorlin | ||
Contact Configuration SP5T | ||
Contact Current Rating 500 mA | ||
Number of Switch Positions 5 | ||
Number of Contacts 8 | ||
Voltage Rating 24V ac/dc | ||
Diameter 9.2mm | ||
Dimensions 9.2 (Dia.) x 6.47mm | ||
Mounting Type PCB | ||
Mounting Hole Size 0.76mm | ||
Terminal Type PCB Pin | ||
Case Material Glass Filled Polyester PBT | ||
Contact Material Gold Plated Brass | ||
Height 6.47mm | ||
Minimum Operating Temperature -30°C | ||
Actuator Colour Black | ||
Contact Type Shorting | ||
Mechanical Life >5000Cycles | ||
Maximum Operating Temperature +65°C | ||
Angle of Throw 180° | ||
Subminiature TO-5 Rotary Switch
Compact rotary switch in a convenient 9.2mm diameter TO-5 package
High current rating for size (500mA @ 24Vdc)
Ideal for isolating applications
45° indexing, positive action
Available in flush slot or spindle-operated versions
Single pole up to 7 break-before-make positions + NC
Mechanical life >5000 operations
Operating temperature -30°C to +65°C (MTS -20°C to +65 °C)
Contact resistance <100 mohms
Contact material brass CZ108 Au plated
High current rating for size (500mA @ 24Vdc)
Ideal for isolating applications
45° indexing, positive action
Available in flush slot or spindle-operated versions
Single pole up to 7 break-before-make positions + NC
Mechanical life >5000 operations
Operating temperature -30°C to +65°C (MTS -20°C to +65 °C)
Contact resistance <100 mohms
Contact material brass CZ108 Au plated
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
