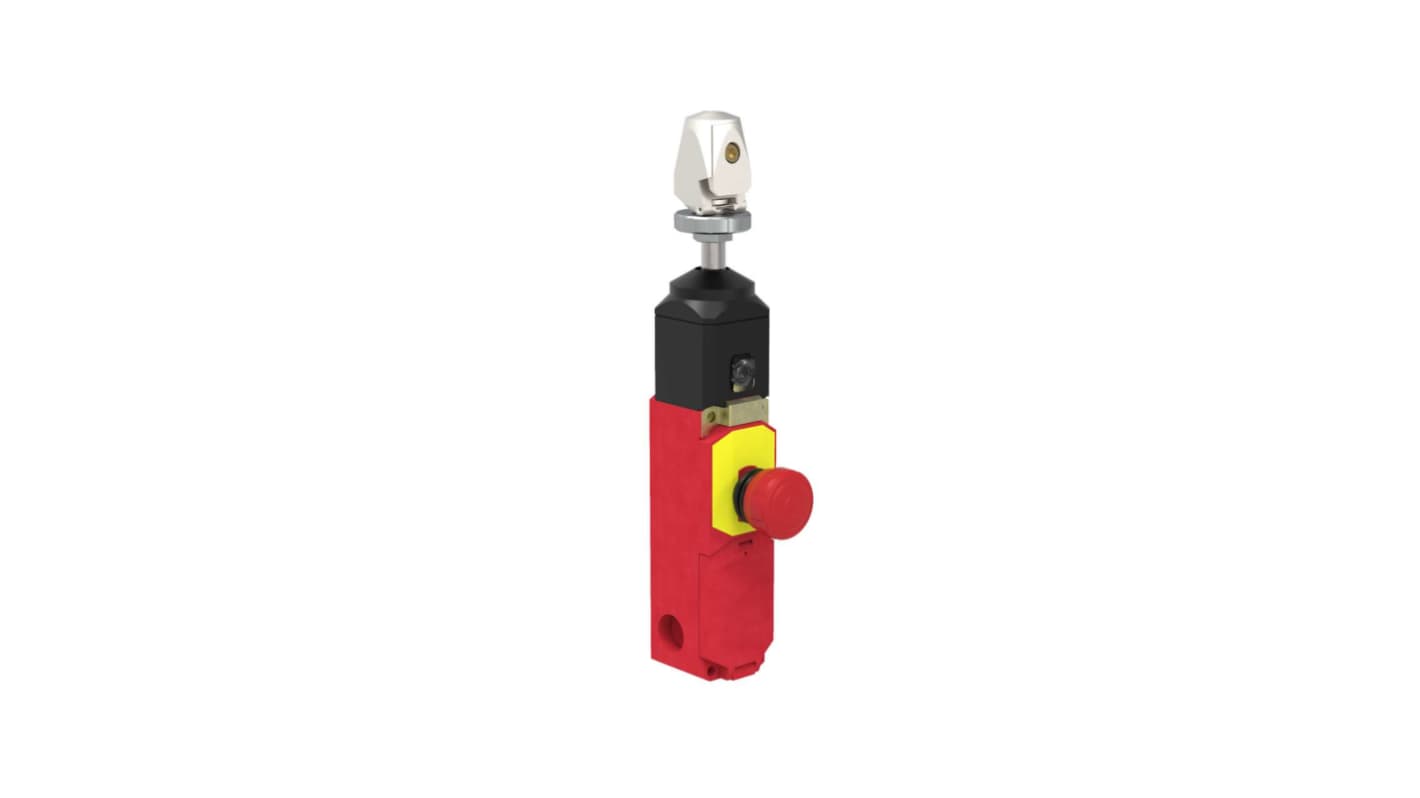

Banner RP-LS42F Rope Pull Switch 124 mm, 2 NO/2 NC

View all Rope Pull Switches

Subtotal (1 unit)*

£394.12

(exc. VAT)

£472.94

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£394.12

*price indicative

RS Stock No.:
331-142
Mfr. Part No.:
RP-LS42F-75LE
Brand:
Banner
Find similar products by selecting one or more attributes.
Select all

Brand

Banner

Product Type

Rope Pull Switch

Contact Configuration

2 NO/2 NC

IP Rating

IP67

Number of Cable Entries

3

Series

RP-LS42F

E-Stop Button

Yes

Reset Button

Yes

Minimum Operating Temperature

-25°C

Contact AC Voltage

240V ac

Contact Current

3A

Maximum Operating Temperature

70°C

Width

76.8 mm

Depth

42.5mm

Standards/Approvals

ISO 13850, IEC 60947-5-5, VDE 0660 T100, IEC 60947-5-1, DIN EN 60947-5-5, CCSAUS A300, EU-Conformity 2006/42/EC, IEC/EN 60204-1, VDE 0660 T200, DGUV, VDE 0660 T210, IEC 60947-1, NFPA 79, DIN EN 60947-1, DIN EN 60947-5-1, ANSI B11.19

Length

124mm

Housing Material

Polyamide

Hazardous Area Certification

No

Mechanical Life

100000Cycles

Conduit Entry

M20 x 1.5

COO (Country of Origin):
DE
The Banner Rope pull emergency stop switch offers a robust solution for industrial safety applications, ensuring seamless emergency stop operation with minimal effort. Designed for demanding environments, it features a heavy-duty thermoplastic housing rated IP67, making it ideal for a variety of installations. The innovative quick-connect design allows for straightforward rope fixing and tensioning, enhancing the overall efficiency of your safety measures.

Easily accessible reset button ensuring quick recovery after activation

Positiveopening safety contacts ensure reliable operation

Designed for use with steel wire rope for extended reach
