INA NKXR25-Z-XL Needle 25 mm ID Roller Bearing, 37 mm OD
- RS Stock No.:
- 260-0650
- Mfr. Part No.:
- NKXR25-Z-XL
- Brand:
- INA
Subtotal (1 unit)*
£116.39
(exc. VAT)
£139.67
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £116.39 |
*price indicative
- RS Stock No.:
- 260-0650
- Mfr. Part No.:
- NKXR25-Z-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 25mm | |
| Bore Type | Parallel | |
| Outside Diameter | 37mm | |
| Limiting Speed | 8500rpm | |
| Dynamic Load Rating | 33500N | |
| Standards/Approvals | DIN 5429 | |
| Series | NKXR..-Z | |
| Static Load Rating | 30500N | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 25mm | ||
Bore Type Parallel | ||
Outside Diameter 37mm | ||
Limiting Speed 8500rpm | ||
Dynamic Load Rating 33500N | ||
Standards/Approvals DIN 5429 | ||
Series NKXR..-Z | ||
Static Load Rating 30500N | ||
Bearing Type Needle | ||
RoHS Status: Exempt

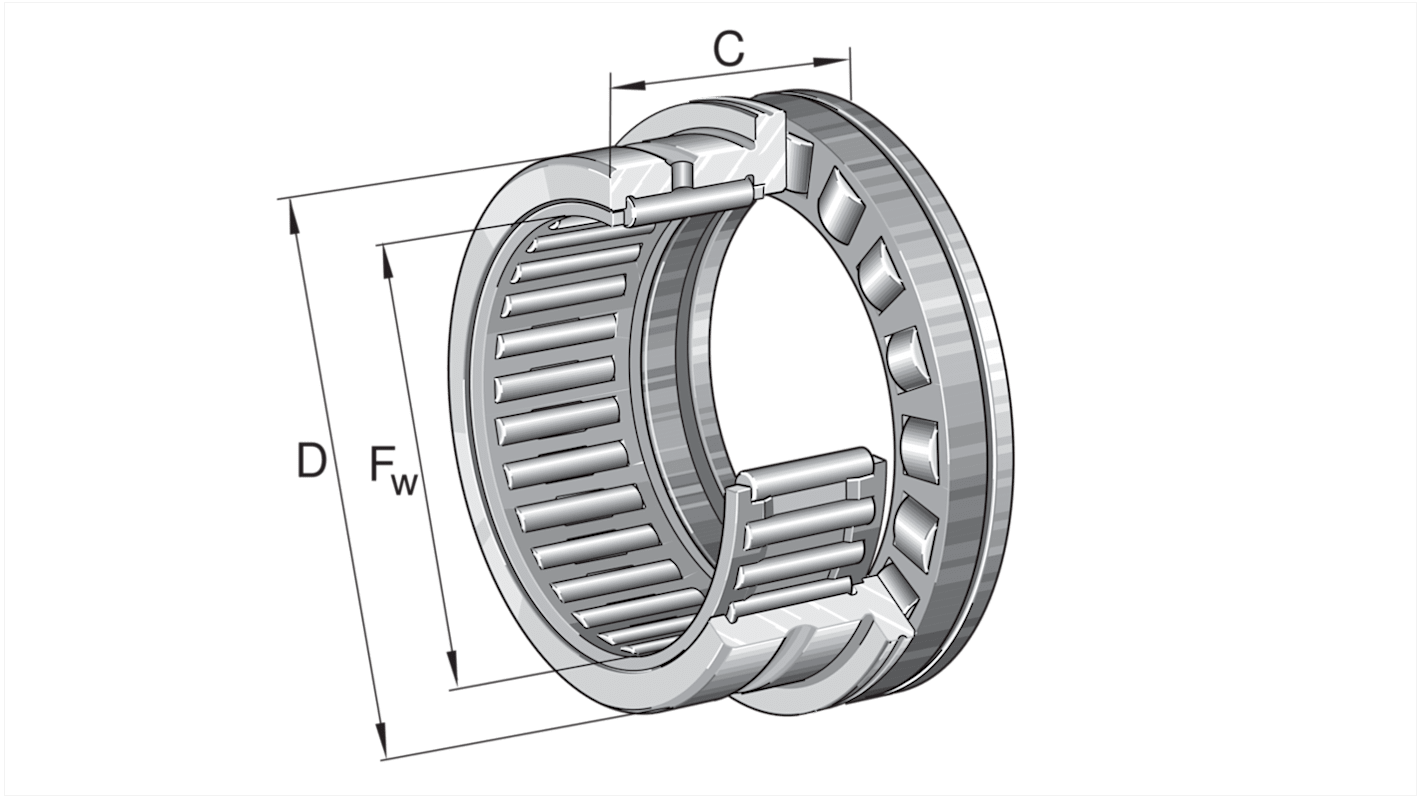

The INA needle roller/axial cylindrical roller bearings NKXR..-Z, axial component. It has single direction with end cap, for grease lubrication.
Operating temperature minimum -30 °C
Operating temperature maximum 120 °C
