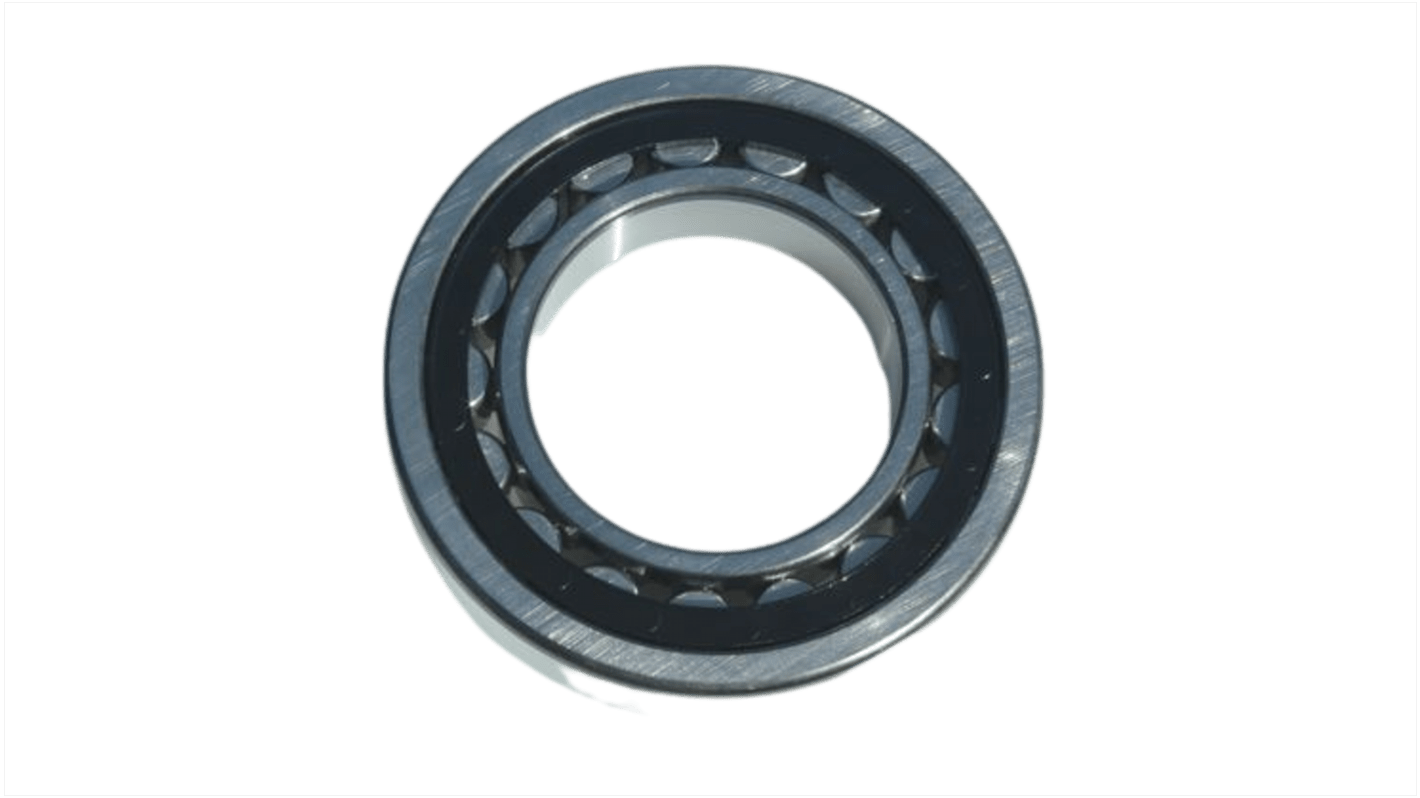

RS PRO NU316-E-TVP3 80 mm I.D Roller Bearing, 170 mm O.D
- RS Stock No.:
- 248-3017
- Mfr. Part No.:
- NU316-E-TVP3
- Brand:
- RS PRO
Subtotal (1 unit)*
£202.82
(exc. VAT)
£243.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £202.82 |
*price indicative
- RS Stock No.:
- 248-3017
- Mfr. Part No.:
- NU316-E-TVP3
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 39mm | |
| Bore Type | Parallel | |
| Cage Material | Fibreglass Reinforced Polyamide | |
| Roller Material | Steel | |
| Standards/Approvals | RoHS | |
| Number of Rows | 1 | |
| Static Load Rating | 289kN | |
| Outside Diameter | 170 mm | |
| Limiting Speed | 5000rpm | |
| Dynamic Load Rating | 290kN | |
| Race Type | Cylindrical | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 39mm | ||
Bore Type Parallel | ||
Cage Material Fibreglass Reinforced Polyamide | ||
Roller Material Steel | ||
Standards/Approvals RoHS | ||
Number of Rows 1 | ||
Static Load Rating 289kN | ||
Outside Diameter 170 mm | ||
Limiting Speed 5000rpm | ||
Dynamic Load Rating 290kN | ||
Race Type Cylindrical | ||
- COO (Country of Origin):
- AT
RS PRO Cylindrical Roller Baring
Introducing this range of RS Pro single row Cylindrical Roller Bearings, offering versatility and overall high performance. These RS PRO Cylindrical Roller bearings have been designed with the highest quality and versatility in mind and thus utilise either a Polyamide or Brass cage and optimised internal geometry to ensure adequate operation
Features and Benefits
Single row cylindrical roller bearing
Applications
RS PRO Roller bearings can be widely used across industry, assisting with the movement and mobilization of machinery. They are frequently found in environments such as aviation cargo systems, manufacturing, aerospace, automobile industry, power houses and numerous other applications.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
