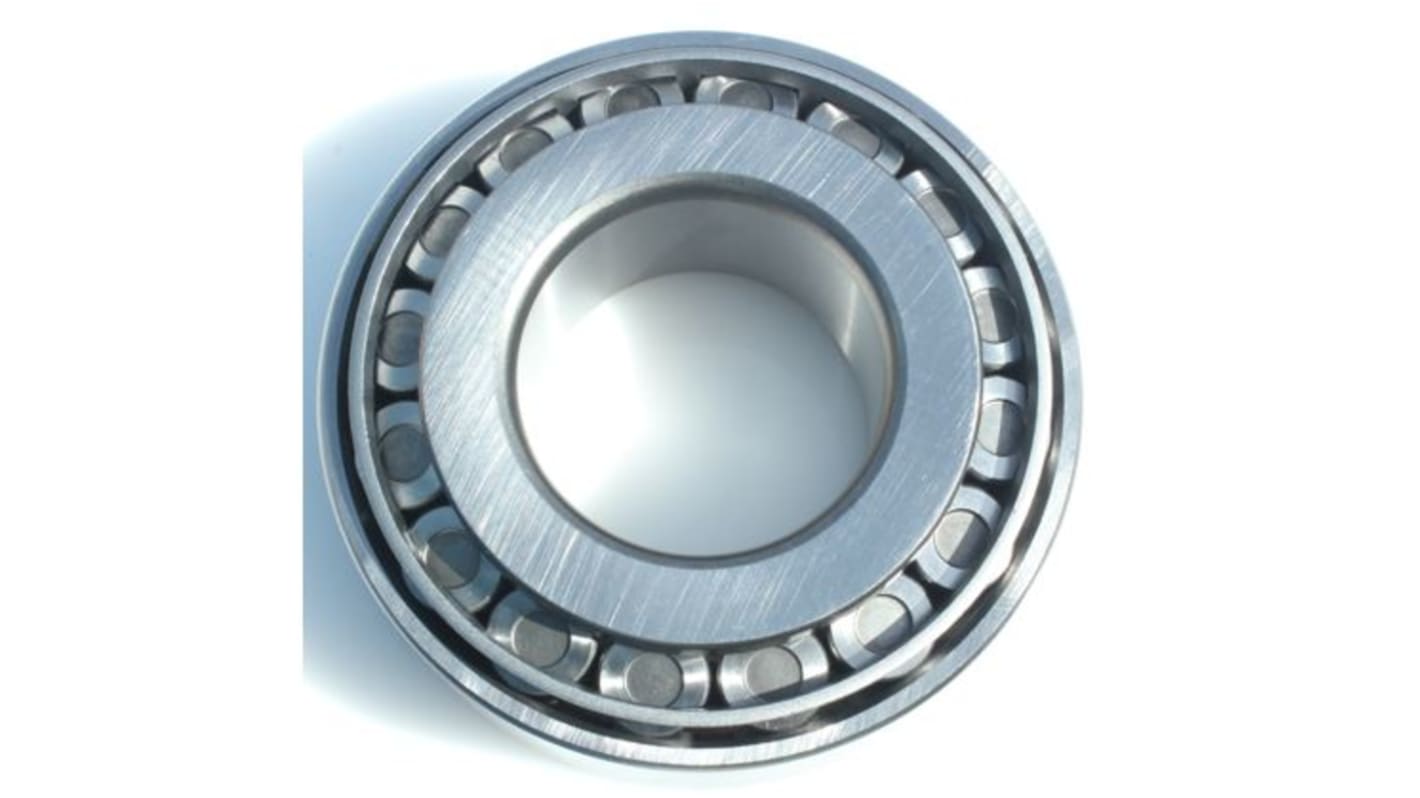

RS PRO 32309 Taper 45 mm ID Roller Bearing, 100 mm OD
- RS Stock No.:
- 248-2857
- Mfr. Part No.:
- 32309
- Brand:
- RS PRO
Subtotal (1 unit)*
£39.76
(exc. VAT)
£47.71
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.76 |
*price indicative
- RS Stock No.:
- 248-2857
- Mfr. Part No.:
- 32309
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Roller Bearing | |
| Inside Diameter | 45mm | |
| Bore Type | Tapered | |
| Roller Material | Steel | |
| Cage Material | Stainless Steel | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 7000rpm | |
| Cone Width | 38mm | |
| Bearing Dynamic Load Rating | 145kN | |
| Static Load Rating | 185kN | |
| Number of Rows | 1 | |
| End Type | Open | |
| Cup Width | 30mm | |
| Outside Diameter | 100mm | |
| Bearing Material | Steel | |
| Race Type | Cylindrical | |
| Bearing Type | Taper | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Roller Bearing | ||
Inside Diameter 45mm | ||
Bore Type Tapered | ||
Roller Material Steel | ||
Cage Material Stainless Steel | ||
Standards/Approvals RoHS | ||
Limiting Speed 7000rpm | ||
Cone Width 38mm | ||
Bearing Dynamic Load Rating 145kN | ||
Static Load Rating 185kN | ||
Number of Rows 1 | ||
End Type Open | ||
Cup Width 30mm | ||
Outside Diameter 100mm | ||
Bearing Material Steel | ||
Race Type Cylindrical | ||
Bearing Type Taper | ||
RS PRO Tapered Roller Baring
Introducing this range of RS Pro single row Tapered Roller Bearings, offering versatility and overall high performance. These RS PRO Tapered Roller bearings have been designed with the highest quality and versatility in mind and thus utilise a high strength steel cage and optimised internal geometry to ensure adequate operation.
Features and Benefits
Pressed steel cage
Applications
RS PRO Roller bearings can be widely used across industry, assisting with the movement and mobilization of machinery. They are frequently found in environments such as aviation cargo systems, manufacturing, aerospace, automobile industry, power houses and numerous other applications.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
