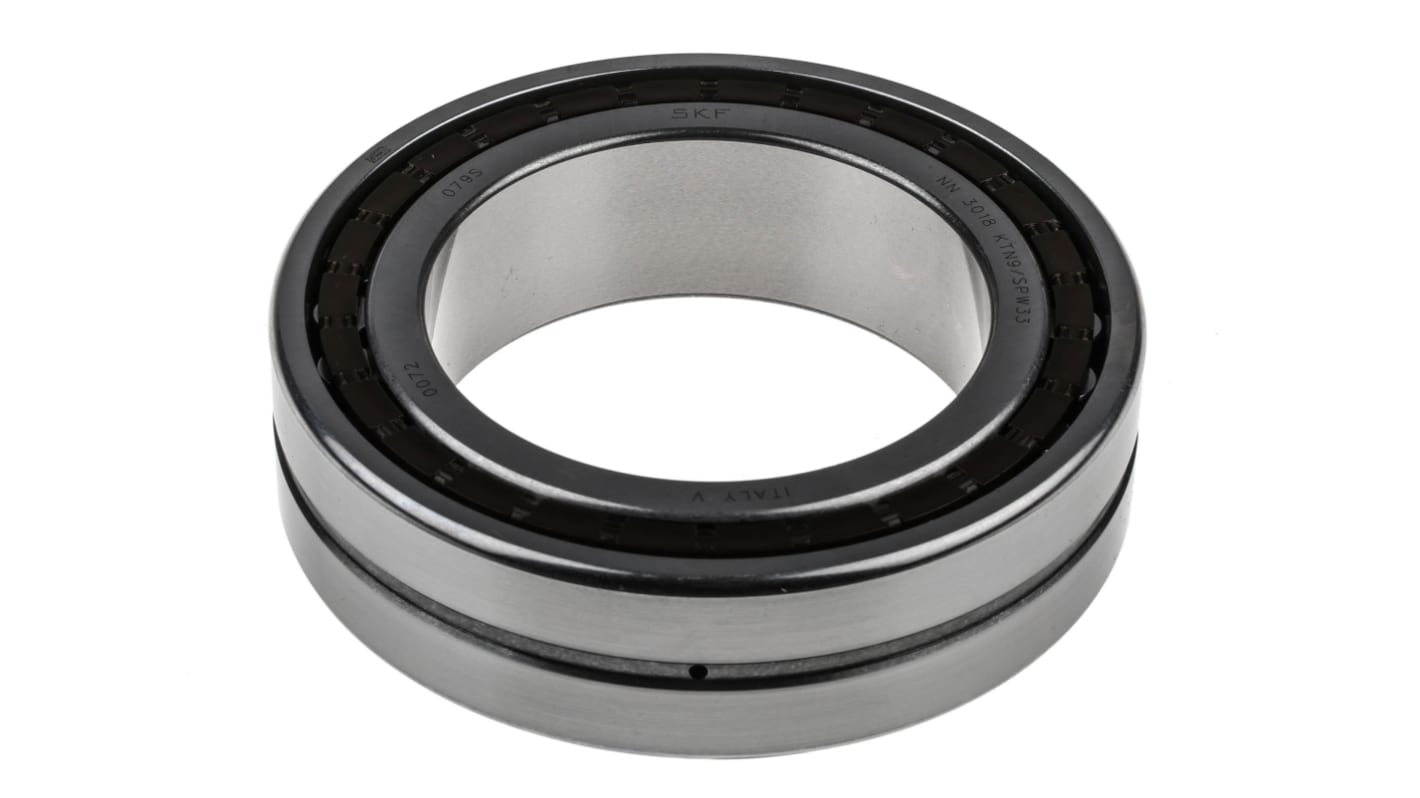

SKF NN 3018 KTN9/SPW33 Tapered 1:12 90 mm ID Roller Bearing, 140 mm OD
- RS Stock No.:
- 233-7216
- Mfr. Part No.:
- NN 3018 KTN9/SPW33
- Brand:
- SKF
Subtotal (1 unit)*
£762.50
(exc. VAT)
£915.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £762.50 |
*price indicative
- RS Stock No.:
- 233-7216
- Mfr. Part No.:
- NN 3018 KTN9/SPW33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 90mm | |
| Race Width | 37mm | |
| Bore Type | Tapered 1:12 | |
| Roller Material | Steel | |
| Cage Material | Non-Metallic | |
| Standards/Approvals | No | |
| Series | NN 30 | |
| Maximum Speed - Oil | 7000rpm | |
| Maximum Speed - Grease | 6300rpm | |
| Bearing Material | Steel | |
| Number of Rows | 2 | |
| Static Load Rating | 216kN | |
| Internal Clearance | C1 | |
| Outside Diameter | 140mm | |
| Dynamic Load Rating | 138kN | |
| Race Type | Flanged | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 90mm | ||
Race Width 37mm | ||
Bore Type Tapered 1:12 | ||
Roller Material Steel | ||
Cage Material Non-Metallic | ||
Standards/Approvals No | ||
Series NN 30 | ||
Maximum Speed - Oil 7000rpm | ||
Maximum Speed - Grease 6300rpm | ||
Bearing Material Steel | ||
Number of Rows 2 | ||
Static Load Rating 216kN | ||
Internal Clearance C1 | ||
Outside Diameter 140mm | ||
Dynamic Load Rating 138kN | ||
Race Type Flanged | ||
- COO (Country of Origin):
- IT
The SKF Roller Bearings comes with Metric type measurement system and 0° nominal contact angle. This roller bearing comes with 55mm bore diameter, 120mm outside diameter and 43mm width.
Cylindrical bore type
Bearing steel bearing material
