SKF 29422 E 110mm I.D Spherical Roller Bearing, 230mm O.D
- RS Stock No.:
- 209-4141
- Mfr. Part No.:
- 29422 E
- Brand:
- SKF
Subtotal (1 unit)*
£1,730.19
(exc. VAT)
£2,076.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,730.19 |
*price indicative
- RS Stock No.:
- 209-4141
- Mfr. Part No.:
- 29422 E
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 110mm | |
Outside Diameter | 230mm | |
Roller Bearing Type | Spherical | |
Race Width | 47mm | |
Bore Type | Tapered | |
Static Load Rating | 3000kN | |
Number of Rows | 1 | |
Roller Material | Steel | |
Dynamic Load Rating | 1180kN | |
End Type | Open | |
Reference Speed | 1600rpm | |
Limiting Speed | 2800rpm | |
Fatigue Limit Load | 325kN | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 110mm | ||
Outside Diameter 230mm | ||
Roller Bearing Type Spherical | ||
Race Width 47mm | ||
Bore Type Tapered | ||
Static Load Rating 3000kN | ||
Number of Rows 1 | ||
Roller Material Steel | ||
Dynamic Load Rating 1180kN | ||
End Type Open | ||
Reference Speed 1600rpm | ||
Limiting Speed 2800rpm | ||
Fatigue Limit Load 325kN | ||
- COO (Country of Origin):
- SE

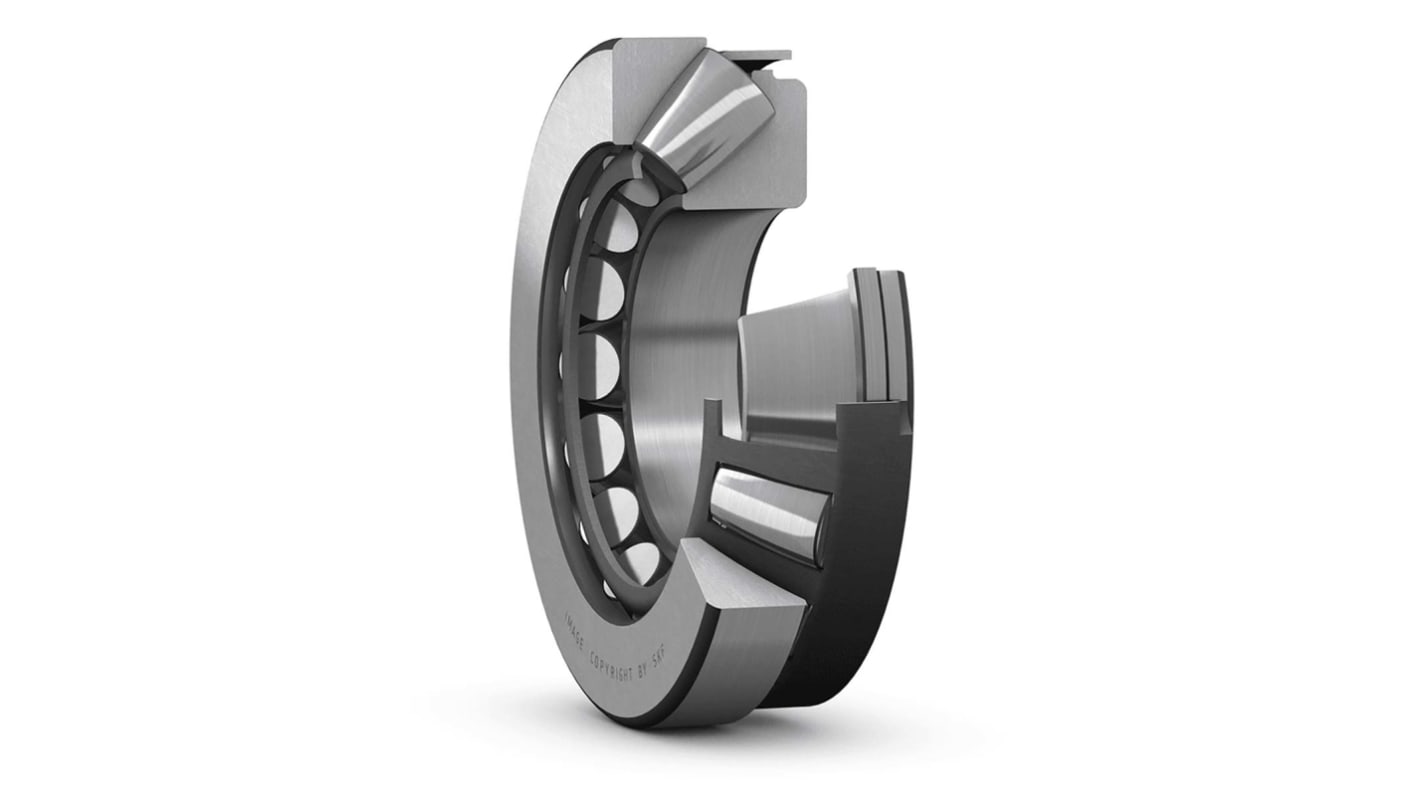

SKF Spherical Roller Bearing, 110 mm ID, 230 mm OD - 29422 E
If you need to handle axial loads in one direction and simultaneous radial loads, go for this spherical roller thrust bearing from SKF. It has a specially designed raceway and asymmetrical rollers at an angle to the axis, with a flange to guide the rollers. This transmits the radial load toward the axis, allowing the unit to cope with loads from both directions at once. As this unit has separable, interchangeable parts, so you can mount and dismount the housing washer separately from the shaft washer and roller and cage assembly. This makes maintenance and inspection routines quicker and easier.
• Tapered bore type for radial and axial loads
• Compact structure
• High precision and accommodation of angular misalignment
• Inside diameter of 110 mm
• Outside diameter of 230 mm
• Race width of 47 mm
• Compact structure
• High precision and accommodation of angular misalignment
• Inside diameter of 110 mm
• Outside diameter of 230 mm
• Race width of 47 mm
Application Information
• Industrial fans
• Wind turbines
• Mining and mineral processing
• Paper production
• Wind turbines
• Mining and mineral processing
• Paper production
Does this bearing have a long service life?
This bearing is part of SKF's upgraded Explorer series, so it has a robust build and is made from highly wear-resistant materials. It's also designed to produce low friction and run accurately at high speeds. This makes for a long service life with minimal maintenance.
