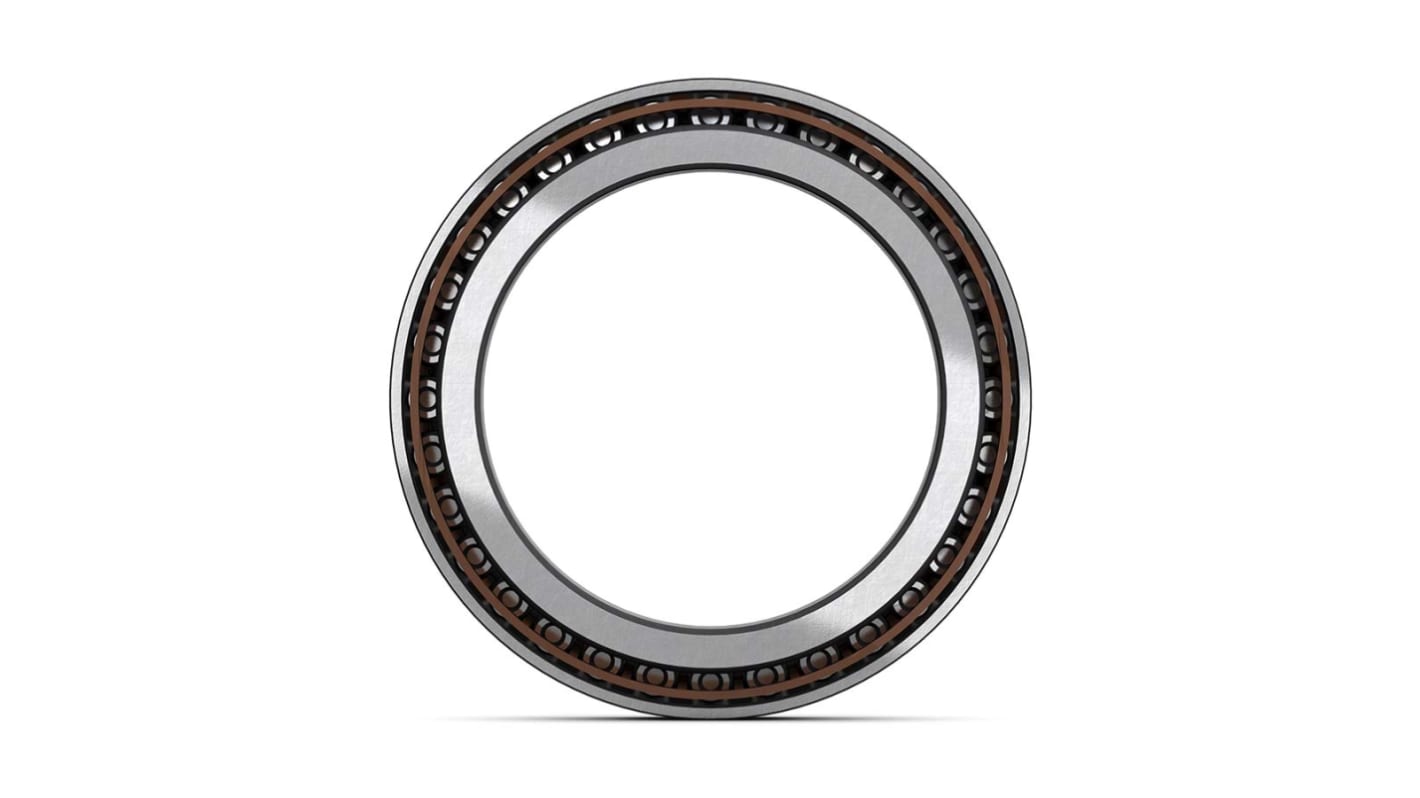

SKF 32313 BJ2/QU4CL7CVQ267 Taper 60 mm I.D Roller Bearing, 140 mm O.D
- RS Stock No.:
- 208-0068
- Mfr. Part No.:
- 32313 BJ2/QU4CL7CVQ267
- Brand:
- SKF
Subtotal (1 unit)*
£322.35
(exc. VAT)
£386.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £322.35 |
*price indicative
- RS Stock No.:
- 208-0068
- Mfr. Part No.:
- 32313 BJ2/QU4CL7CVQ267
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 60 mm | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Bearing Dynamic Load Rating | Basic dynamic load rating C 305 kN | |
| End Type | Shielded | |
| Outside Diameter | 140 mm | |
| Limiting Speed | 4800rpm | |
| Cone Width | 51mm | |
| Series | 32313 B SKF Explorer | |
| Static Load Rating | 345kN | |
| Cup Width | 39mm | |
| Number of Rows | 1 | |
| Bearing Type | Taper | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 60 mm | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Bearing Dynamic Load Rating Basic dynamic load rating C 305 kN | ||
End Type Shielded | ||
Outside Diameter 140 mm | ||
Limiting Speed 4800rpm | ||
Cone Width 51mm | ||
Series 32313 B SKF Explorer | ||
Static Load Rating 345kN | ||
Cup Width 39mm | ||
Number of Rows 1 | ||
Bearing Type Taper | ||
- COO (Country of Origin):
- DE
The SKF single row tapered roller bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The size of the contact angle, which is usually between 10° and 30°, is related to the calculation factor e the larger the value of e, the larger the contact angle.
Low friction
Enhanced operational reliability
Rigid bearing application
A single row tapered roller bearing is typically adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved.
Running-in period with reduced temperature peaks
Separable and interchangeable
The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). Furthermore, the separable components (fig. 6) are interchangeable. This facilitates mounting, dismounting and also maintenance inspection routines.
