- RS Stock No.:
- 208-0041
- Mfr. Part No.:
- 32209
- Brand:
- SKF
16 In stock - FREE next working day delivery available
Added
Price Each
£24.46
(exc. VAT)
£29.35
(inc. VAT)
Units | Per unit |
1 + | £24.46 |
- RS Stock No.:
- 208-0041
- Mfr. Part No.:
- 32209
- Brand:
- SKF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

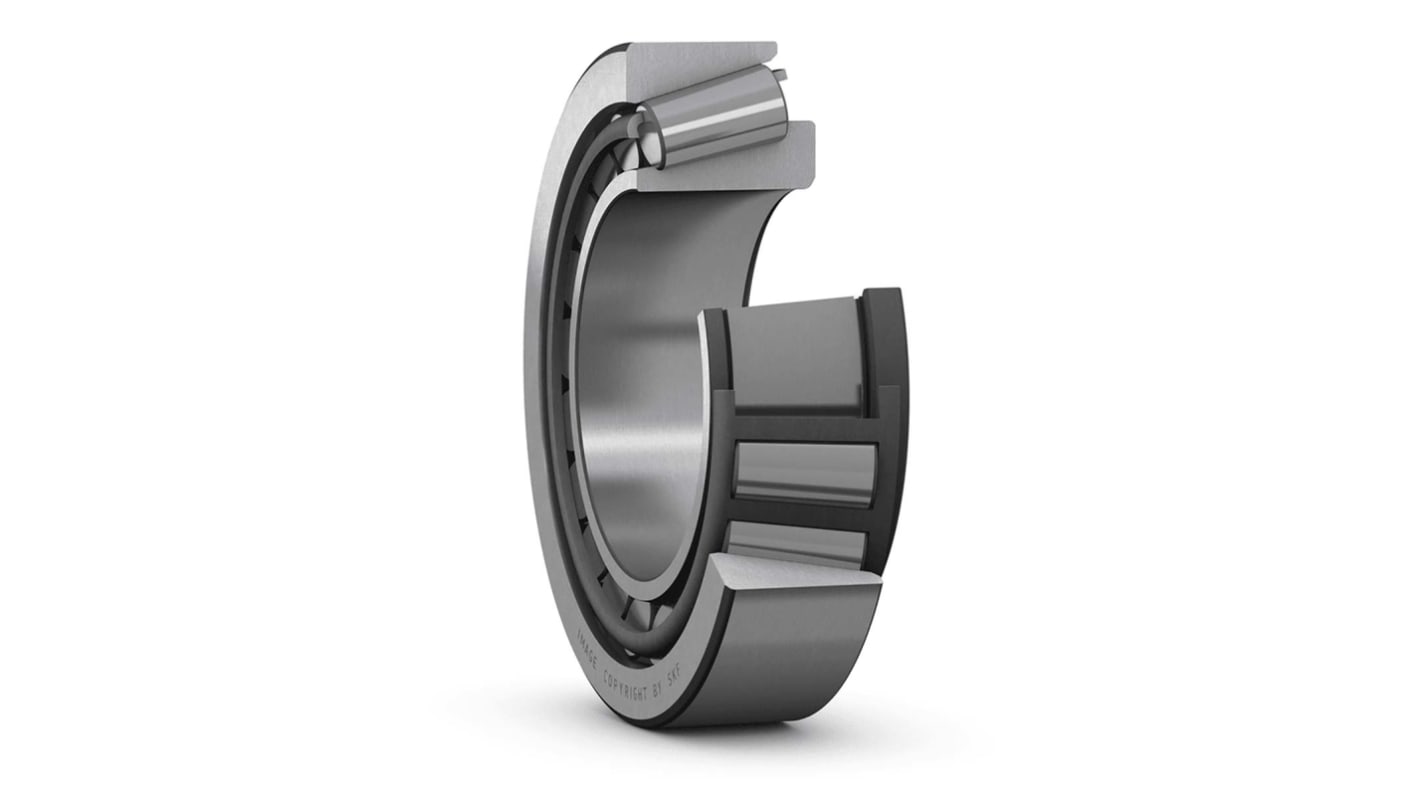

SKF Roller Bearing, 45mm ID, 85mm OD, Parallel Bore Type, 24.75mm Race Width - 32209
When you need to keep your machinery running smoothly under simultaneous axial and radial loads, trust this roller bearing from SKF to shoulder the strain. It's a tapered bearing suitable for use with propellers, axles and shafts – the conical shape means less stress is put on mechanical parts. Friction is kept low by converging projection lines on the raceways, which keep things moving as they should with low wear and tear. As the bearing tips the scales at just 0.58kg, it doesn't add a lot of extra weight to your setup.
Features & Benefits
• Single-row configuration suitable for high-speed applications
• Parallel bore achieves precise alignment and copes well with misalignments
• Rigid bearing application can be achieved by mounting against another bearing
• Static load rating of 98kN, ideal for heavy-duty tasks
• Cage is made of sheet metal for durability
• Parallel bore achieves precise alignment and copes well with misalignments
• Rigid bearing application can be achieved by mounting against another bearing
• Static load rating of 98kN, ideal for heavy-duty tasks
• Cage is made of sheet metal for durability
Applications
• Glassworks
• Automotive manufacturing
• Aerospace engineering
• Automotive manufacturing
• Aerospace engineering
What's the limiting speed of this roller bearing?
It has a limiting speed of 8000r/min and a reference speed of 6300r/min, so is just the job for mid-paced applications.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 45mm |
Outside Diameter | 85mm |
Roller Bearing Type | Taper |
Race Width | 24.75mm |
Bore Type | Parallel |
Static Load Rating | 98kN |
Cage Material | Sheet Metal |
Number of Rows | 1 |
Dynamic Load Rating | 98.7kN |
End Type | Open |
Limiting Speed | 8000rpm |
Reference Speed | 6300rpm |
Fatigue Limit Load | 11kN |
